SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Limited

Fujitsu SPARC Enterprise M9000

CPU2006 license: 19 Test date: Apr-2007
Test sponsor: Fujitsu Limited Hardware Availability: Apr-2007
Tested by: Sun Microsystems Software Availability: Jul-2007

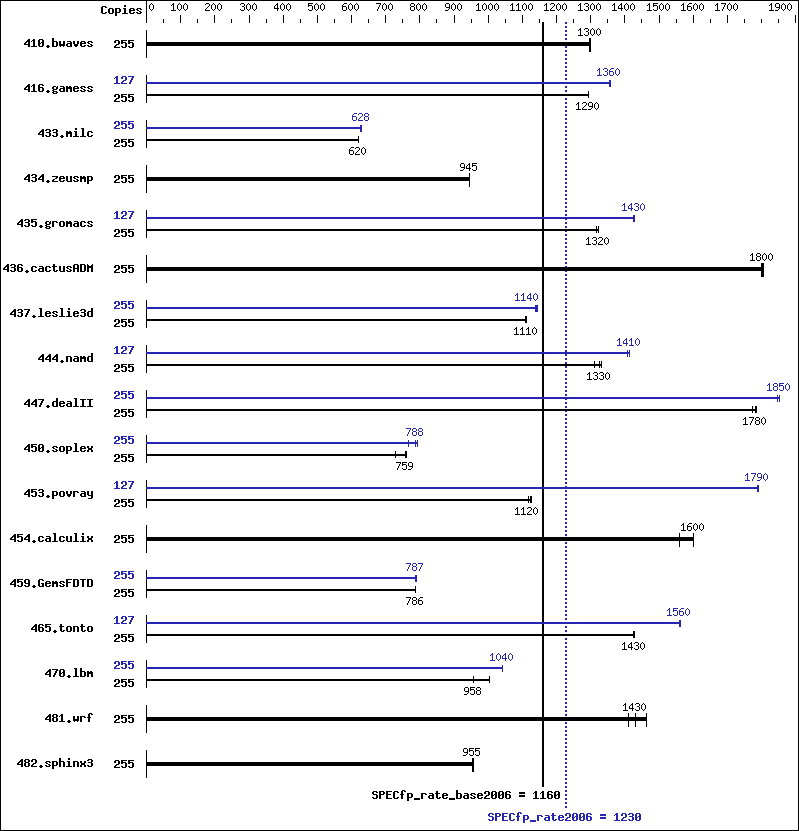

Benchmark results graph
Hardware
CPU Name: SPARC64 VI
CPU Characteristics:
CPU MHz: 2400
FPU: Integrated
CPU(s) enabled: 128 cores, 64 chips, 2 cores/chip, 2 threads/core
CPU(s) orderable: 1 to 16 CMUs; each CMU contains 2 or 4 chips
Primary Cache: 128 KB I + 128 KB D on chip per core
Secondary Cache: 6 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 1 TB (512 x 2 GB)
Disk Subsystem: 792 GB RAID 1+0 created by Solaris
Volume Manager with 24 x 73 GB
10,000 RPM Fujitsu MAY2073RC SAS
Other Hardware: None
Software
Operating System: Solaris 10 7/07 (build s10s_u4wos_03)
Compiler: Sun Studio 12 (build 44.0)
Auto Parallel: No
File System: ufs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 255 2675 1300 2665 1300 2666 1300 255 2675 1300 2665 1300 2666 1300
416.gamess 255 3862 1290 3861 1290 3863 1290 127 1836 1350 1834 1360 1832 1360
433.milc 255 3769 621 3775 620 3774 620 255 3726 628 3731 627 3729 628
434.zeusmp 255 2457 945 2456 945 2456 945 255 2457 945 2456 945 2456 945
435.gromacs 255 1376 1320 1382 1320 1376 1320 127 635 1430 636 1430 636 1430
436.cactusADM 255 1689 1800 1694 1800 1688 1810 255 1689 1800 1694 1800 1688 1810
437.leslie3d 255 2157 1110 2160 1110 2158 1110 255 2099 1140 2095 1140 2106 1140
444.namd 255 1558 1310 1543 1330 1536 1330 127 723 1410 721 1410 721 1410
447.dealII 255 1635 1780 1637 1780 1646 1770 255 1580 1850 1575 1850 1575 1850
450.soplex 255 2921 728 2804 759 2794 761 255 2772 767 2697 788 2684 792
453.povray 255 1206 1120 1204 1130 1215 1120 127 378 1790 378 1790 377 1790
454.calculix 255 1350 1560 1315 1600 1314 1600 255 1350 1560 1315 1600 1314 1600
459.GemsFDTD 255 3443 786 3440 787 3440 786 255 3438 787 3428 789 3442 786
465.tonto 255 1756 1430 1759 1430 1756 1430 127 802 1560 802 1560 800 1560
470.lbm 255 3488 1000 3656 958 3658 958 255 3359 1040 3363 1040 3363 1040
481.wrf 255 2017 1410 1948 1460 1991 1430 255 2017 1410 1948 1460 1991 1430
482.sphinx3 255 5199 956 5204 955 5202 955 255 5199 956 5204 955 5202 955

Operating System Notes


Processes were bound to cores using "submit" and "pbind".
The SPEC toolset was bound to processor 0.

These shell commands request use of local 4MB pages:
      export LD_PRELOAD=madv.so.1:mpss.so.1
      export MPSSHEAP=4MB
      export MPSSSTACK=4MB
      export MADV=access_lwp
'access_lwp' means that the next light weight
process to touch the specified address range
will access it the most heavily.

ulimit -s 131072 was used to limit the space
consumed by the stack (and therefore make more
space available to the heap).

 /etc/system parameters
    autoup=300
       Causes pages older than the listed number of seconds to
       be written by fsflush.
    bufhwm=3000
       Memory byte limit for caching I/O buffers
    segmap_percent=1
       Set maximum percent memory for file system cache
    tune_t_fsflushr=3
       Controls how many seconds elapse between runs of the
       page flush daemon, fsflush.

 The "webconsole" service was turned off using
     svcadm disable webconsole

Platform Notes


"CMU" = CPU/Memory Unit; each holds 2 or 4 CPU chips.

Memory was 8-way interleaved by filling all slots with
the same capacity DIMMs.

This result was measured using a Sun SPARC Enterprise
M9000 Server.  Note that the Fujitsu SPARC Enterprise
M9000 and Sun SPARC Enterprise M9000 are electrically
equivalent.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Base Optimization Flags

C benchmarks:

 -fast   -fma=fused   -xcache=128/64/2:6144/256/12   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xprefetch=latx:2   -xalias_level=std   -xprefetch_level=3   -xprefetch_auto_type=indirect_array_access

C++ benchmarks:

 -xdepend   -library=stlport4   -fast   -fma=fused   -xcache=128/64/2:6144/256/12   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xprefetch=latx:2   -xalias_level=compatible

Fortran benchmarks:

 -fast   -fma=fused   -xcache=128/64/2:6144/256/12   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xprefetch=latx:2

Benchmarks using both Fortran and C:

 -fast(cc)   -fast(f90)   -fma=fused   -xcache=128/64/2:6144/256/12   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xprefetch=latx:2   -xalias_level=std   -xprefetch_level=3   -xprefetch_auto_type=indirect_array_access

Base Other Flags

C benchmarks:

 -xjobs=24   -V   -#

C++ benchmarks:

 -xjobs=24   -verbose=diags,version

Fortran benchmarks:

 -xjobs=24   -V   -v

Benchmarks using both Fortran and C:

 -xjobs=24   -V   -#   -v

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Peak Optimization Flags

C benchmarks:

433.milc:  -fast   -xcache=128/64/2:6144/256/12   -xpagesize=4M   -xipo=2   -xprefetch_level=2   -fsimple=1   -xprefetch_auto_type=indirect_array_access   -W2,-Ainline:rs=400   -xalias_level=std   -fma=fused   -xprefetch=latx:3
470.lbm:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xcache=128/64/2:6144/256/12   -xpagesize=4M   -xprefetch_level=3   -xipo=2   -xrestrict   -fma=fused   -Wc,-Qlp=1   -Wc,-Qlp-av=512   -Wc,-Qlp-t=1   -Wc,-Qlp-fa=1   -Wc,-Qms_pipe-prefolim=64   -xprefetch=latx:5
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  -xdepend   -library=stlport4   -fast   -xcache=128/64/2:6144/256/12   -xpagesize=4M   -xalias_level=compatible   -xprefetch_level=1   -fma=fused   -xprefetch=latx:3
447.dealII:  -xdepend   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xcache=128/64/2:6144/256/12   -xpagesize=4M   -xalias_level=compatible   -xipo=2   -xrestrict   -fma=fused   -xprefetch=latx:4.5
450.soplex:  -xdepend   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xcache=128/64/2:6144/256/12   -xpagesize=4M   -xalias_level=compatible   -xipo=2   -xprefetch_level=2   -fsimple=0   -xrestrict   -xprefetch_auto_type=indirect_array_access   -Qoption cg -Qlp-ol=1   -Qoption cg -Qlp-it=3   -Qoption cg -Qlp-imb=1   -Qoption iropt -Apf:pdl=3
453.povray:  -xdepend   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xcache=128/64/2:6144/256/12   -xpagesize=4M   -xalias_level=compatible   -xipo=2   -xrestrict   -fma=fused

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -fast   -xcache=128/64/2:6144/256/12   -xpagesize=4M   -xipo=2   -xprefetch_level=2   -fma=fused
434.zeusmp:  basepeak = yes
437.leslie3d:  -fast   -xcache=128/64/2:6144/256/12   -xpagesize=4M   -xprefetch_level=3   -qoption cg -Qlp=1   -qoption cg -Qlp-fa=0   -qoption cg -Qlp-fl=1   -qoption cg -Qlp-av=448   -qoption cg -Qlp-t=4   -xprefetch=latx:3.5
459.GemsFDTD:  -fast   -xcache=128/64/2:6144/256/12   -xpagesize=4M   -fsimple=1   -xprefetch_level=2   -fma=fused   -xprefetch=latx:2
465.tonto:  -fast   -xcache=128/64/2:6144/256/12   -xpagesize=4M   -xipo=2   -xprefetch=latx:12   -lfast

Benchmarks using both Fortran and C:

435.gromacs:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xcache=128/64/2:6144/256/12   -xpagesize=4M   -xipo=2   -xinline=   -xarch=generic   -xchip=generic   -fsimple=0   -fma=fused
436.cactusADM:  basepeak = yes
454.calculix:  basepeak = yes
481.wrf:  basepeak = yes

Peak Other Flags

C benchmarks:

 -xjobs=24   -V   -#

C++ benchmarks:

 -xjobs=24   -verbose=diags,version

Fortran benchmarks:

 -xjobs=24   -V   -v

Benchmarks using both Fortran and C:

 -xjobs=24   -V   -#   -v

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12.20090714.02.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12.20090714.02.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.1.
Report generated on Tue Jul 22 11:13:37 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 3 May 2007.
