| CPU2006 license: | 11 | Test date: | Feb-2007 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Apr-2007 |
| Tested by: | IBM Corporation | Software Availability: | Aug-2006 |
| Hardware | |
|---|---|
| CPU Name: | AMD Opteron 2222 SE |
| CPU Characteristics: | |
| CPU MHz: | 3000 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1, 2 chips |
| Primary Cache: | 64 KB I + 64 KB D on chip per core |
| Secondary Cache: | 1 MB I+D on chip per core |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 x 2GB DDR2-5300 ECC) |
| Disk Subsystem: | 1 x 80 GB SATA, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SLES9 SP3 for AMD64/EM64T |
| Compiler: | QLogic PathScale Compiler Suite 2.5 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Multi-user, run level 3 |
| Base Pointers: | 64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | None |

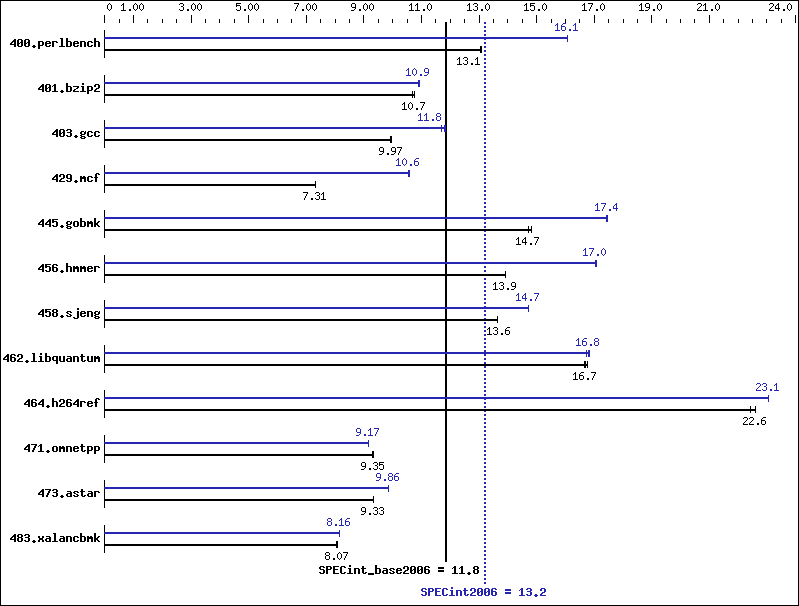

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 748 | 13.1 | 746 | 13.1 | 749 | 13.0 | 608 | 16.1 | 607 | 16.1 | 608 | 16.1 |
| 401.bzip2 | 902 | 10.7 | 898 | 10.7 | 898 | 10.7 | 884 | 10.9 | 885 | 10.9 | 884 | 10.9 |
| 403.gcc | 808 | 9.97 | 807 | 9.98 | 810 | 9.94 | 681 | 11.8 | 680 | 11.8 | 688 | 11.7 |
| 429.mcf | 1248 | 7.31 | 1248 | 7.31 | 1248 | 7.31 | 863 | 10.6 | 864 | 10.6 | 863 | 10.6 |
| 445.gobmk | 713 | 14.7 | 708 | 14.8 | 713 | 14.7 | 601 | 17.4 | 601 | 17.4 | 602 | 17.4 |
| 456.hmmer | 670 | 13.9 | 670 | 13.9 | 671 | 13.9 | 548 | 17.0 | 546 | 17.1 | 548 | 17.0 |
| 458.sjeng | 887 | 13.6 | 888 | 13.6 | 888 | 13.6 | 821 | 14.7 | 821 | 14.7 | 821 | 14.7 |
| 462.libquantum | 1236 | 16.8 | 1243 | 16.7 | 1240 | 16.7 | 1233 | 16.8 | 1232 | 16.8 | 1237 | 16.7 |
| 464.h264ref | 979 | 22.6 | 979 | 22.6 | 986 | 22.4 | 960 | 23.1 | 959 | 23.1 | 960 | 23.1 |
| 471.omnetpp | 668 | 9.35 | 669 | 9.35 | 672 | 9.30 | 682 | 9.17 | 682 | 9.17 | 681 | 9.17 |
| 473.astar | 751 | 9.35 | 753 | 9.32 | 752 | 9.33 | 712 | 9.86 | 712 | 9.86 | 712 | 9.86 |
| 483.xalancbmk | 855 | 8.07 | 855 | 8.07 | 858 | 8.04 | 845 | 8.17 | 846 | 8.16 | 845 | 8.16 |
Operating System Notes
taskset utility used to bind CPU(s) to processes
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -march=auto -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast |
| 401.bzip2: | -march=auto -O3 -LNO:ou_prod_max=10 -OPT:Ofast -OPT:alias=disjoint |
| 403.gcc: | -march=auto -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -m32 -O3 -OPT:Ofast |
| 429.mcf: | -march=auto -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -m32 -O2 -ipa |
| 445.gobmk: | -march=auto -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -OPT:alias=disjoint -LNO:simd=0 -LNO:minvariant=off -WOPT:retype_expr=on |
| 456.hmmer: | -march=auto -O2 -OPT:alias=disjoint -WOPT:aggstr=0 -CG:cflow=0 |
| 458.sjeng: | -march=auto -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -IPA:plimit=50000 -IPA:pu_reorder=2 |
| 462.libquantum: | -march=auto -O3 -ipa -CG:local_fwd_sched=on -IPA:space=1000 |
| 464.h264ref: | -march=auto -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -IPA:plimit=20000 -OPT:alias=disjoint -LNO:prefetch=0 |
C++ benchmarks:
| 471.omnetpp: | -march=auto -Ofast -IPA:pu_reorder=2 -CG:gcm=off -m32 |
| 473.astar: | -march=auto -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast |
| 483.xalancbmk: | -march=auto -Ofast -m32 -OPT:unroll_times_max=8 |
