| CPU2006 license: | 22 | Test date: | Mar-2007 |
|---|---|---|---|
| Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Jan-2007 |
| Tested by: | Fujitsu Siemens Computers | Software Availability: | Feb-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5355 |
| CPU Characteristics: | X5355 |
| CPU MHz: | 2667 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8x2 GB DDR2 PC2-5300F, 2 rank, CAS 5-5-5, with ECC) |
| Disk Subsystem: | SAS (73GB 15400 rpm) |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | 64-Bit SUSE LINUX Enterprise Server 10, Kernel 2.6.16.21-0.8-smp on an x86_64 |
| Compiler: | Intel C++ Compiler for IA32/EM64T application, Version 9.1 - Build 20070215, Package-ID: l_cc_p_9.1.047 |
| Auto Parallel: | No |
| File System: | ext2 |
| System State: | Multiuser, Runlevel 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Smart Heap Library, Version 8.1 |

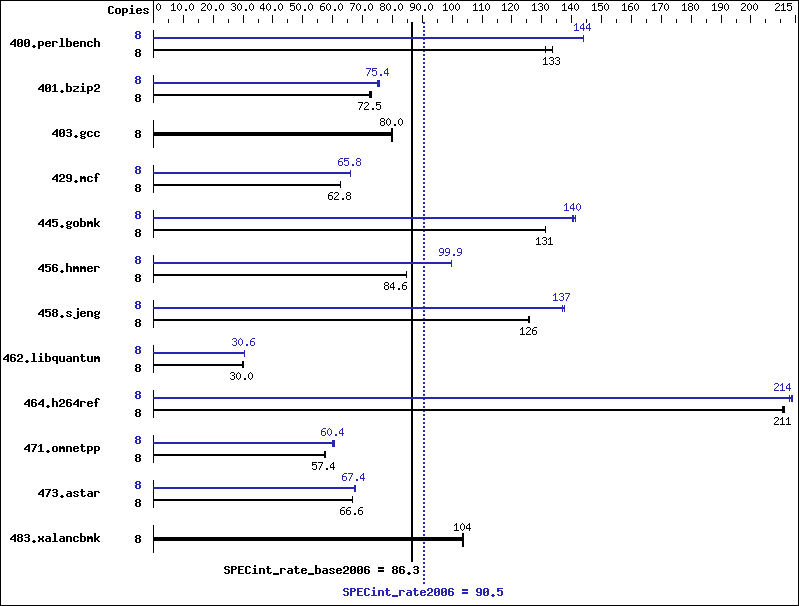

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 596 | 131 | 586 | 133 | 585 | 134 | 8 | 543 | 144 | 543 | 144 | 543 | 144 |
| 401.bzip2 | 8 | 1058 | 72.9 | 1068 | 72.3 | 1065 | 72.5 | 8 | 1023 | 75.4 | 1029 | 75.0 | 1021 | 75.6 |
| 403.gcc | 8 | 804 | 80.1 | 805 | 80.0 | 807 | 79.8 | 8 | 804 | 80.1 | 805 | 80.0 | 807 | 79.8 |
| 429.mcf | 8 | 1163 | 62.8 | 1164 | 62.7 | 1162 | 62.8 | 8 | 1109 | 65.8 | 1108 | 65.8 | 1106 | 66.0 |
| 445.gobmk | 8 | 639 | 131 | 639 | 131 | 639 | 131 | 8 | 598 | 140 | 594 | 141 | 599 | 140 |
| 456.hmmer | 8 | 882 | 84.6 | 883 | 84.6 | 882 | 84.6 | 8 | 747 | 99.9 | 748 | 99.7 | 747 | 99.9 |
| 458.sjeng | 8 | 770 | 126 | 769 | 126 | 770 | 126 | 8 | 707 | 137 | 704 | 137 | 707 | 137 |
| 462.libquantum | 8 | 5535 | 29.9 | 5534 | 30.0 | 5530 | 30.0 | 8 | 5424 | 30.6 | 5424 | 30.6 | 5423 | 30.6 |
| 464.h264ref | 8 | 840 | 211 | 839 | 211 | 839 | 211 | 8 | 828 | 214 | 832 | 213 | 829 | 214 |
| 471.omnetpp | 8 | 871 | 57.4 | 874 | 57.2 | 871 | 57.4 | 8 | 828 | 60.4 | 834 | 59.9 | 827 | 60.5 |
| 473.astar | 8 | 844 | 66.5 | 844 | 66.6 | 843 | 66.6 | 8 | 832 | 67.5 | 833 | 67.4 | 833 | 67.4 |
| 483.xalancbmk | 8 | 532 | 104 | 532 | 104 | 533 | 104 | 8 | 532 | 104 | 532 | 104 | 533 | 104 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run '/usr/bin/taskset' used to bind processes to CPUs
General Notes
The system bus runs at 1333 MHz All binaries were built with 32-bit Intel compiler except: 401.bzip2, 456.hmmer and 462.libquantum in peak were built with 64-bit Intel compiler by changing the path for include and library files. BIOS configuration: Hardware Prefetch = Disable, Adjacent Sector Prefetch = Disable For information about Fujitsu Siemens Computers in your country please see: http://www.fujitsu-siemens.com/countries
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_X64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast |
C++ benchmarks:
| -xP -O3 -ipo -no-prec-div -L/opt/SmartHeap_8_1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof_gen(pass 1) -prof_use(pass 2) -fast |
| 401.bzip2: | -fast |
| 403.gcc: | basepeak = yes |
| 429.mcf: | -prof_gen(pass 1) -prof_use(pass 2) -fast -L/opt/SmartHeap_8_1/lib -lsmartheap |
| 445.gobmk: | Same as 429.mcf |
| 456.hmmer: | Same as 400.perlbench |
| 458.sjeng: | Same as 429.mcf |
| 462.libquantum: | Same as 400.perlbench |
| 464.h264ref: | Same as 429.mcf |
C++ benchmarks:
| 471.omnetpp: | -prof_gen(pass 1) -prof_use(pass 2) -xP -O3 -ipo -no-prec-div -L/opt/SmartHeap_8_1/lib -lsmartheap |
| 473.astar: | -prof_gen(pass 1) -prof_use(pass 2) -fast -L/opt/SmartHeap_8_1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
