SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Bull SAS

NovaScale T840 (1.86 GHz, Intel Xeon E5320)

CPU2006 license: 20 Test date: Mar-2007
Test sponsor: Bull SAS Hardware Availability: Jan-2007
Tested by: Bull SAS Software Availability: Nov-2006

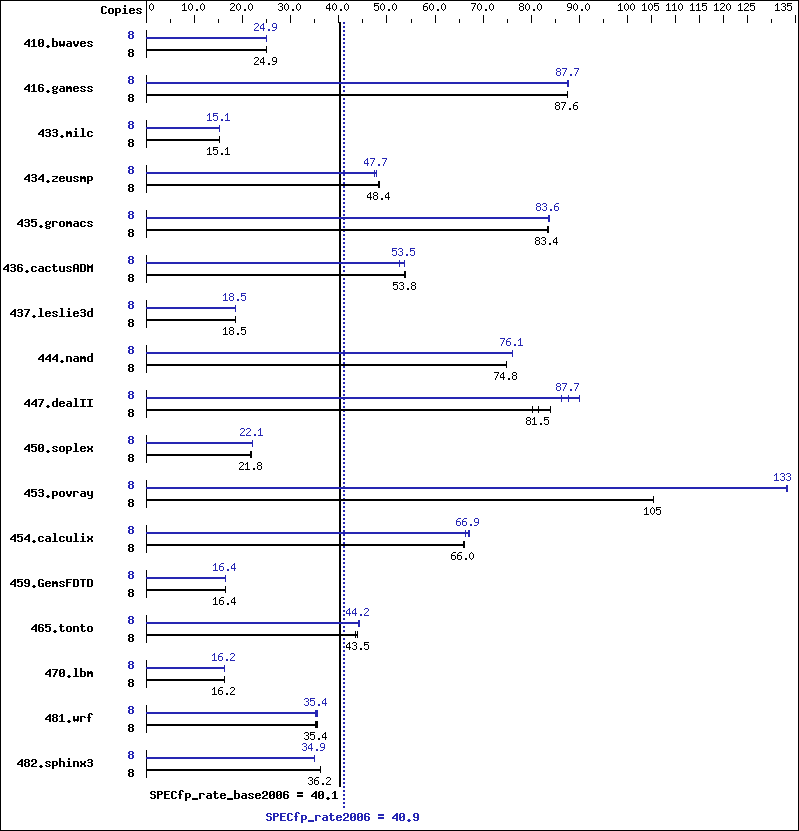

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5320
CPU Characteristics: 1.86 GHz, 8MB L2, 1066MHz bus
CPU MHz: 1860
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 8 GB (667 MHz ECC CL5 DDR2 FB-DIMM)
Disk Subsystem: 3x73GB SCSI 15000 rpm
Other Hardware: None
Software
Operating System: Windows Server 2003 Enterprise X64 Edition
Compiler: Intel C++ Compiler 9.1.033 for 32-bit apps.
Build 20061103Z Package ID: W_CC_C_9.1.033
Intel Fortran Compiler 9.1.033 for 32-bit app.
Build 20061103Z Package ID: W_FC_C_9.1.033
Microsoft Visual Studio .NET 2003 (libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: MicroQuill SmartHeap Library 8.0 (shlW32M.lib)

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 4358 24.9 4357 25.0 4359 24.9 8 4360 24.9 4359 24.9 4359 24.9
416.gamess 8 1789 87.6 1788 87.6 1788 87.6 8 1788 87.6 1787 87.7 1786 87.7
433.milc 8 4852 15.1 4849 15.1 4852 15.1 8 4850 15.1 4848 15.1 4847 15.2
434.zeusmp 8 1504 48.4 1503 48.4 1511 48.2 8 1521 47.9 1525 47.7 1534 47.5
435.gromacs 8 685 83.4 683 83.6 685 83.4 8 684 83.5 682 83.7 683 83.6
436.cactusADM 8 1777 53.8 1777 53.8 1779 53.7 8 1785 53.6 1785 53.5 1815 52.7
437.leslie3d 8 4075 18.5 4075 18.5 4076 18.4 8 4079 18.4 4074 18.5 4075 18.5
444.namd 8 858 74.8 857 74.8 857 74.8 8 844 76.1 843 76.1 844 76.1
447.dealII 8 1141 80.2 1090 84.0 1122 81.5 8 1044 87.7 1017 90.0 1062 86.2
450.soplex 8 3053 21.9 3061 21.8 3076 21.7 8 3022 22.1 3017 22.1 3025 22.1
453.povray 8 403 105   404 105   404 105   8 319 133   320 133   320 133
454.calculix 8 1000 66.0 1000 66.0 998 66.2 8 987 66.9 993 66.4 983 67.2
459.GemsFDTD 8 5175 16.4 5174 16.4 5192 16.3 8 5178 16.4 5184 16.4 5187 16.4
465.tonto 8 1796 43.8 1808 43.5 1812 43.4 8 1783 44.2 1785 44.1 1774 44.4
470.lbm 8 6788 16.2 6787 16.2 6789 16.2 8 6786 16.2 6785 16.2 6785 16.2
481.wrf 8 2537 35.2 2508 35.6 2527 35.4 8 2520 35.5 2528 35.4 2538 35.2
482.sphinx3 8 4304 36.2 4313 36.2 4307 36.2 8 4459 35.0 4463 34.9 4464 34.9

Base Compiler Invocation

C benchmarks:

 icl   -Qvc7.1   -Qc99

C++ benchmarks:

 icl   -Qvc7.1

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc7.1   -Qc99   ifort

Base Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Base Optimization Flags

C benchmarks:

 -fast   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   /F950000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -fast   /F950000000    -link /FORCE:MULTIPLE

Peak Compiler Invocation

C benchmarks:

 icl   -Qvc7.1   -Qc99

C++ benchmarks:

 icl   -Qvc7.1

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc7.1   -Qc99   ifort

Peak Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Peak Optimization Flags

C benchmarks:

 -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F950000000    -link /FORCE:MULTIPLE
416.gamess:  -fast   /F950000000    -link /FORCE:MULTIPLE
434.zeusmp:  Same as 410.bwaves
437.leslie3d:  Same as 410.bwaves
459.GemsFDTD:  Same as 410.bwaves
465.tonto:  Same as 410.bwaves

Benchmarks using both Fortran and C:

435.gromacs:  -fast   /F950000000    -link /FORCE:MULTIPLE
436.cactusADM:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F950000000    -link /FORCE:MULTIPLE
454.calculix:  Same as 436.cactusADM
481.wrf:  Same as 435.gromacs

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/flags.20090714.00.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/flags.20090714.00.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 11:56:25 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 17 April 2007.
