SPEC® CFP2006 Result

Tyan (Test Sponsor: Advanced Micro Devices)

n4250QE (S4985) AMD Opteron 2222 SE

SPECfp®2006 = 15.2

SPECfp_base2006 = 14.3

CPU2006 license:	49	Test date:	Feb-2007
Test sponsor:	Advanced Micro Devices	Hardware Availability:	May-2007
Tested by:	Advanced Micro Devices	Software Availability:	Mar-2007

Hardware
CPU Name:	AMD Opteron 2222 SE
CPU Characteristics:
CPU MHz:	3000
FPU:	Integrated
CPU(s) enabled:	2 cores, 1 chip, 2 cores/chip
CPU(s) orderable:	1,2 chips
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
L3 Cache:	None
Other Cache:	None
Memory:	4 GB (4x1GB, DDR2-667 CL4 ECC Reg Dual Rank)
Disk Subsystem:	SATA, 80 GB
Other Hardware:	None

Software
Operating System:	SuSE Linux Enterprise Server 9 SP3 64-bit kernel
Compiler:	QLogic PathScale Compiler Suite, Release 3.0
Auto Parallel:	No
File System:	ext3
System State:	Multi-user, run level 3
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

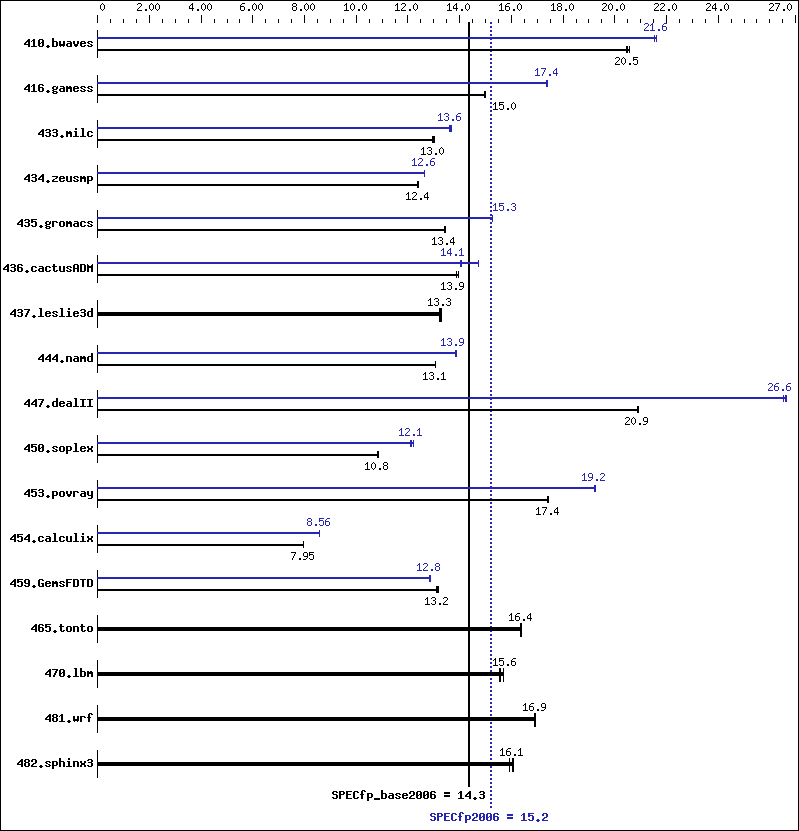

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	663	20.5	661	20.6	664	20.5	631	21.5	628	21.6	629	21.6
416.gamess	1308	15.0	1306	15.0	1306	15.0	1127	17.4	1126	17.4	1126	17.4
433.milc	705	13.0	708	13.0	707	13.0	671	13.7	673	13.6	674	13.6
434.zeusmp	735	12.4	734	12.4	734	12.4	721	12.6	721	12.6	720	12.6
435.gromacs	532	13.4	532	13.4	531	13.4	468	15.3	467	15.3	468	15.3
436.cactusADM	857	13.9	856	14.0	861	13.9	850	14.1	812	14.7	852	14.0
437.leslie3d	710	13.2	708	13.3	709	13.3	710	13.2	708	13.3	709	13.3
444.namd	615	13.0	613	13.1	614	13.1	579	13.9	578	13.9	578	13.9
447.dealII	548	20.9	548	20.9	547	20.9	430	26.6	431	26.5	429	26.6
450.soplex	769	10.8	770	10.8	769	10.8	683	12.2	689	12.1	688	12.1
453.povray	305	17.4	306	17.4	305	17.4	276	19.3	277	19.2	277	19.2
454.calculix	1038	7.95	1039	7.94	1038	7.95	964	8.56	964	8.56	964	8.56
459.GemsFDTD	810	13.1	806	13.2	806	13.2	828	12.8	825	12.9	826	12.8
465.tonto	600	16.4	601	16.4	601	16.4	600	16.4	601	16.4	601	16.4
470.lbm	875	15.7	882	15.6	884	15.5	875	15.7	882	15.6	884	15.5
481.wrf	659	16.9	661	16.9	660	16.9	659	16.9	661	16.9	660	16.9
482.sphinx3	1224	15.9	1214	16.1	1211	16.1	1224	15.9	1214	16.1	1211	16.1

General Notes

 All memory slots filled on all used CPU sockets

 The tested system can be assembled using an SSI-MEB case and
 a Silverstone Zeus 650 watt ST65ZF ATX 12V Power Supply.

Base Compiler Invocation

C benchmarks:

pathcc

C++ benchmarks:

pathCC

Fortran benchmarks:

pathf95

Benchmarks using both Fortran and C:

pathcc pathf95

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64 -DSPEC_CPU_TABLE_WORKAROUND
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

-Ofast

C++ benchmarks:

-Ofast

Fortran benchmarks:

-Ofast -OPT:malloc_alg=1

Benchmarks using both Fortran and C:

-Ofast -OPT:malloc_alg=1

Peak Compiler Invocation

C benchmarks:

pathcc

C++ benchmarks:

pathCC

Fortran benchmarks:

pathf95

Benchmarks using both Fortran and C:

pathcc pathf95

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_TABLE_WORKAROUND
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:	-Ofast -CG:cflow=off -LNO:prefetch=1 -OPT:malloc_alg=1
470.lbm:	basepeak = yes
482.sphinx3:	basepeak = yes

C++ benchmarks:

444.namd:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -fno-exceptions
447.dealII:	-Ofast -INLINE:aggressive=on -LNO:opt=0 -OPT:alias=disjoint -m32 -fno-exceptions
450.soplex:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -m32 -O3 -OPT:IEEE_arith=3 -CG:load_exe=0 -CG:movnti=1 -LNO:minvariant=off -LNO:prefetch=1 -fno-exceptions
453.povray:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -fno-fast-math

Fortran benchmarks:

410.bwaves:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -OPT:Ofast -OPT:IEEE_arith=3 -LNO:blocking=off -LNO:ignore_feedback=off
416.gamess:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O2 -OPT:Ofast -OPT:ro=3 -OPT:unroll_size=256
434.zeusmp:	-Ofast -CG:local_fwd_sched=on -LNO:blocking=off -LNO:interchange=off -LNO:fu=10 -LNO:full_unroll_outer=on
437.leslie3d:	basepeak = yes
459.GemsFDTD:	-Ofast -LNO:fission=2 -LNO:prefetch=0
465.tonto:	basepeak = yes

Benchmarks using both Fortran and C:

435.gromacs:	-O3 -OPT:rsqrt=2 -OPT:ro=3
436.cactusADM:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -LNO:prefetch=3 -LNO:prefetch_ahead=5 -LNO:ou_prod_max=10 -LNO:full_unroll=5 -ipa
454.calculix:	-Ofast -LNO:simd=0 -WOPT:mem_opnds=on
481.wrf:	basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.26.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.26.xml.
