SPEC® CFP2006 Result

Hewlett-Packard Company

ProLiant ML370 G5
(1.86 GHz, Intel Xeon processor E5320)

SPECfp®_rate2006 = 43.7

SPECfp_rate_base2006 = 43.0

CPU2006 license:	3	Test date:	Feb-2007
Test sponsor:	Hewlett-Packard Company	Hardware Availability:	Nov-2006
Tested by:	Hewlett-Packard Company	Software Availability:	Nov-2006

Hardware
CPU Name:	Intel Xeon E5320
CPU Characteristics:	1.86 GHz, 2x4 MB L2 shared, 1066 MHz system bus
CPU MHz:	1860
FPU:	Integrated
CPU(s) enabled:	8 cores, 2 chips, 4 cores/chip
CPU(s) orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache:	None
Other Cache:	None
Memory:	16 GB (8x2 GB PC2-5300F CL5)
Disk Subsystem:	2x72 GB 10 K SAS
Other Hardware:	None

Software
Operating System:	SuSE Linux Enterprise Server 10 (x86_64) kernel 2.6.16.21-0.8-smp
Compiler:	Intel C++ Compiler for Intel EM64T-based applications, Version 9.1 Build 20061101, Package ID: l_cc_c_9.1.045 Intel Fortran Compiler for Intel EM64T-based applications, Version 9.1 Build 20061101, Package ID: l_fc_c_9.1.040
Auto Parallel:	No
File System:	ext2
System State:	Multi-user run level 3
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

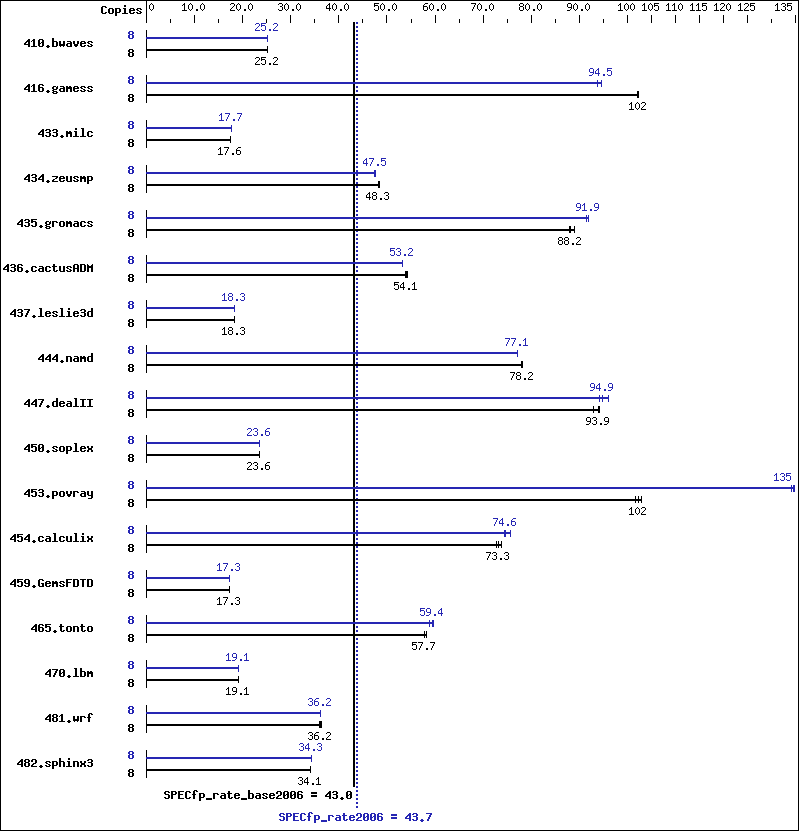

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	8	4315	25.2	4316	25.2	4316	25.2	8	4310	25.2	4316	25.2	4312	25.2
416.gamess	8	1532	102	1530	102	1534	102	8	1657	94.5	1671	93.7	1657	94.5
433.milc	8	4182	17.6	4188	17.5	4184	17.6	8	4144	17.7	4144	17.7	4144	17.7
434.zeusmp	8	1509	48.2	1501	48.5	1509	48.3	8	1536	47.4	1530	47.6	1532	47.5
435.gromacs	8	650	87.9	647	88.2	642	88.9	8	621	91.9	621	92.0	624	91.5
436.cactusADM	8	1772	53.9	1767	54.1	1760	54.3	8	1796	53.2	1796	53.2	1798	53.2
437.leslie3d	8	4095	18.4	4126	18.2	4110	18.3	8	4118	18.3	4107	18.3	4097	18.4
444.namd	8	820	78.2	823	78.0	821	78.2	8	832	77.1	832	77.1	832	77.1
447.dealII	8	974	93.9	985	92.9	971	94.2	8	964	94.9	953	96.0	971	94.2
450.soplex	8	2827	23.6	2828	23.6	2831	23.6	8	2831	23.6	2834	23.5	2830	23.6
453.povray	8	416	102	419	102	413	103	8	316	135	316	135	317	134
454.calculix	8	901	73.3	907	72.8	895	73.8	8	887	74.4	873	75.6	885	74.6
459.GemsFDTD	8	4900	17.3	4899	17.3	4898	17.3	8	4904	17.3	4902	17.3	4901	17.3
465.tonto	8	1350	58.3	1363	57.7	1364	57.7	8	1320	59.6	1324	59.4	1338	58.8
470.lbm	8	5744	19.1	5743	19.1	5743	19.1	8	5743	19.1	5741	19.1	5741	19.1
481.wrf	8	2471	36.2	2462	36.3	2477	36.1	8	2465	36.3	2476	36.1	2467	36.2
482.sphinx3	8	4569	34.1	4564	34.2	4566	34.1	8	4545	34.3	4542	34.3	4534	34.4

Platform Notes

Power Regulator set to Static High Performance Mode in BIOS.
Adjacent Sector Prefetch Disabled in BIOS.
"/usr/bin/taskset" used to bind processes to CPUs.
Environment stack size set to 'unlimited'

Base Compiler Invocation

C benchmarks:

icc

C++ benchmarks:

icpc

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icc ifort

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64
