| CPU2006 license: | 22 | Test date: | Feb-2007 |
|---|---|---|---|
| Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Nov-2006 |
| Tested by: | Fujitsu Siemens Computers | Software Availability: | Nov-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5335 |
| CPU Characteristics: | E5335 |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8x2 GB DDR2 5300F, 2 rank, CL5-5-5, ECC) |
| Disk Subsystem: | SATA II 7200 rpm |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows XP, 64 bit Edition |
| Compiler: | Intel C++ Compiler for EM64T-based applications - version 9.1, Build 20061104 Intel Fortran Compiler for EM64T-based applications - version 9.1, Build 20061104 Microsoft Visual Studio 2005 (for libraries) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 64-bit |
| Peak Pointers: | 64-bit |
| Other Software: | None |

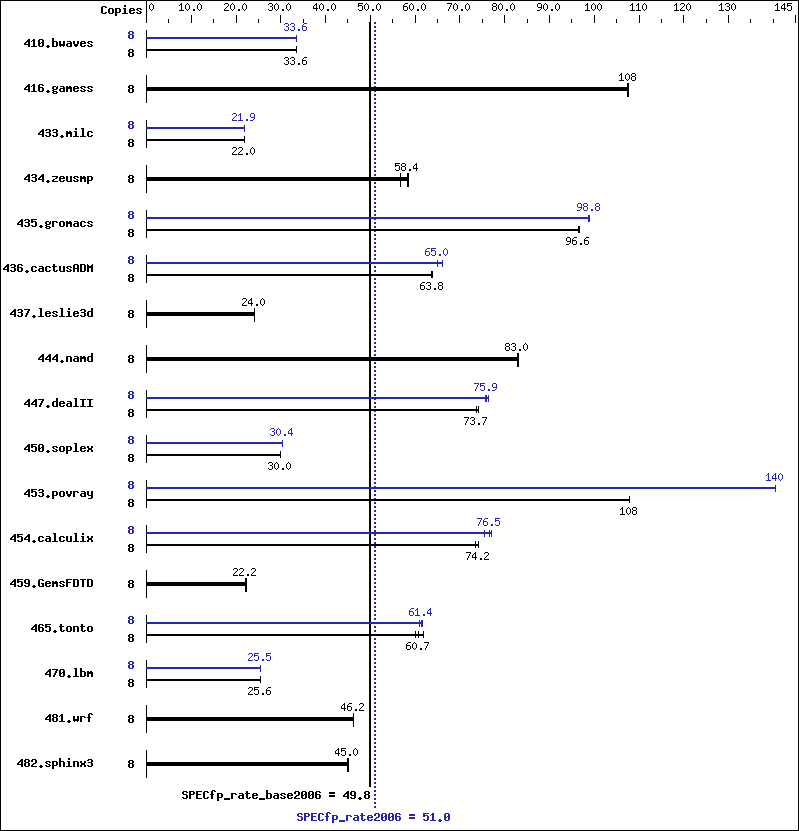

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 8 | 3238 | 33.6 | 3239 | 33.6 | 3235 | 33.6 | 8 | 3236 | 33.6 | 3241 | 33.5 | 3236 | 33.6 |
| 416.gamess | 8 | 1457 | 108 | 1456 | 108 | 1456 | 108 | 8 | 1457 | 108 | 1456 | 108 | 1456 | 108 |
| 433.milc | 8 | 3341 | 22.0 | 3340 | 22.0 | 3340 | 22.0 | 8 | 3349 | 21.9 | 3352 | 21.9 | 3356 | 21.9 |
| 434.zeusmp | 8 | 1247 | 58.4 | 1285 | 56.6 | 1243 | 58.6 | 8 | 1247 | 58.4 | 1285 | 56.6 | 1243 | 58.6 |
| 435.gromacs | 8 | 591 | 96.6 | 592 | 96.5 | 591 | 96.6 | 8 | 577 | 98.9 | 578 | 98.8 | 578 | 98.8 |
| 436.cactusADM | 8 | 1498 | 63.8 | 1496 | 63.9 | 1501 | 63.7 | 8 | 1471 | 65.0 | 1448 | 66.0 | 1472 | 65.0 |
| 437.leslie3d | 8 | 3131 | 24.0 | 3130 | 24.0 | 3131 | 24.0 | 8 | 3131 | 24.0 | 3130 | 24.0 | 3131 | 24.0 |
| 444.namd | 8 | 773 | 83.0 | 773 | 83.0 | 774 | 82.9 | 8 | 773 | 83.0 | 773 | 83.0 | 774 | 82.9 |
| 447.dealII | 8 | 1236 | 74.1 | 1244 | 73.6 | 1242 | 73.7 | 8 | 1200 | 76.3 | 1208 | 75.8 | 1206 | 75.9 |
| 450.soplex | 8 | 2226 | 30.0 | 2225 | 30.0 | 2224 | 30.0 | 8 | 2195 | 30.4 | 2197 | 30.4 | 2196 | 30.4 |
| 453.povray | 8 | 395 | 108 | 395 | 108 | 394 | 108 | 8 | 303 | 140 | 303 | 140 | 303 | 140 |
| 454.calculix | 8 | 890 | 74.2 | 889 | 74.2 | 898 | 73.5 | 8 | 857 | 77.0 | 874 | 75.5 | 863 | 76.5 |
| 459.GemsFDTD | 8 | 3822 | 22.2 | 3817 | 22.2 | 3822 | 22.2 | 8 | 3822 | 22.2 | 3817 | 22.2 | 3822 | 22.2 |
| 465.tonto | 8 | 1312 | 60.0 | 1273 | 61.8 | 1297 | 60.7 | 8 | 1292 | 60.9 | 1276 | 61.7 | 1283 | 61.4 |
| 470.lbm | 8 | 4302 | 25.6 | 4301 | 25.6 | 4301 | 25.6 | 8 | 4309 | 25.5 | 4310 | 25.5 | 4309 | 25.5 |
| 481.wrf | 8 | 1932 | 46.2 | 1932 | 46.2 | 1931 | 46.3 | 8 | 1932 | 46.2 | 1932 | 46.2 | 1931 | 46.3 |
| 482.sphinx3 | 8 | 3465 | 45.0 | 3461 | 45.0 | 3466 | 45.0 | 8 | 3465 | 45.0 | 3461 | 45.0 | 3466 | 45.0 |
Platform Notes
BIOS default settings have been used, except: High Bandwith Option Enabled
General Notes
'start /b /wait /affinity' command is used to bind CPU(s) to processes For information about Fujitsu Siemens Computers in your country please see: http://www.fujitsu-siemens.com/countries
Base Compiler Invocation
C benchmarks:
| icl -Qvc8 -Qc99 |
C++ benchmarks:
| icl -Qvc8 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc8 -Qc99 ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_P64 |
| 416.gamess: | -DSPEC_CPU_P64 |
| 433.milc: | -D_Complex= -DSPEC_CPU_P64 |
| 434.zeusmp: | -DSPEC_CPU_P64 |
| 435.gromacs: | -D_Complex= -DSPEC_CPU_P64 |
| 436.cactusADM: | -D_Complex= -DSPEC_CPU_P64 -Qlowercase /assume:underscore |
| 437.leslie3d: | -DSPEC_CPU_P64 |
| 444.namd: | -DSPEC_CPU_P64 /TP |
| 447.dealII: | -D_Complex= -DSPEC_CPU_P64 -DBOOST_NO_INTRINSIC_WCHAR_T -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG |
| 450.soplex: | -DSPEC_CPU_P64 |
| 453.povray: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -D_Complex= -DSPEC_CPU_P64 -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 459.GemsFDTD: | -DSPEC_CPU_P64 |
| 465.tonto: | -DSPEC_CPU_P64 |
| 470.lbm: | -D_Complex= -DSPEC_CPU_P64 |
| 481.wrf: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 482.sphinx3: | -D_Complex= -DSPEC_CPU_P64 |
Base Optimization Flags
C benchmarks:
| -fast -F950000000 |
C++ benchmarks:
| -fast -Qcxx-features -F950000000 |
Fortran benchmarks:
| -fast -F950000000 |
Benchmarks using both Fortran and C:
| -fast -F950000000 |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc8 -Qc99 |
C++ benchmarks:
| icl -Qvc8 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc8 -Qc99 ifort |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| 433.milc: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -F950000000 |
| 470.lbm: | Same as 433.milc |
| 482.sphinx3: | basepeak = yes |
C++ benchmarks:
| 444.namd: | basepeak = yes |
| 447.dealII: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx-features -F950000000 |
| 450.soplex: | Same as 447.dealII |
| 453.povray: | Same as 447.dealII |
Fortran benchmarks:
| 410.bwaves: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -F950000000 |
| 416.gamess: | basepeak = yes |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | Same as 410.bwaves |
Benchmarks using both Fortran and C:
| 435.gromacs: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -F950000000 |
| 436.cactusADM: | Same as 435.gromacs |
| 454.calculix: | Same as 435.gromacs |
| 481.wrf: | basepeak = yes |
