| CPU2006 license: | 22 | Test date: | Feb-2007 |
|---|---|---|---|
| Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Jan-2007 |
| Tested by: | Fujitsu Siemens Computers | Software Availability: | Nov-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5355 |
| CPU Characteristics: | X5355 |
| CPU MHz: | 2666 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8x2 GB DDR2 PC2-5300F, 2 rank, CAS 5-5-5, with ECC) |
| Disk Subsystem: | SAS (73GB 15400 rpm) |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | 64-Bit SUSE LINUX Enterprise Server 10, Kernel 2.6.16.21-0.8-smp on an x86_64 |
| Compiler: | Intel C++ Compiler for Linux64 EM64T version 9.1 Build 20061101, Package-ID l_cc_p_9.1.045 Intel Fortran Compiler for Linux64 EM64T version 9.1 Build 20061101 Package ID: l_fc_p_9.1.040 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Default |
| Base Pointers: | 64-bit |
| Peak Pointers: | 64-bit |
| Other Software: | None |

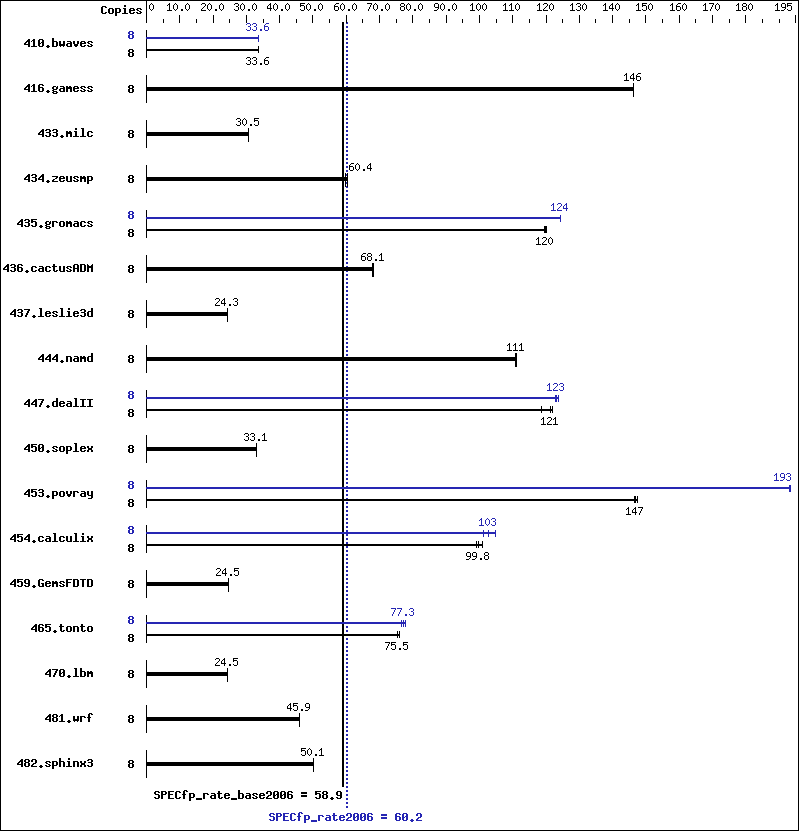

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 8 | 3240 | 33.6 | 3240 | 33.6 | 3238 | 33.6 | 8 | 3238 | 33.6 | 3238 | 33.6 | 3237 | 33.6 |
| 416.gamess | 8 | 1071 | 146 | 1071 | 146 | 1071 | 146 | 8 | 1071 | 146 | 1071 | 146 | 1071 | 146 |
| 433.milc | 8 | 2407 | 30.5 | 2403 | 30.6 | 2408 | 30.5 | 8 | 2407 | 30.5 | 2403 | 30.6 | 2408 | 30.5 |
| 434.zeusmp | 8 | 1204 | 60.4 | 1205 | 60.4 | 1219 | 59.7 | 8 | 1204 | 60.4 | 1205 | 60.4 | 1219 | 59.7 |
| 435.gromacs | 8 | 476 | 120 | 478 | 119 | 476 | 120 | 8 | 459 | 124 | 459 | 124 | 459 | 124 |
| 436.cactusADM | 8 | 1403 | 68.1 | 1407 | 68.0 | 1400 | 68.3 | 8 | 1403 | 68.1 | 1407 | 68.0 | 1400 | 68.3 |
| 437.leslie3d | 8 | 3086 | 24.4 | 3091 | 24.3 | 3101 | 24.3 | 8 | 3086 | 24.4 | 3091 | 24.3 | 3101 | 24.3 |
| 444.namd | 8 | 579 | 111 | 578 | 111 | 578 | 111 | 8 | 579 | 111 | 578 | 111 | 578 | 111 |
| 447.dealII | 8 | 754 | 121 | 771 | 119 | 750 | 122 | 8 | 740 | 124 | 746 | 123 | 744 | 123 |
| 450.soplex | 8 | 2018 | 33.1 | 2022 | 33.0 | 2017 | 33.1 | 8 | 2018 | 33.1 | 2022 | 33.0 | 2017 | 33.1 |
| 453.povray | 8 | 290 | 147 | 290 | 147 | 288 | 148 | 8 | 220 | 193 | 220 | 193 | 220 | 193 |
| 454.calculix | 8 | 665 | 99.2 | 661 | 99.8 | 655 | 101 | 8 | 630 | 105 | 653 | 101 | 642 | 103 |
| 459.GemsFDTD | 8 | 3461 | 24.5 | 3461 | 24.5 | 3461 | 24.5 | 8 | 3461 | 24.5 | 3461 | 24.5 | 3461 | 24.5 |
| 465.tonto | 8 | 1044 | 75.4 | 1037 | 75.9 | 1042 | 75.5 | 8 | 1019 | 77.3 | 1014 | 77.7 | 1029 | 76.5 |
| 470.lbm | 8 | 4493 | 24.5 | 4493 | 24.5 | 4493 | 24.5 | 8 | 4493 | 24.5 | 4493 | 24.5 | 4493 | 24.5 |
| 481.wrf | 8 | 1945 | 45.9 | 1948 | 45.9 | 1944 | 46.0 | 8 | 1945 | 45.9 | 1948 | 45.9 | 1944 | 46.0 |
| 482.sphinx3 | 8 | 3112 | 50.1 | 3117 | 50.0 | 3115 | 50.1 | 8 | 3112 | 50.1 | 3117 | 50.0 | 3115 | 50.1 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
General Notes
The system bus runs at 1333 MHz BIOS configuration: Hardware Prefetch = Disable, Adjacent Sector Prefetch = Disable This result was measured on the PRIMERGY RX300 S3. The PRIMERGY RX300 S3 and the PRIMERGY TX300 S3 are electronically equivalent. http://www.fujitsu-siemens.com/countries For information about Fujitsu Siemens Computers in your country please see:
Base Compiler Invocation
C benchmarks:
| icc |
C++ benchmarks:
| icpc |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icc ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
Base Optimization Flags
C benchmarks:
| -fast |
C++ benchmarks:
| -fast |
Fortran benchmarks:
| -fast |
Benchmarks using both Fortran and C:
| -fast |
Peak Compiler Invocation
C benchmarks:
| icc |
C++ benchmarks:
| icpc |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icc ifort |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| 433.milc: | basepeak = yes |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | basepeak = yes |
C++ benchmarks:
| 444.namd: | basepeak = yes |
| 447.dealII: | -prof_gen(pass 1) -prof_use(pass 2) -fast |
| 450.soplex: | basepeak = yes |
| 453.povray: | Same as 447.dealII |
Fortran benchmarks:
| 410.bwaves: | -prof_gen(pass 1) -prof_use(pass 2) -fast |
| 416.gamess: | basepeak = yes |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | Same as 410.bwaves |
Benchmarks using both Fortran and C:
| 435.gromacs: | -prof_gen(pass 1) -prof_use(pass 2) -fast |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | Same as 435.gromacs |
| 481.wrf: | basepeak = yes |
