| CPU2006 license: | 3 | Test date: | Feb-2007 |
|---|---|---|---|
| Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Nov-2006 |
| Tested by: | Hewlett-Packard Company | Software Availability: | Nov-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5320 |
| CPU Characteristics: | 1.86 GHz, 2x4 MB L2 shared, 1066 MHz system bus |
| CPU MHz: | 1860 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (4x2 GB PC2-5300F CL5) |
| Disk Subsystem: | 4x36 GB 10 K SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Enterprise x64 Edition, SP1 |
| Compiler: | Intel C++ Compiler for 32-bit applications, Version 9.1, Build 20061103Z Package ID: W_CC_C_9.1.033 Microsoft Visual Studio .NET 2003 (v7.1.3088, for libraries) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library 8.0 |

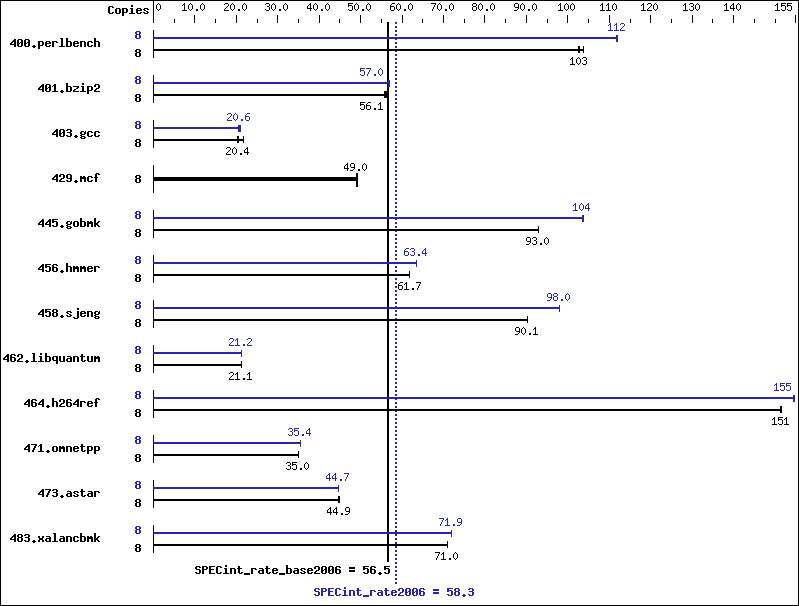

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 752 | 104 | 762 | 103 | 760 | 103 | 8 | 698 | 112 | 699 | 112 | 698 | 112 |
| 401.bzip2 | 8 | 1377 | 56.1 | 1383 | 55.8 | 1370 | 56.3 | 8 | 1355 | 57.0 | 1354 | 57.0 | 1363 | 56.7 |
| 403.gcc | 8 | 2970 | 21.7 | 3175 | 20.3 | 3152 | 20.4 | 8 | 3120 | 20.6 | 3084 | 20.9 | 3125 | 20.6 |
| 429.mcf | 8 | 1485 | 49.1 | 1488 | 49.0 | 1488 | 49.0 | 8 | 1485 | 49.1 | 1488 | 49.0 | 1488 | 49.0 |
| 445.gobmk | 8 | 903 | 92.9 | 902 | 93.0 | 903 | 93.0 | 8 | 808 | 104 | 810 | 104 | 811 | 103 |
| 456.hmmer | 8 | 1210 | 61.7 | 1210 | 61.7 | 1208 | 61.8 | 8 | 1177 | 63.4 | 1178 | 63.4 | 1178 | 63.4 |
| 458.sjeng | 8 | 1074 | 90.1 | 1074 | 90.2 | 1074 | 90.1 | 8 | 988 | 98.0 | 988 | 98.0 | 988 | 98.0 |
| 462.libquantum | 8 | 7845 | 21.1 | 7840 | 21.1 | 7847 | 21.1 | 8 | 7814 | 21.2 | 7844 | 21.1 | 7813 | 21.2 |
| 464.h264ref | 8 | 1168 | 152 | 1169 | 151 | 1170 | 151 | 8 | 1145 | 155 | 1145 | 155 | 1145 | 155 |
| 471.omnetpp | 8 | 1428 | 35.0 | 1429 | 35.0 | 1428 | 35.0 | 8 | 1408 | 35.5 | 1413 | 35.4 | 1411 | 35.4 |
| 473.astar | 8 | 1256 | 44.7 | 1252 | 44.9 | 1251 | 44.9 | 8 | 1261 | 44.5 | 1256 | 44.7 | 1255 | 44.7 |
| 483.xalancbmk | 8 | 777 | 71.0 | 778 | 71.0 | 777 | 71.0 | 8 | 768 | 71.9 | 769 | 71.8 | 768 | 71.9 |
Platform Notes
Power Regulator set to Static High Performance Mode in BIOS. Adjacent Sector Prefetch disabled in BIOS.
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Base Optimization Flags
C benchmarks:
| -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | Same as 400.perlbench |
| 403.gcc: | Same as 400.perlbench |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | Same as 400.perlbench |
| 456.hmmer: | Same as 400.perlbench |
| 458.sjeng: | Same as 400.perlbench |
| 462.libquantum: | Same as 400.perlbench |
| 464.h264ref: | Same as 400.perlbench |
C++ benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
