SPEC® CFP2006 Result

IBM Corporation

IBM BladeCenter LS41 (AMD Opteron 8220)

SPECfp®2006 = 12.9

SPECfp_base2006 = 12.1

CPU2006 license:	11	Test date:	Feb-2007
Test sponsor:	IBM Corporation	Hardware Availability:	Feb-2007
Tested by:	IBM Corporation	Software Availability:	Aug-2006

Hardware
CPU Name:	AMD Opteron 8220
CPU Characteristics:
CPU MHz:	2800
FPU:	Integrated
CPU(s) enabled:	8 cores, 4 chips, 2 cores/chip
CPU(s) orderable:	1, 2, 4 chips
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
L3 Cache:	None
Other Cache:	None
Memory:	32 GB (16 x 2GB DDR2-5300 ECC)
Disk Subsystem:	1 x 74 GB SAS, 10000 RPM
Other Hardware:	None

Software
Operating System:	SLES9 SP3 for AMD64/EM64T
Compiler:	QLogic PathScale Compiler Suite 2.5
Auto Parallel:	No
File System:	ext3
System State:	Multi-user, run level 3
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

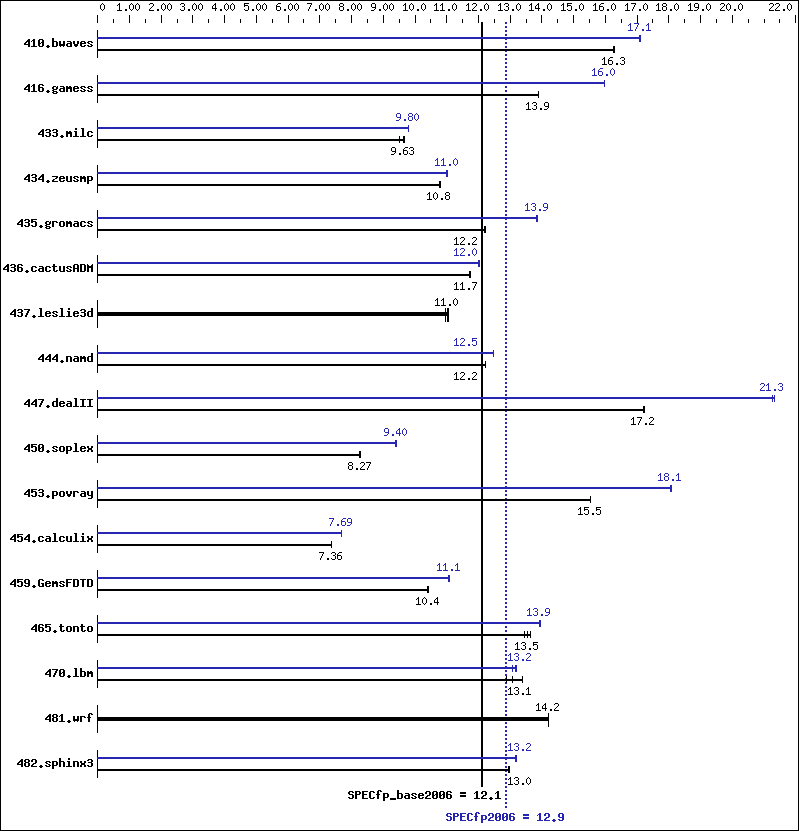

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	836	16.3	835	16.3	835	16.3	796	17.1	795	17.1	795	17.1
416.gamess	1409	13.9	1408	13.9	1408	13.9	1227	16.0	1226	16.0	1226	16.0
433.milc	965	9.52	954	9.63	949	9.68	936	9.81	938	9.78	937	9.80
434.zeusmp	842	10.8	845	10.8	844	10.8	826	11.0	827	11.0	826	11.0
435.gromacs	589	12.1	586	12.2	585	12.2	515	13.9	516	13.8	515	13.9
436.cactusADM	1018	11.7	1020	11.7	1020	11.7	995	12.0	994	12.0	994	12.0
437.leslie3d	850	11.1	852	11.0	857	11.0	850	11.1	852	11.0	857	11.0
444.namd	656	12.2	656	12.2	656	12.2	643	12.5	643	12.5	643	12.5
447.dealII	665	17.2	665	17.2	664	17.2	538	21.3	537	21.3	538	21.3
450.soplex	1008	8.27	1009	8.26	1009	8.27	887	9.41	888	9.39	887	9.40
453.povray	343	15.5	343	15.5	343	15.5	295	18.0	294	18.1	295	18.1
454.calculix	1120	7.37	1122	7.35	1121	7.36	1073	7.69	1072	7.70	1073	7.69
459.GemsFDTD	1021	10.4	1019	10.4	1018	10.4	959	11.1	957	11.1	958	11.1
465.tonto	722	13.6	732	13.4	727	13.5	706	13.9	707	13.9	706	13.9
470.lbm	1027	13.4	1065	12.9	1051	13.1	1052	13.1	1043	13.2	1040	13.2
481.wrf	786	14.2	787	14.2	787	14.2	786	14.2	787	14.2	787	14.2
482.sphinx3	1503	13.0	1506	12.9	1502	13.0	1478	13.2	1476	13.2	1481	13.2

Operating System Notes

 taskset utility used to bind CPU(s) to processes

Base Compiler Invocation

C benchmarks:

pathcc

C++ benchmarks:

pathCC

Fortran benchmarks:

pathf95

Benchmarks using both Fortran and C:

pathcc pathf95

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64 -DSPEC_CPU_TABLE_WORKAROUND
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

-march=auto -Ofast

C++ benchmarks:

-march=auto -Ofast

Fortran benchmarks:

-march=auto -Ofast

Benchmarks using both Fortran and C:

-march=auto -Ofast

Base Other Flags

Peak Compiler Invocation

C benchmarks:

pathcc

C++ benchmarks:

pathCC

Fortran benchmarks:

pathf95

Benchmarks using both Fortran and C:

pathcc pathf95

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_TABLE_WORKAROUND
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

-march=auto -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast

C++ benchmarks:

444.namd:	-march=auto -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast
447.dealII:	-march=auto -Ofast -m32 -fno-exceptions
450.soplex:	-march=auto -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -m32 -O3 -OPT:IEEE_arith=3 -CG:load_exe=0 -CG:movnti=1 -LNO:minvariant=off -fno-exceptions
453.povray:	-march=auto -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -fno-fast-math

Fortran benchmarks:

410.bwaves:	-march=auto -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -OPT:Ofast -OPT:IEEE_arith=3 -LNO:blocking=off -LNO:ignore_feedback=off
416.gamess:	-march=auto -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O2 -OPT:Ofast -OPT:ro=3 -OPT:unroll_size=256
434.zeusmp:	-march=auto -Ofast -CG:local_fwd_sched=on -LNO:blocking=off -LNO:interchange=off -LNO:fu=10 -LNO:full_unroll_outer=on
437.leslie3d:	basepeak = yes
459.GemsFDTD:	-march=auto -Ofast -LNO:fission=2 -LNO:prefetch=0
465.tonto:	-march=auto -Ofast -CG:local_fwd_sched=on -IPA:plimit=525

Benchmarks using both Fortran and C:

435.gromacs:	-march=auto -O3 -OPT:rsqrt=2 -OPT:ro=3
436.cactusADM:	-march=auto -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -LNO:prefetch_ahead=5 -LNO:ou_prod_max=10 -LNO:full_unroll=5 -ipa
454.calculix:	-march=auto -Ofast -CG:prefetch=off -LNO:simd=0 -OPT:unroll_times_max=8 -WOPT:mem_opnds=on
481.wrf:	basepeak = yes

Peak Other Flags

C benchmarks:

-IPA:max_jobs=2

C++ benchmarks:

-IPA:max_jobs=2

Fortran benchmarks:

-IPA:max_jobs=2

Benchmarks using both Fortran and C:

-IPA:max_jobs=2

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.17.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.17.xml.
