| CPU2006 license: | 22 | Test date: | Feb-2007 |
|---|---|---|---|
| Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Nov-2006 |
| Tested by: | Fujitsu Siemens Computers | Software Availability: | Nov-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5355 |
| CPU Characteristics: | X5355 |
| CPU MHz: | 2667 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (4x2 GB DDR2 5300F, 2 rank, CL5-5-5,with ECC) |
| Disk Subsystem: | SATA II 7200 rpm |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows XP, 64 bit Edition |
| Compiler: | Intel C++ Compiler for EM64T-based applications - version 9.1, Build 20061104 Intel Fortran Compiler for EM64T-based applications - version 9.1, Build 20061104 Microsoft Visual Studio 2005 (for libraries) |
| Auto Parallel: | Yes |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 64-bit |
| Peak Pointers: | 64-bit |
| Other Software: | None |

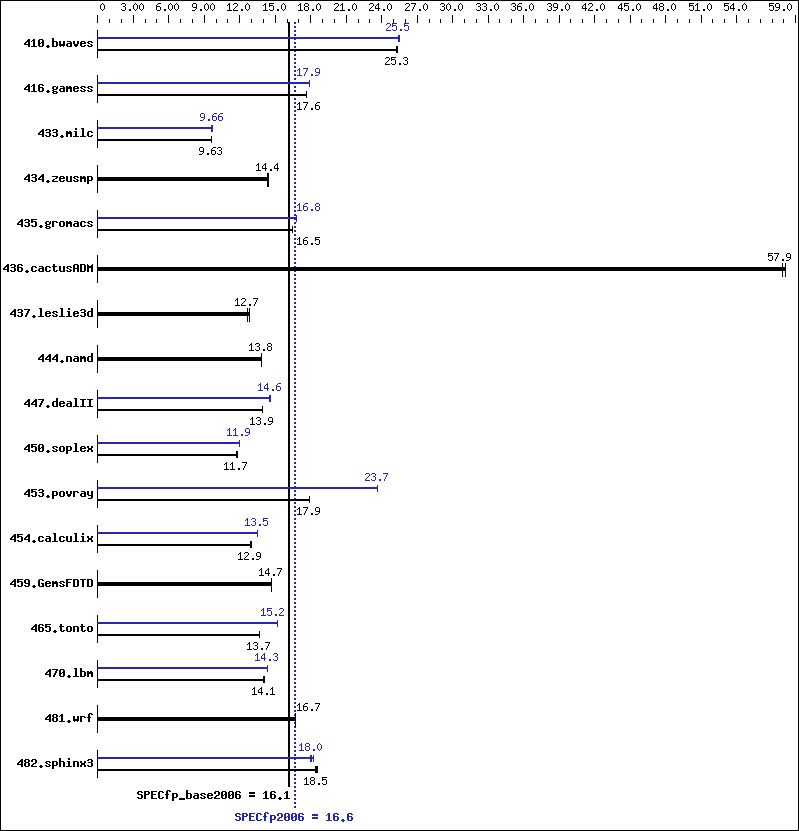

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 536 | 25.4 | 537 | 25.3 | 537 | 25.3 | 533 | 25.5 | 535 | 25.4 | 534 | 25.5 |
| 416.gamess | 1110 | 17.6 | 1111 | 17.6 | 1111 | 17.6 | 1094 | 17.9 | 1094 | 17.9 | 1093 | 17.9 |
| 433.milc | 952 | 9.65 | 954 | 9.63 | 953 | 9.63 | 951 | 9.66 | 950 | 9.66 | 949 | 9.67 |
| 434.zeusmp | 631 | 14.4 | 632 | 14.4 | 633 | 14.4 | 631 | 14.4 | 632 | 14.4 | 633 | 14.4 |
| 435.gromacs | 433 | 16.5 | 433 | 16.5 | 433 | 16.5 | 424 | 16.8 | 424 | 16.8 | 424 | 16.8 |
| 436.cactusADM | 206 | 57.9 | 205 | 58.2 | 206 | 57.9 | 206 | 57.9 | 205 | 58.2 | 206 | 57.9 |
| 437.leslie3d | 734 | 12.8 | 741 | 12.7 | 741 | 12.7 | 734 | 12.8 | 741 | 12.7 | 741 | 12.7 |
| 444.namd | 580 | 13.8 | 580 | 13.8 | 580 | 13.8 | 580 | 13.8 | 580 | 13.8 | 580 | 13.8 |
| 447.dealII | 821 | 13.9 | 821 | 13.9 | 821 | 13.9 | 786 | 14.6 | 786 | 14.6 | 786 | 14.6 |
| 450.soplex | 710 | 11.7 | 707 | 11.8 | 710 | 11.7 | 694 | 12.0 | 698 | 11.9 | 698 | 11.9 |
| 453.povray | 298 | 17.9 | 298 | 17.9 | 298 | 17.9 | 225 | 23.7 | 225 | 23.7 | 225 | 23.7 |
| 454.calculix | 637 | 13.0 | 637 | 12.9 | 637 | 12.9 | 611 | 13.5 | 611 | 13.5 | 611 | 13.5 |
| 459.GemsFDTD | 722 | 14.7 | 723 | 14.7 | 722 | 14.7 | 722 | 14.7 | 723 | 14.7 | 722 | 14.7 |
| 465.tonto | 720 | 13.7 | 719 | 13.7 | 720 | 13.7 | 649 | 15.2 | 649 | 15.2 | 649 | 15.2 |
| 470.lbm | 973 | 14.1 | 983 | 14.0 | 974 | 14.1 | 959 | 14.3 | 959 | 14.3 | 959 | 14.3 |
| 481.wrf | 669 | 16.7 | 670 | 16.7 | 670 | 16.7 | 669 | 16.7 | 670 | 16.7 | 670 | 16.7 |
| 482.sphinx3 | 1048 | 18.6 | 1056 | 18.5 | 1057 | 18.4 | 1070 | 18.2 | 1083 | 18.0 | 1081 | 18.0 |
Platform Notes
BIOS default settings have been used, except: Snoop Filter Enabled Adjacent Cache Line Prefetch Enabled
General Notes
For information about Fujitsu Siemens Computers in your country please see: http://www.fujitsu-siemens.com/countries
Base Compiler Invocation
C benchmarks:
| icl -Qvc8 -Qc99 |
C++ benchmarks:
| icl -Qvc8 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc8 -Qc99 ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_P64 |
| 416.gamess: | -DSPEC_CPU_P64 |
| 433.milc: | -D_Complex= -DSPEC_CPU_P64 |
| 434.zeusmp: | -DSPEC_CPU_P64 |
| 435.gromacs: | -D_Complex= -DSPEC_CPU_P64 |
| 436.cactusADM: | -D_Complex= -DSPEC_CPU_P64 -Qlowercase /assume:underscore |
| 437.leslie3d: | -DSPEC_CPU_P64 |
| 444.namd: | -DSPEC_CPU_P64 /TP |
| 447.dealII: | -D_Complex= -DSPEC_CPU_P64 -DBOOST_NO_INTRINSIC_WCHAR_T -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG |
| 450.soplex: | -DSPEC_CPU_P64 |
| 453.povray: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -D_Complex= -DSPEC_CPU_P64 -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 459.GemsFDTD: | -DSPEC_CPU_P64 |
| 465.tonto: | -DSPEC_CPU_P64 |
| 470.lbm: | -D_Complex= -DSPEC_CPU_P64 |
| 481.wrf: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 482.sphinx3: | -D_Complex= -DSPEC_CPU_P64 |
Base Optimization Flags
C benchmarks:
| -fast -Qparallel -F950000000 |
C++ benchmarks:
| -fast -Qparallel -Qcxx-features -F950000000 |
Fortran benchmarks:
| -fast -Qparallel -F950000000 |
Benchmarks using both Fortran and C:
| -fast -Qparallel -F950000000 |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc8 -Qc99 |
C++ benchmarks:
| icl -Qvc8 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc8 -Qc99 ifort |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -F950000000 |
C++ benchmarks:
| 444.namd: | basepeak = yes |
| 447.dealII: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx-features -F950000000 |
| 450.soplex: | Same as 447.dealII |
| 453.povray: | Same as 447.dealII |
Fortran benchmarks:
| 410.bwaves: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qparallel -F950000000 |
| 416.gamess: | -fast -F950000000 |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | Same as 410.bwaves |
Benchmarks using both Fortran and C:
| 435.gromacs: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -F950000000 |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | Same as 435.gromacs |
| 481.wrf: | basepeak = yes |
