| CPU2006 license: | 9001 | Test date: | Feb-2007 |
|---|---|---|---|
| Test sponsor: | Itautec | Hardware Availability: | Feb-2007 |
| Tested by: | Itautec | Software Availability: | May-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5345 |
| CPU Characteristics: | 1333MHz system bus |
| CPU MHz: | 2330 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1-2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (8x1GB DDR2-RAM PC2-5300F CAS 5-5-5) |
| Disk Subsystem: | 80 GB SATA, 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Enterprise Edition + SP1 (32-bit) |
| Compiler: | Intel C++ Compiler for IA32 version 9.1 Package ID W_CC_C_9.1.025 Build no 20060519Z Microsoft Visual Studio .NET 2003 7.1.3088 (for libraries) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | Microquill SmartHeap Library v.8.0 for SMP |

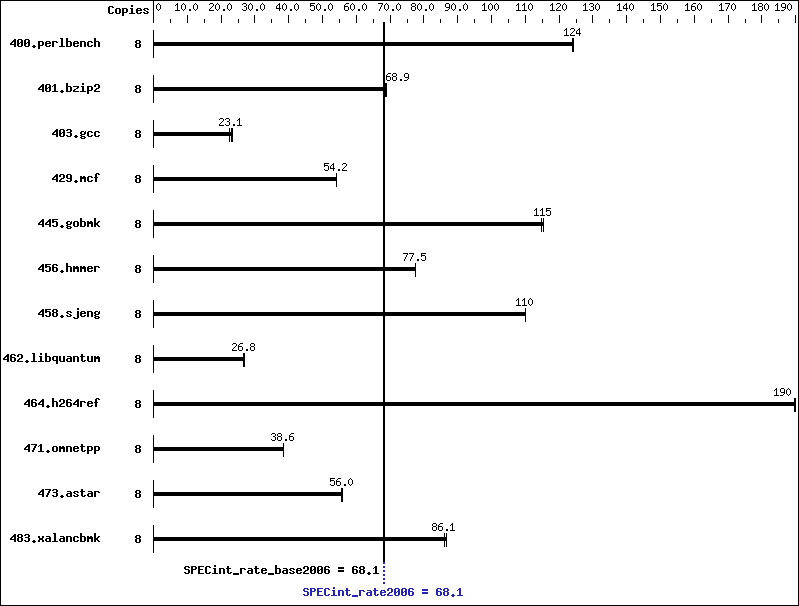

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 629 | 124 | 630 | 124 | 629 | 124 | 8 | 629 | 124 | 630 | 124 | 629 | 124 |
| 401.bzip2 | 8 | 1127 | 68.5 | 1120 | 68.9 | 1120 | 68.9 | 8 | 1127 | 68.5 | 1120 | 68.9 | 1120 | 68.9 |
| 403.gcc | 8 | 2857 | 22.5 | 2788 | 23.1 | 2768 | 23.3 | 8 | 2857 | 22.5 | 2788 | 23.1 | 2768 | 23.3 |
| 429.mcf | 8 | 1347 | 54.2 | 1348 | 54.1 | 1345 | 54.2 | 8 | 1347 | 54.2 | 1348 | 54.1 | 1345 | 54.2 |
| 445.gobmk | 8 | 731 | 115 | 727 | 116 | 728 | 115 | 8 | 731 | 115 | 727 | 116 | 728 | 115 |
| 456.hmmer | 8 | 964 | 77.4 | 963 | 77.5 | 964 | 77.5 | 8 | 964 | 77.4 | 963 | 77.5 | 964 | 77.5 |
| 458.sjeng | 8 | 879 | 110 | 879 | 110 | 879 | 110 | 8 | 879 | 110 | 879 | 110 | 879 | 110 |
| 462.libquantum | 8 | 6194 | 26.8 | 6169 | 26.9 | 6176 | 26.8 | 8 | 6194 | 26.8 | 6169 | 26.9 | 6176 | 26.8 |
| 464.h264ref | 8 | 932 | 190 | 934 | 190 | 934 | 190 | 8 | 932 | 190 | 934 | 190 | 934 | 190 |
| 471.omnetpp | 8 | 1297 | 38.6 | 1296 | 38.6 | 1297 | 38.5 | 8 | 1297 | 38.6 | 1296 | 38.6 | 1297 | 38.5 |
| 473.astar | 8 | 1009 | 55.7 | 1003 | 56.0 | 1003 | 56.0 | 8 | 1009 | 55.7 | 1003 | 56.0 | 1003 | 56.0 |
| 483.xalancbmk | 8 | 637 | 86.6 | 642 | 86.0 | 641 | 86.1 | 8 | 637 | 86.6 | 642 | 86.0 | 641 | 86.1 |
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Base Optimization Flags
C benchmarks:
| -fast /F512000000 shlSMPMt.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F512000000 shlSMPMt.lib -link /FORCE:MULTIPLE |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | basepeak = yes |
| 401.bzip2: | basepeak = yes |
| 403.gcc: | basepeak = yes |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | basepeak = yes |
| 456.hmmer: | basepeak = yes |
| 458.sjeng: | basepeak = yes |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | basepeak = yes |
C++ benchmarks:
| 471.omnetpp: | basepeak = yes |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
