| CPU2006 license: | 9001 | Test date: | Feb-2007 |
|---|---|---|---|
| Test sponsor: | Itautec | Hardware Availability: | Feb-2007 |
| Tested by: | Itautec | Software Availability: | May-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5335 |
| CPU Characteristics: | 1333MHz system bus |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1-2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8x2GB DDR2-RAM PC2-5300F CAS 5-5-5) |
| Disk Subsystem: | 73 GB SCSI, 10000RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Enterprise Edition + SP1 (32-bit) |
| Compiler: | Intel C++ Compiler for IA32 version 9.1 Package ID W_CC_C_9.1.025 Build no 20060519Z Intel Fortran Compiler for IA32 version 9.1 Package ID W_FC_C_9.1.025 Build no 20060519Z Microsoft Visual Studio .NET 2003 7.1.3088 (for libraries) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | Microquill SmartHeap Library v.8.0 for SMP |

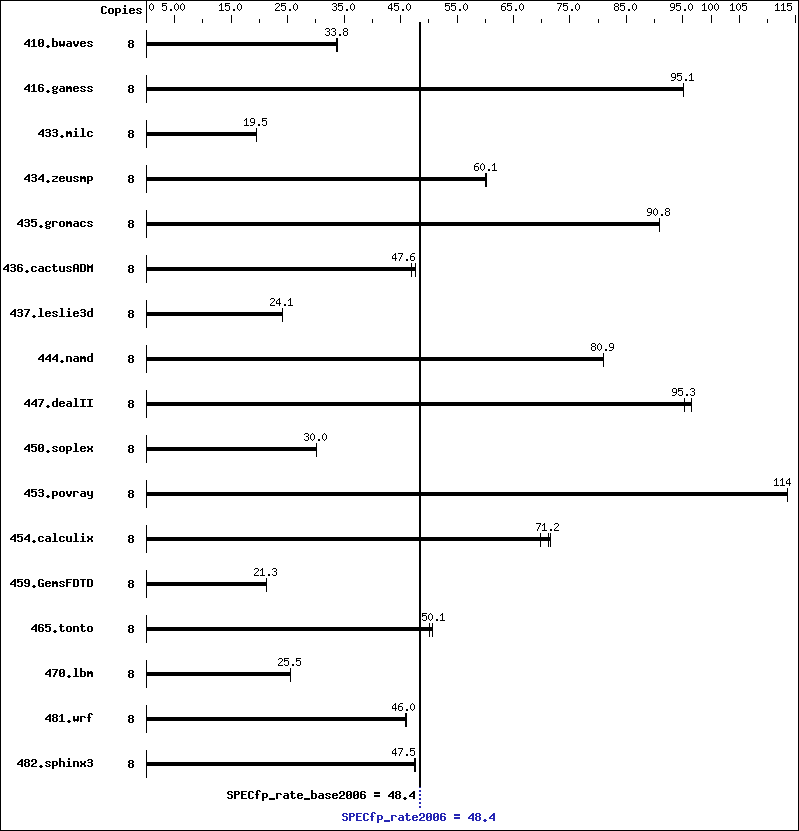

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 8 | 3228 | 33.7 | 3220 | 33.8 | 3218 | 33.8 | 8 | 3228 | 33.7 | 3220 | 33.8 | 3218 | 33.8 |
| 416.gamess | 8 | 1647 | 95.1 | 1647 | 95.1 | 1646 | 95.2 | 8 | 1647 | 95.1 | 1647 | 95.1 | 1646 | 95.2 |
| 433.milc | 8 | 3771 | 19.5 | 3777 | 19.4 | 3765 | 19.5 | 8 | 3771 | 19.5 | 3777 | 19.4 | 3765 | 19.5 |
| 434.zeusmp | 8 | 1211 | 60.1 | 1210 | 60.2 | 1211 | 60.1 | 8 | 1211 | 60.1 | 1210 | 60.2 | 1211 | 60.1 |
| 435.gromacs | 8 | 629 | 90.8 | 629 | 90.8 | 629 | 90.8 | 8 | 629 | 90.8 | 629 | 90.8 | 629 | 90.8 |
| 436.cactusADM | 8 | 2033 | 47.0 | 2007 | 47.6 | 2007 | 47.6 | 8 | 2033 | 47.0 | 2007 | 47.6 | 2007 | 47.6 |
| 437.leslie3d | 8 | 3123 | 24.1 | 3124 | 24.1 | 3125 | 24.1 | 8 | 3123 | 24.1 | 3124 | 24.1 | 3125 | 24.1 |
| 444.namd | 8 | 793 | 80.9 | 793 | 80.9 | 793 | 80.9 | 8 | 793 | 80.9 | 793 | 80.9 | 793 | 80.9 |
| 447.dealII | 8 | 960 | 95.3 | 948 | 96.5 | 961 | 95.3 | 8 | 960 | 95.3 | 948 | 96.5 | 961 | 95.3 |
| 450.soplex | 8 | 2222 | 30.0 | 2222 | 30.0 | 2221 | 30.0 | 8 | 2222 | 30.0 | 2222 | 30.0 | 2221 | 30.0 |
| 453.povray | 8 | 375 | 114 | 375 | 114 | 375 | 114 | 8 | 375 | 114 | 375 | 114 | 375 | 114 |
| 454.calculix | 8 | 922 | 71.5 | 927 | 71.2 | 945 | 69.8 | 8 | 922 | 71.5 | 927 | 71.2 | 945 | 69.8 |
| 459.GemsFDTD | 8 | 3978 | 21.3 | 3986 | 21.3 | 3983 | 21.3 | 8 | 3978 | 21.3 | 3986 | 21.3 | 3983 | 21.3 |
| 465.tonto | 8 | 1571 | 50.1 | 1552 | 50.7 | 1572 | 50.1 | 8 | 1571 | 50.1 | 1552 | 50.7 | 1572 | 50.1 |
| 470.lbm | 8 | 4318 | 25.5 | 4317 | 25.5 | 4316 | 25.5 | 8 | 4318 | 25.5 | 4317 | 25.5 | 4316 | 25.5 |
| 481.wrf | 8 | 1945 | 46.0 | 1939 | 46.1 | 1943 | 46.0 | 8 | 1945 | 46.0 | 1939 | 46.1 | 1943 | 46.0 |
| 482.sphinx3 | 8 | 3280 | 47.5 | 3280 | 47.5 | 3274 | 47.6 | 8 | 3280 | 47.5 | 3280 | 47.5 | 3274 | 47.6 |
General Notes
This result was measured on the Servidor Itautec MX221. The Servidor Itautec MX221 and the Servidor Itautec MX201 are electronically equivalent.
Base Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Base Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Base Optimization Flags
C benchmarks:
| -fast /F950000000 shlSMPMt.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F950000000 shlSMPMt.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Peak Optimization Flags
C benchmarks:
| 433.milc: | basepeak = yes |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | basepeak = yes |
C++ benchmarks:
| 444.namd: | basepeak = yes |
| 447.dealII: | basepeak = yes |
| 450.soplex: | basepeak = yes |
| 453.povray: | basepeak = yes |
Fortran benchmarks:
| 410.bwaves: | basepeak = yes |
| 416.gamess: | basepeak = yes |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | basepeak = yes |
Benchmarks using both Fortran and C:
| 435.gromacs: | basepeak = yes |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | basepeak = yes |
| 481.wrf: | basepeak = yes |
