| CPU2006 license: | 11 | Test date: | Jan-2007 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Feb-2007 |
| Tested by: | IBM Corporation | Software Availability: | Aug-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 5110 |
| CPU Characteristics: | 1066MHz system bus |
| CPU MHz: | 1600 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 x 2GB DDR2-5300F ECC) |
| Disk Subsystem: | 1 x 74 GB SAS, 1000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Microsoft Windows Server 2003 Enterprise x64 Edition + SP1 (64-bit) |
| Compiler: | Intel C++ Compiler for IA32 version 9.1 Build no 20060816 Intel Fortran Compiler for IA32 version 9.1 Build no 20060816 Microsoft Visual Studio .Net 2003 (for libraries) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | Not Applicable |
| Other Software: | Smart Heap Library, Version 8 |

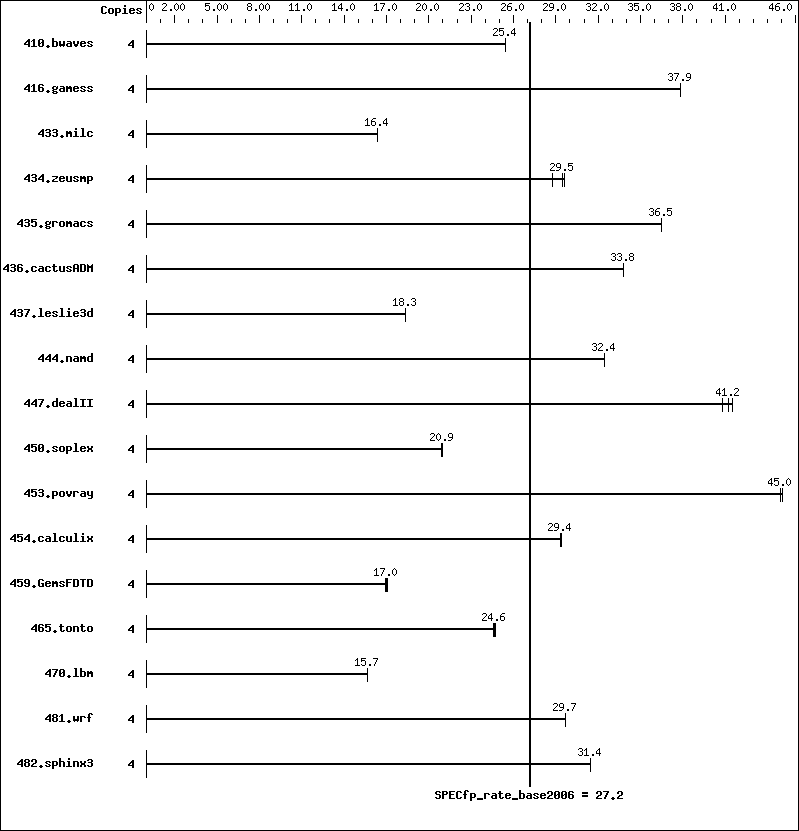

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 4 | 2139 | 25.4 | 2137 | 25.4 | 2139 | 25.4 | |||||||
| 416.gamess | 4 | 2069 | 37.9 | 2069 | 37.9 | 2069 | 37.9 | |||||||
| 433.milc | 4 | 2241 | 16.4 | 2245 | 16.4 | 2244 | 16.4 | |||||||
| 434.zeusmp | 4 | 1267 | 28.7 | 1230 | 29.6 | 1235 | 29.5 | |||||||
| 435.gromacs | 4 | 782 | 36.5 | 782 | 36.5 | 782 | 36.5 | |||||||
| 436.cactusADM | 4 | 1413 | 33.8 | 1413 | 33.8 | 1413 | 33.8 | |||||||
| 437.leslie3d | 4 | 2047 | 18.4 | 2053 | 18.3 | 2049 | 18.3 | |||||||
| 444.namd | 4 | 990 | 32.4 | 990 | 32.4 | 990 | 32.4 | |||||||
| 447.dealII | 4 | 1101 | 41.6 | 1111 | 41.2 | 1122 | 40.8 | |||||||
| 450.soplex | 4 | 1592 | 21.0 | 1596 | 20.9 | 1593 | 20.9 | |||||||
| 453.povray | 4 | 472 | 45.1 | 472 | 45.0 | 474 | 44.9 | |||||||
| 454.calculix | 4 | 1124 | 29.4 | 1124 | 29.4 | 1121 | 29.4 | |||||||
| 459.GemsFDTD | 4 | 2500 | 17.0 | 2490 | 17.0 | 2506 | 16.9 | |||||||
| 465.tonto | 4 | 1600 | 24.6 | 1593 | 24.7 | 1597 | 24.6 | |||||||
| 470.lbm | 4 | 3504 | 15.7 | 3505 | 15.7 | 3505 | 15.7 | |||||||
| 481.wrf | 4 | 1506 | 29.7 | 1506 | 29.7 | 1506 | 29.7 | |||||||
| 482.sphinx3 | 4 | 2481 | 31.4 | 2481 | 31.4 | 2478 | 31.5 | |||||||
Base Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Base Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Base Optimization Flags
C benchmarks:
| -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -fast /F950000000 -link /FORCE:MULTIPLE |
