SPEC® CFP2006 Result

Intel Corporation

Intel DG965WH motherboard
(3.4 GHz, Intel Pentium D processor 950)

SPECfp®_rate2006 = Not Run

SPECfp_rate_base2006 = 19.7

CPU2006 license:	13	Test date:	Jan-2007
Test sponsor:	Intel Corporation	Hardware Availability:	Aug-2006
Tested by:	Intel Corporation	Software Availability:	Aug-2006

Hardware
CPU Name:	Intel Pentium D 950
CPU Characteristics:	3.4 GHz, 800 MHz bus
CPU MHz:	3400
FPU:	Integrated
CPU(s) enabled:	2 cores, 1 chip, 2 cores/chip
CPU(s) orderable:	1 chip
Primary Cache:	12 K micro-ops I + 16 KB D on chip per core
Secondary Cache:	2 MB I+D on chip per core
L3 Cache:	None
Other Cache:	None
Memory:	2 GB (2 1GB Micron MT16HTF12864AY-80ED4 DDR2 800, CL5)
Disk Subsystem:	Maxtor DiamondMax 10 6B300S0 300GB NCQ Serial ATA (7200 RPM, 16MB cache)
Other Hardware:	SoundBlaster Live! PCI card

Software
Operating System:	Windows XP Professional w/ SP2
Compiler:	Intel C++ and Fortran Compiler for IA32 version 9.1 Build no 20060816 Microsoft Visual Studio .Net 2003 (for libraries)
Auto Parallel:	No
File System:	NTFS
System State:	Default
Base Pointers:	32-bit
Peak Pointers:	Not Applicable
Other Software:	SmartHeap Library Version 8.0 from http://www.microquill.com/

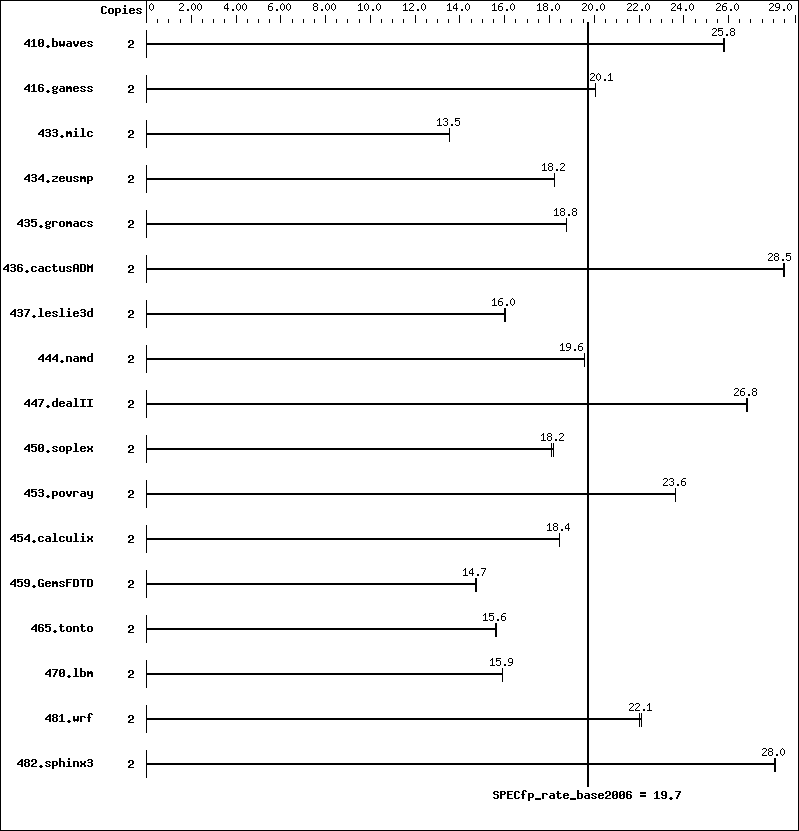

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	2	1054	25.8	1053	25.8	1053	25.8
416.gamess	2	1952	20.1	1952	20.1	1952	20.1
433.milc	2	1357	13.5	1356	13.5	1357	13.5
434.zeusmp	2	999	18.2	999	18.2	998	18.2
435.gromacs	2	761	18.8	761	18.8	761	18.8
436.cactusADM	2	839	28.5	840	28.5	840	28.5
437.leslie3d	2	1175	16.0	1175	16.0	1173	16.0
444.namd	2	819	19.6	819	19.6	819	19.6
447.dealII	2	853	26.8	853	26.8	854	26.8
450.soplex	2	917	18.2	917	18.2	922	18.1
453.povray	2	450	23.6	450	23.6	450	23.6
454.calculix	2	894	18.4	895	18.4	895	18.4
459.GemsFDTD	2	1444	14.7	1444	14.7	1442	14.7
465.tonto	2	1261	15.6	1261	15.6	1260	15.6
470.lbm	2	1727	15.9	1727	15.9	1727	15.9
481.wrf	2	1010	22.1	1014	22.0	1011	22.1
482.sphinx3	2	1390	28.0	1391	28.0	1388	28.1

General Notes

 Tested systems can be used with Shin-G ATX case, Antec NeoPower 480W power supply
 Product description located as of 1/2007:
 http://www.intel.com/products/motherboard/DG965WH/index.htm
 The system bus runs at 800 MHz
 System was configured with Single nVidia Quad SLI Geforce 7950 GX2

Base Compiler Invocation

C benchmarks:

icl -Qvc7.1 -Qc99

C++ benchmarks:

icl -Qvc7.1

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc7.1 -Qc99 ifort

Base Portability Flags

436.cactusADM:	-Qlowercase /assume:underscore
444.namd:	-TP
447.dealII:	-DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:	-DSPEC_CPU_WINDOWS_ICL
454.calculix:	-DSPEC_CPU_NOZMODIFIER -Qlowercase
481.wrf:	-DSPEC_CPU_WINDOWS_ICL

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic91-flags.20090715.06.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic91-flags.20090715.06.xml.
