| CPU2006 license: | 55 | Test date: | Jan-2007 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | Jan-2007 |
| Tested by: | Dell Inc. | Software Availability: | Oct-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X3220 |
| CPU Characteristics: | 1066MHz system bus |
| CPU MHz: | 2400 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 4 GB (4x1 GB 667MHz ECC DDR2 SDRAM) |
| Disk Subsystem: | 1 x 73GB SAS 10000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Standard Edition |
| Compiler: | Intel C++ Compiler 9.1 for IA32 (20061103Z) Intel FORTRAN Compiler 9.1 for IA32 (20061103Z) Microsoft Visual Studio 2005 (8.0.50727.42) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library 8.0 |

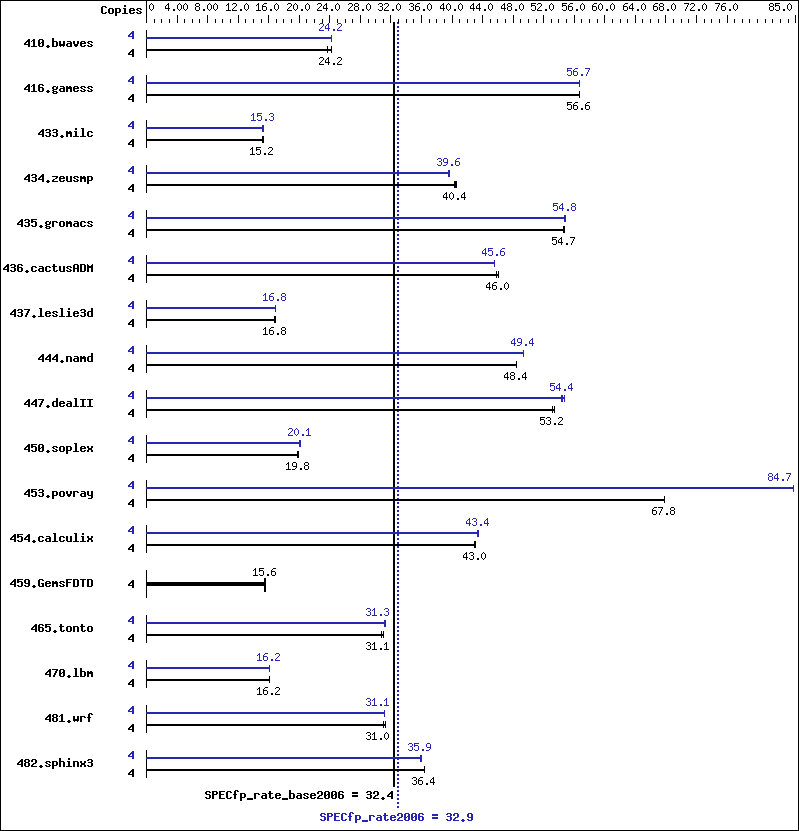

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 4 | 2295 | 23.7 | 2244 | 24.2 | 2244 | 24.2 | 4 | 2243 | 24.2 | 2243 | 24.2 | 2243 | 24.2 |
| 416.gamess | 4 | 1383 | 56.6 | 1382 | 56.7 | 1383 | 56.6 | 4 | 1382 | 56.7 | 1382 | 56.7 | 1382 | 56.7 |
| 433.milc | 4 | 2420 | 15.2 | 2407 | 15.3 | 2409 | 15.2 | 4 | 2408 | 15.3 | 2407 | 15.3 | 2405 | 15.3 |
| 434.zeusmp | 4 | 902 | 40.3 | 901 | 40.4 | 897 | 40.6 | 4 | 916 | 39.7 | 918 | 39.6 | 921 | 39.5 |
| 435.gromacs | 4 | 522 | 54.7 | 522 | 54.7 | 523 | 54.6 | 4 | 521 | 54.8 | 521 | 54.8 | 521 | 54.8 |
| 436.cactusADM | 4 | 1044 | 45.8 | 1038 | 46.0 | 1038 | 46.0 | 4 | 1049 | 45.6 | 1049 | 45.6 | 1048 | 45.6 |
| 437.leslie3d | 4 | 2235 | 16.8 | 2232 | 16.8 | 2232 | 16.8 | 4 | 2231 | 16.9 | 2232 | 16.8 | 2232 | 16.8 |
| 444.namd | 4 | 662 | 48.4 | 662 | 48.4 | 663 | 48.4 | 4 | 650 | 49.4 | 649 | 49.4 | 649 | 49.4 |
| 447.dealII | 4 | 857 | 53.4 | 860 | 53.2 | 861 | 53.2 | 4 | 841 | 54.4 | 836 | 54.7 | 843 | 54.3 |
| 450.soplex | 4 | 1681 | 19.9 | 1681 | 19.8 | 1692 | 19.7 | 4 | 1656 | 20.1 | 1665 | 20.0 | 1655 | 20.2 |
| 453.povray | 4 | 314 | 67.8 | 314 | 67.8 | 314 | 67.8 | 4 | 251 | 84.7 | 251 | 84.7 | 251 | 84.7 |
| 454.calculix | 4 | 767 | 43.0 | 766 | 43.1 | 769 | 42.9 | 4 | 759 | 43.5 | 762 | 43.3 | 760 | 43.4 |
| 459.GemsFDTD | 4 | 2726 | 15.6 | 2723 | 15.6 | 2736 | 15.5 | 4 | 2726 | 15.6 | 2723 | 15.6 | 2736 | 15.5 |
| 465.tonto | 4 | 1267 | 31.1 | 1280 | 30.7 | 1267 | 31.1 | 4 | 1257 | 31.3 | 1258 | 31.3 | 1263 | 31.2 |
| 470.lbm | 4 | 3400 | 16.2 | 3401 | 16.2 | 3400 | 16.2 | 4 | 3402 | 16.2 | 3403 | 16.2 | 3403 | 16.2 |
| 481.wrf | 4 | 1441 | 31.0 | 1440 | 31.0 | 1428 | 31.3 | 4 | 1435 | 31.1 | 1432 | 31.2 | 1435 | 31.1 |
| 482.sphinx3 | 4 | 2140 | 36.4 | 2141 | 36.4 | 2145 | 36.3 | 4 | 2171 | 35.9 | 2171 | 35.9 | 2166 | 36.0 |
General Notes
32-bit binaries were built on Windows XP Professional x64 Edition
Base Compiler Invocation
C benchmarks:
| icl -Qc99 |
C++ benchmarks:
| icl |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qc99 ifort |
Base Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Base Optimization Flags
C benchmarks:
| -fast /F512000000 shlW32M.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F512000000 shlW32M.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -fast /F1000000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -fast /F1000000000 -link /FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks:
| icl -Qc99 |
C++ benchmarks:
| icl |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qc99 ifort |
Peak Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Peak Optimization Flags
C benchmarks:
| ONESTEP -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 shlW32M.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| ONESTEP -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx_features /F512000000 shlW32M.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| 410.bwaves: | ONESTEP -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F1000000000 -link /FORCE:MULTIPLE |
| 416.gamess: | ONESTEP -fast /F1000000000 -link /FORCE:MULTIPLE |
| 434.zeusmp: | Same as 410.bwaves |
| 437.leslie3d: | Same as 410.bwaves |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | Same as 410.bwaves |
Benchmarks using both Fortran and C:
| 435.gromacs: | -fast /F1000000000 -link /FORCE:MULTIPLE |
| 436.cactusADM: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F1000000000 -link /FORCE:MULTIPLE |
| 454.calculix: | Same as 436.cactusADM |
| 481.wrf: | Same as 435.gromacs |
