| CPU2006 license: | 11 | Test date: | Jan-2007 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Feb-2007 |
| Tested by: | IBM Corporation | Software Availability: | Aug-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X3210 |
| CPU Characteristics: | 1066MHz system bus |
| CPU MHz: | 2133 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (4 x 2GB PC2-5300 ECC) |
| Disk Subsystem: | 1 x 73 GB SAS, 10000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Microsoft Windows Server 2003 Enterprise x64 Edition + SP1 (64-bit) |
| Compiler: | Intel C++ Compiler for IA32 version 9.1 Build no 20060816 Intel Fortran Compiler for IA32 version 9.1 Build no 20060816 Microsoft Visual Studio .Net 2003 (for libraries) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | Not Applicable |
| Other Software: | Smart Heap Library, Version 8 |

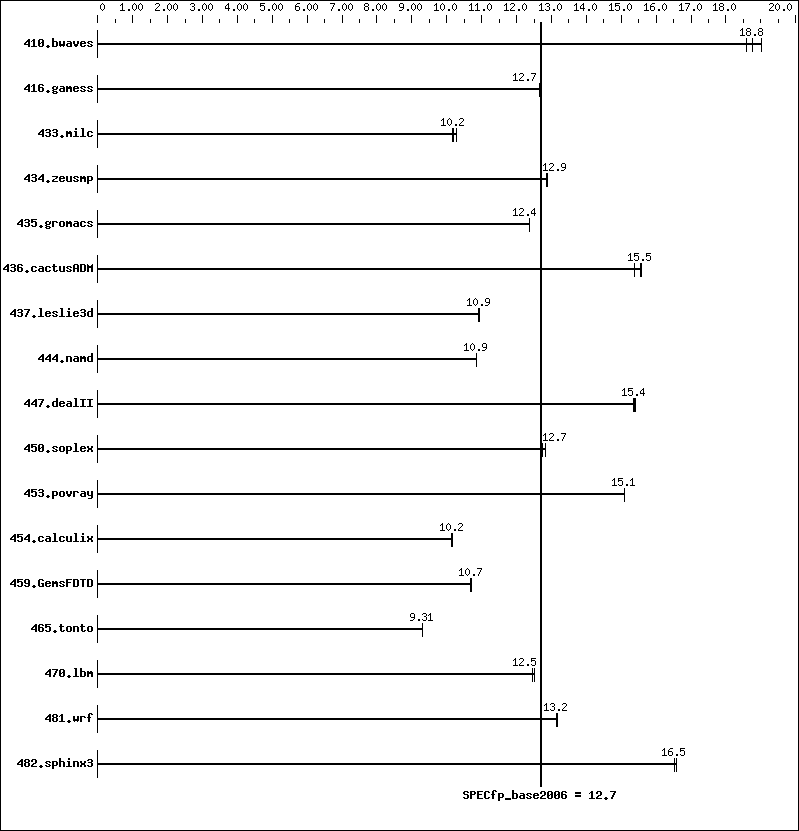

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 715 | 19.0 | 724 | 18.8 | 731 | 18.6 | ||||||
| 416.gamess | 1547 | 12.7 | 1546 | 12.7 | 1546 | 12.7 | ||||||
| 433.milc | 892 | 10.3 | 901 | 10.2 | 903 | 10.2 | ||||||
| 434.zeusmp | 706 | 12.9 | 708 | 12.8 | 707 | 12.9 | ||||||
| 435.gromacs | 577 | 12.4 | 577 | 12.4 | 577 | 12.4 | ||||||
| 436.cactusADM | 767 | 15.6 | 777 | 15.4 | 769 | 15.5 | ||||||
| 437.leslie3d | 859 | 10.9 | 859 | 10.9 | 861 | 10.9 | ||||||
| 444.namd | 739 | 10.9 | 739 | 10.9 | 739 | 10.9 | ||||||
| 447.dealII | 743 | 15.4 | 744 | 15.4 | 745 | 15.4 | ||||||
| 450.soplex | 651 | 12.8 | 657 | 12.7 | 655 | 12.7 | ||||||
| 453.povray | 353 | 15.1 | 353 | 15.1 | 353 | 15.1 | ||||||
| 454.calculix | 812 | 10.2 | 812 | 10.2 | 813 | 10.1 | ||||||
| 459.GemsFDTD | 991 | 10.7 | 992 | 10.7 | 994 | 10.7 | ||||||
| 465.tonto | 1056 | 9.32 | 1057 | 9.31 | 1057 | 9.31 | ||||||
| 470.lbm | 1103 | 12.5 | 1099 | 12.5 | 1104 | 12.4 | ||||||
| 481.wrf | 847 | 13.2 | 849 | 13.2 | 850 | 13.1 | ||||||
| 482.sphinx3 | 1175 | 16.6 | 1179 | 16.5 | 1180 | 16.5 | ||||||
Base Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Base Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Base Optimization Flags
C benchmarks:
| -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -fast /F950000000 -link /FORCE:MULTIPLE |
