SPEC® CFP2006 Result

Hewlett-Packard Company

HP Integrity rx3600
(1.4GHz/12MB Dual-Core Intel Itanium 2)

SPECfp®_rate2006 = 43.1

SPECfp_rate_base2006 = 41.7

CPU2006 license:	03	Test date:	Jan-2007
Test sponsor:	Hewlett-Packard Company	Hardware Availability:	Sep-2006
Tested by:	Hewlett-Packard Company	Software Availability:	Sep-2006

Hardware
CPU Name:	Dual-Core Intel Itanium 2 9020
CPU Characteristics:	1.4GHz/12MB, 533MHz FSB
CPU MHz:	1400
FPU:	Integrated
CPU(s) enabled:	4 cores, 2 chips, 2 cores/chip
CPU(s) orderable:	1-2 chips
Primary Cache:	16 KB I + 16 KB D on chip per core
Secondary Cache:	1 MB I + 256 KB D on chip per core
L3 Cache:	6 MB I+D on chip per core
Other Cache:	None
Memory:	16 GB (8x2GB DIMMs, AD124A 8-DIMM memory carrier)
Disk Subsystem:	73GB 10K RPM SAS
Other Hardware:	None

Software
Operating System:	HPUX11i-TCOE B.11.23.0609
Compiler:	HP C/aC++ Developer's Bundle C.11.23.12 HP Fortran90 Compiler B.11.23.32
Auto Parallel:	No
File System:	vxfs
System State:	Multi-user
Base Pointers:	32-bit
Peak Pointers:	32-bit
Other Software:	None

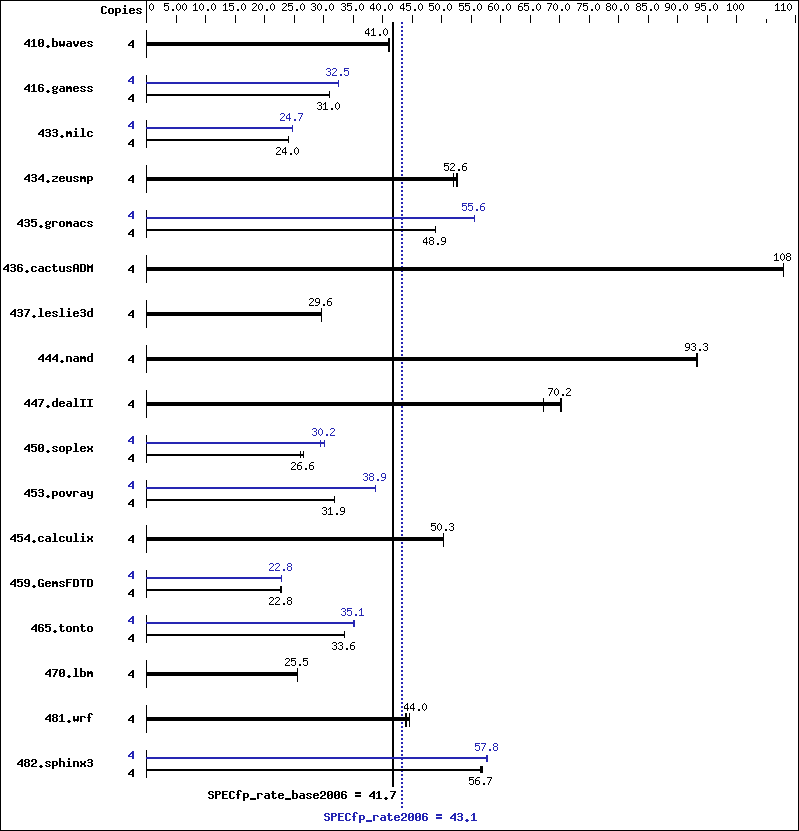

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	4	1321	41.1	1325	41.0	1324	41.0	4	1321	41.1	1325	41.0	1324	41.0
416.gamess	4	2530	31.0	2528	31.0	2526	31.0	4	2412	32.5	2412	32.5	2412	32.5
433.milc	4	1531	24.0	1531	24.0	1530	24.0	4	1489	24.7	1489	24.7	1489	24.7
434.zeusmp	4	691	52.7	699	52.1	692	52.6	4	691	52.7	699	52.1	692	52.6
435.gromacs	4	584	48.9	584	48.9	584	48.9	4	514	55.6	514	55.6	514	55.6
436.cactusADM	4	443	108	443	108	443	108	4	443	108	443	108	443	108
437.leslie3d	4	1269	29.6	1268	29.7	1268	29.6	4	1269	29.6	1268	29.7	1268	29.6
444.namd	4	344	93.3	344	93.4	344	93.2	4	344	93.3	344	93.4	344	93.2
447.dealII	4	652	70.2	652	70.2	681	67.2	4	652	70.2	652	70.2	681	67.2
450.soplex	4	1277	26.1	1253	26.6	1252	26.6	4	1132	29.5	1105	30.2	1103	30.2
453.povray	4	668	31.8	668	31.9	668	31.9	4	549	38.8	547	38.9	547	38.9
454.calculix	4	657	50.3	655	50.4	656	50.3	4	657	50.3	655	50.4	656	50.3
459.GemsFDTD	4	1861	22.8	1863	22.8	1862	22.8	4	1862	22.8	1862	22.8	1861	22.8
465.tonto	4	1171	33.6	1171	33.6	1171	33.6	4	1118	35.2	1121	35.1	1121	35.1
470.lbm	4	2153	25.5	2153	25.5	2153	25.5	4	2153	25.5	2153	25.5	2153	25.5
481.wrf	4	1020	43.8	1003	44.6	1015	44.0	4	1020	43.8	1003	44.6	1015	44.0
482.sphinx3	4	1377	56.6	1371	56.9	1376	56.7	4	1348	57.9	1349	57.8	1355	57.5

Operating System Notes

   The system had the September 2006 HP-UX 11i v2 Technical Computing
   Operating Environment (TCOE) and compilers installed, along with
   the following patches:

   PHSS_34858  linker + fdp cumulative patch
   PHSS_34853  Math Library Cumulative Patch
   PHSS_34854  Integrity Unwind Library
   PHSS_34855  HP C Compiler (A.06.12)
   PHSS_34856  aC++ Compiler (A.06.12)
   PHSS_34857  u2comp/be/plugin library patch
   PHSS_34395  FORTRAN I/O Library [libIO77]
   PHSS_34397  FORTRAN Intrinsics [libF90 B.11.23.17]
   PHSS_34399  Fortran Product Patch, v3.1 to v3.1.1
   PHKL_34020  Perfmon enhancements and Itanium Dual-Core

   The following kernel tunables were set, in addition to the defaults
   set by the Technical Computing OE:

   dbc_max_pct=20
   dbc_min_pct=20
   maxdsiz=3221225472
   maxssiz=401604608

Base Compiler Invocation

Base Portability Flags

453.povray:	-DSPEC_CPU_NEED_INVHYP
454.calculix:	-DSPEC_CPU_NOZMODIFIER
481.wrf:	-DNOUNDERSCORE +noppu

Peak Compiler Invocation

C benchmarks:

/opt/ansic/bin/cc -Ae

C++ benchmarks:

/opt/aCC/bin/aCC -Aa

Fortran benchmarks:

/opt/fortran90/bin/f90

Benchmarks using both Fortran and C:

/opt/ansic/bin/cc -Ae /opt/fortran90/bin/f90

Peak Portability Flags

453.povray:	-DSPEC_CPU_NEED_INVHYP
454.calculix:	-DSPEC_CPU_NOZMODIFIER
481.wrf:	-DNOUNDERSCORE +noppu

Peak Optimization Flags

C benchmarks:

433.milc:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Onoparmsoverlap -Wl,-N
470.lbm:	basepeak = yes
482.sphinx3:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Onoparmsoverlap

C++ benchmarks:

444.namd:	basepeak = yes
447.dealII:	basepeak = yes
450.soplex:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Onoparmsoverlap -Wl,-N
453.povray:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M

Fortran benchmarks:

410.bwaves:	basepeak = yes
416.gamess:	+Ofaster -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Odataprefetch=direct -Wl,-N
434.zeusmp:	basepeak = yes
437.leslie3d:	basepeak = yes
459.GemsFDTD:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Odataprefetch=direct -Wl,-N
465.tonto:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Odataprefetch=direct

Benchmarks using both Fortran and C:

435.gromacs:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Onoparmsoverlap
436.cactusADM:	basepeak = yes
454.calculix:	basepeak = yes
481.wrf:	basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.07.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.07.xml.
