SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Bull SAS

NovaScale B260 (Intel Xeon processor 5130,2.0GHz)

SPECfp®2006 = 11.0

CPU2006 license: 20 Test date: Dec-2006
Test sponsor: Bull SAS Hardware Availability: Dec-2006
Tested by: Bull SAS Software Availability: Dec-2006

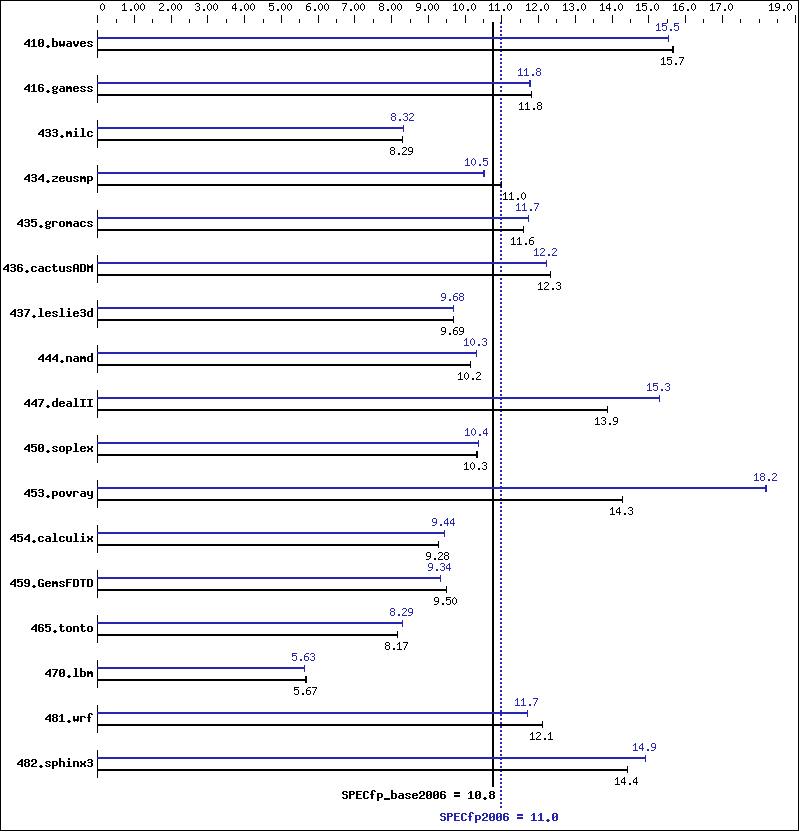

Benchmark results graph
Hardware
CPU Name: Intel Xeon 5130
CPU Characteristics: 2.0 GHz, 4MB L2, 1333MHz bus
CPU MHz: 2000
FPU: Integrated
CPU(s) enabled: 1 core, 1 chip, 2 cores/chip
CPU(s) orderable: 1 to 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 8 GB (2GB DIMMx4, FB-DIMM PC2-5300F ECC CL5)
Disk Subsystem: 73 GB SAS, 10000RPM
Other Hardware: None
Software
Operating System: Windows Server 2003 Enterprise Edition (32 bits)
Service Pack1
Compiler: Intel C++ Compiler for IA32 version 9.1
Package ID W_CC_C_9.1.033 Build no 20061103Z
Intel Fortran Compiler for IA32 version 9.1
Package ID W_FC_C_9.1.033 Build no 20061103Z
Microsoft Visual Studio .NET 2003 (lib & linker)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: MicroQuill SmartHeap Library 8.0 (shlW32M.lib)

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 867 15.7  868 15.7  868 15.7  875 15.5  875 15.5  875 15.5
416.gamess 1659 11.8  1659 11.8  1659 11.8  1664 11.8  1664 11.8  1664 11.8
433.milc 1108 8.28 1108 8.29 1107 8.29 1104 8.32 1103 8.33 1103 8.32
434.zeusmp 827 11.0  827 11.0  828 11.0  865 10.5  865 10.5  866 10.5
435.gromacs 616 11.6  616 11.6  616 11.6  609 11.7  609 11.7  609 11.7
436.cactusADM 969 12.3  969 12.3  969 12.3  978 12.2  978 12.2  978 12.2
437.leslie3d 971 9.69 971 9.69 971 9.68 971 9.68 971 9.68 971 9.68
444.namd 790 10.2  790 10.2  790 10.2  778 10.3  778 10.3  778 10.3
447.dealII 825 13.9  825 13.9  824 13.9  748 15.3  748 15.3  748 15.3
450.soplex 808 10.3  809 10.3  808 10.3  804 10.4  804 10.4  805 10.4
453.povray 373 14.3  373 14.3  373 14.3  292 18.2  292 18.2  292 18.2
454.calculix 889 9.28 890 9.27 889 9.28 874 9.44 874 9.44 874 9.44
459.GemsFDTD 1119 9.48 1117 9.50 1117 9.50 1137 9.34 1136 9.34 1136 9.34
465.tonto 1205 8.17 1206 8.16 1205 8.17 1186 8.29 1187 8.29 1188 8.29
470.lbm 2423 5.67 2424 5.67 2424 5.67 2439 5.63 2439 5.63 2439 5.63
481.wrf 923 12.1  923 12.1  923 12.1  956 11.7  956 11.7  956 11.7
482.sphinx3 1352 14.4  1353 14.4  1352 14.4  1308 14.9  1308 14.9  1308 14.9

General Notes

Other Configuration Notes
   /NUMPROC=1 flag was added to boot.ini to invoke
   uniprocessor environment

Base Compiler Invocation

C benchmarks:

 icl   -Qvc7.1   -Qc99

C++ benchmarks:

 icl   -Qvc7.1

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc7.1   -Qc99   ifort

Base Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Base Optimization Flags

C benchmarks:

 -fast   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   /F950000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -fast   /F950000000    -link /FORCE:MULTIPLE

Peak Compiler Invocation

C benchmarks:

 icl   -Qvc7.1   -Qc99

C++ benchmarks:

 icl   -Qvc7.1

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc7.1   -Qc99   ifort

Peak Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Peak Optimization Flags

C benchmarks:

 -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F950000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F950000000    -link /FORCE:MULTIPLE

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/flags.20090714.00.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/flags.20090714.00.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 10:18:37 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 6 February 2007.
