SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Itautec

Servidor Itautec ZX440 (Intel Xeon 7140M
processor)

CPU2006 license: 9001 Test date: Jan-2007
Test sponsor: Itautec Hardware Availability: Jul-2006
Tested by: Itautec Software Availability: May-2006

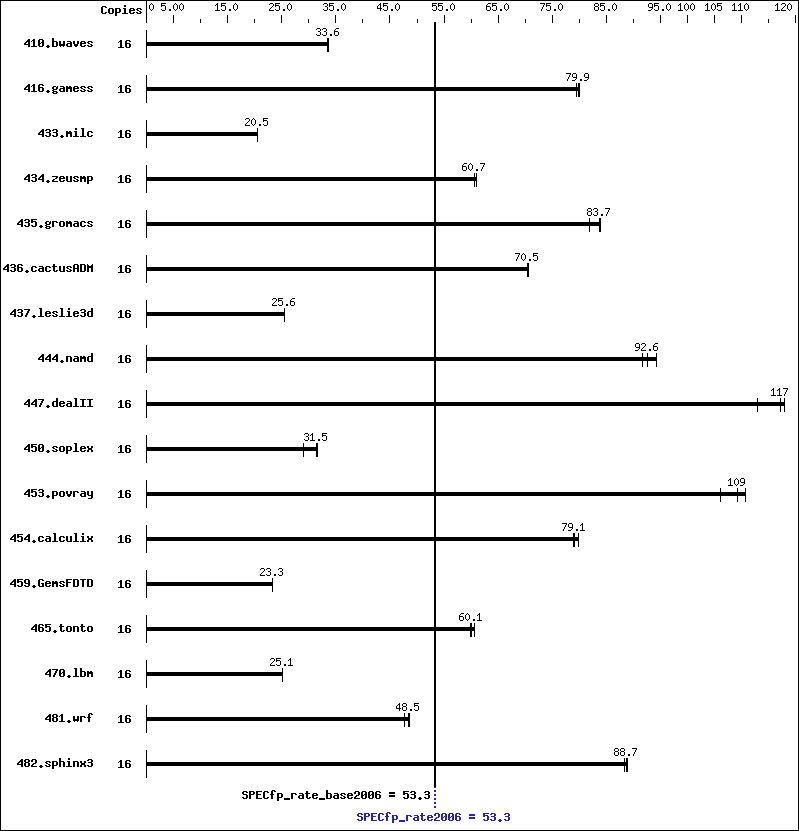

Benchmark results graph
Hardware
CPU Name: Intel Xeon 7140M
CPU Characteristics: Dual Core, 3.40 GHz, 800MHz System Bus
CPU MHz: 3400
FPU: Integrated
CPU(s) enabled: 8 cores, 4 chips, 2 cores/chip, 2 threads/core
CPU(s) orderable: 1-4 chips
Primary Cache: 12 K micro-ops I + 16 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 16 MB I+D on chip per chip
Other Cache: None
Memory: 16 GB (16x1GB DDR2-RAM, PC2-3200R, CAS 3-3-3)
Disk Subsystem: 36 GB SCSI, 10000RPM
Other Hardware: None
Software
Operating System: Windows Server 2003 Enterprise Edition + SP1
(32-bit)
Compiler: Intel C++ Compiler for IA32 version 9.1
Package ID W_CC_C_9.1.025 Build no 20060519Z
Intel Fortran Compiler for IA32 version 9.1
Package ID W_FC_C_9.1.025 Build no 20060519Z
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: Not Applicable
Other Software: Microquill SmartHeap Library v.8.0 for SMP

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 16 6474 33.6 6494 33.5 6467 33.6 16 6474 33.6 6494 33.5 6467 33.6
416.gamess 16 3917 80.0 3922 79.9 3938 79.6 16 3917 80.0 3922 79.9 3938 79.6
433.milc 16 7168 20.5 7152 20.5 7158 20.5 16 7168 20.5 7152 20.5 7158 20.5
434.zeusmp 16 2390 60.9 2399 60.7 2399 60.7 16 2390 60.9 2399 60.7 2399 60.7
435.gromacs 16 1365 83.7 1360 84.0 1394 82.0 16 1365 83.7 1360 84.0 1394 82.0
436.cactusADM 16 2714 70.5 2712 70.5 2714 70.5 16 2714 70.5 2712 70.5 2714 70.5
437.leslie3d 16 5884 25.6 5886 25.6 5879 25.6 16 5884 25.6 5886 25.6 5879 25.6
444.namd 16 1362 94.2 1399 91.7 1385 92.6 16 1362 94.2 1399 91.7 1385 92.6
447.dealII 16 1621 113   1562 117   1553 118   16 1621 113   1562 117   1553 118
450.soplex 16 4226 31.6 4238 31.5 4605 29.0 16 4226 31.6 4238 31.5 4605 29.0
453.povray 16 769 111   803 106   780 109   16 769 111   803 106   780 109
454.calculix 16 1653 79.8 1672 78.9 1668 79.1 16 1653 79.8 1672 78.9 1668 79.1
459.GemsFDTD 16 7265 23.4 7283 23.3 7281 23.3 16 7265 23.4 7283 23.3 7281 23.3
465.tonto 16 2626 60.0 2598 60.6 2620 60.1 16 2626 60.0 2598 60.6 2620 60.1
470.lbm 16 8751 25.1 8761 25.1 8754 25.1 16 8751 25.1 8761 25.1 8754 25.1
481.wrf 16 3743 47.7 3688 48.5 3682 48.5 16 3743 47.7 3688 48.5 3682 48.5
482.sphinx3 16 3515 88.7 3507 88.9 3526 88.4 16 3515 88.7 3507 88.9 3526 88.4

Platform Notes

Bios Settings:
  Hardware Prefetch enabled:
  prefetch data in order to shorten execution
  cycles and maximize data processing efficiency.

  Snoop Filter enabled:
  Preserves cache coherency while minimizing snoops to remote nodes.

  Memory Array set to High-Performance Memory Array:
  Memory is up to 4-way interleaved (Memory RAID disabled).

Base Compiler Invocation

C benchmarks:

 icl   -Qvc7.1   -Qc99

C++ benchmarks:

 icl   -Qvc7.1

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc7.1   -Qc99   ifort

Base Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Base Optimization Flags

C benchmarks:

 -fast   /F950000000   shlSMPMt.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   /F950000000   shlSMPMt.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   /F950000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -fast   /F950000000    -link /FORCE:MULTIPLE

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  basepeak = yes
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  basepeak = yes
447.dealII:  basepeak = yes
450.soplex:  basepeak = yes
453.povray:  basepeak = yes

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  basepeak = yes
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  basepeak = yes

Benchmarks using both Fortran and C:

435.gromacs:  basepeak = yes
436.cactusADM:  basepeak = yes
454.calculix:  basepeak = yes
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic91-flags.20090715.02.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic91-flags.20090715.02.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 10:18:12 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 6 February 2007.
