| CPU2006 license: | 03 | Test date: | Oct-2006 |
|---|---|---|---|
| Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Sep-2006 |
| Tested by: | Hewlett-Packard Company | Software Availability: | Nov-2006 |
| Hardware | |
|---|---|
| CPU Name: | Dual-Core Intel Itanium 2 9050 |
| CPU Characteristics: | 1.6GHz/24MB, 400MHz FSB |
| CPU MHz: | 1600 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 4 chips, 2 cores/chip |
| CPU(s) orderable: | 1-4 chips |
| Primary Cache: | 16 KB I + 16 KB D on chip per core |
| Secondary Cache: | 1 MB I + 256 KB D on chip per core |
| L3 Cache: | 12 MB I+D on chip per core |
| Other Cache: | None |
| Memory: | 32 GB (16x2GB DIMMs) |
| Disk Subsystem: | 36GB 15K RPM SCSI |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux AS release 4 (Update 4) |
| Compiler: | Intel C++ Compiler for Itanium version 9.1 (Build 20060818) |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Multi-user |
| Base Pointers: | 64-bit |
| Peak Pointers: | 64-bit |
| Other Software: | MicroQuill Smartheap 8.0 |

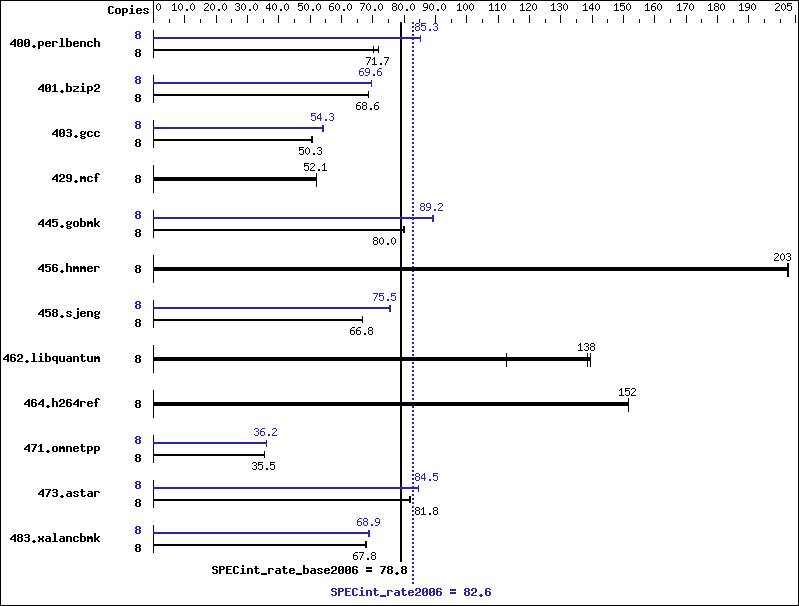

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 1113 | 70.2 | 1089 | 71.7 | 1088 | 71.9 | 8 | 917 | 85.2 | 916 | 85.3 | 917 | 85.3 |
| 401.bzip2 | 8 | 1125 | 68.6 | 1127 | 68.5 | 1124 | 68.7 | 8 | 1109 | 69.6 | 1109 | 69.6 | 1109 | 69.6 |
| 403.gcc | 8 | 1280 | 50.3 | 1273 | 50.6 | 1279 | 50.3 | 8 | 1196 | 53.8 | 1186 | 54.3 | 1184 | 54.4 |
| 429.mcf | 8 | 1405 | 51.9 | 1401 | 52.1 | 1401 | 52.1 | 8 | 1405 | 51.9 | 1401 | 52.1 | 1401 | 52.1 |
| 445.gobmk | 8 | 1049 | 80.0 | 1052 | 79.7 | 1049 | 80.0 | 8 | 942 | 89.1 | 939 | 89.4 | 941 | 89.2 |
| 456.hmmer | 8 | 368 | 203 | 368 | 203 | 369 | 202 | 8 | 368 | 203 | 368 | 203 | 369 | 202 |
| 458.sjeng | 8 | 1450 | 66.8 | 1448 | 66.9 | 1448 | 66.8 | 8 | 1283 | 75.5 | 1282 | 75.5 | 1282 | 75.5 |
| 462.libquantum | 8 | 1197 | 138 | 1189 | 139 | 1472 | 113 | 8 | 1197 | 138 | 1189 | 139 | 1472 | 113 |
| 464.h264ref | 8 | 1169 | 152 | 1169 | 152 | 1169 | 151 | 8 | 1169 | 152 | 1169 | 152 | 1169 | 151 |
| 471.omnetpp | 8 | 1410 | 35.5 | 1410 | 35.5 | 1410 | 35.5 | 8 | 1384 | 36.1 | 1383 | 36.2 | 1383 | 36.2 |
| 473.astar | 8 | 685 | 82.0 | 688 | 81.7 | 687 | 81.8 | 8 | 664 | 84.6 | 664 | 84.5 | 664 | 84.5 |
| 483.xalancbmk | 8 | 814 | 67.9 | 814 | 67.8 | 815 | 67.7 | 8 | 801 | 68.9 | 800 | 69.0 | 803 | 68.7 |
Operating System Notes
stacksize set to unlimited prior to run
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_IA64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -IPF_fp_relaxed -ansi-alias |
C++ benchmarks:
| -fast -IPF_fp_relaxed -ansi-alias -Wl,-z,muldefs /opt/SmartHeap_8/lib/libsmartheapC64.a /opt/SmartHeap_8/lib/libsmartheap64.a |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof_gen(pass 1) -prof_use(pass 2) -fast -IPF_fp_relaxed -ansi-alias |
| 401.bzip2: | Same as 400.perlbench |
| 403.gcc: | Same as 400.perlbench |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | Same as 400.perlbench |
| 456.hmmer: | basepeak = yes |
| 458.sjeng: | Same as 400.perlbench |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | basepeak = yes |
C++ benchmarks:
| 471.omnetpp: | -prof_gen(pass 1) -prof_use(pass 2) -fast -IPF_fp_relaxed -ansi-alias -Wl,-z,muldefs /opt/SmartHeap_8/lib/libsmartheapC64.a /opt/SmartHeap_8/lib/libsmartheap64.a |
| 473.astar: | -prof_gen(pass 1) -prof_use(pass 2) -fast -IPF_fp_relaxed -ansi-alias -inline-factor=150 -Wl,-z,muldefs /opt/SmartHeap_8/lib/libsmartheapC64.a /opt/SmartHeap_8/lib/libsmartheap64.a |
| 483.xalancbmk: | Same as 471.omnetpp |
