SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Sun Microsystems

Sun Fire X4200

CPU2006 license: 6 Test date: Apr-2006
Test sponsor: Sun Microsystems Hardware Availability: May-2006
Tested by: Sun Microsystems Software Availability: Jul-2006

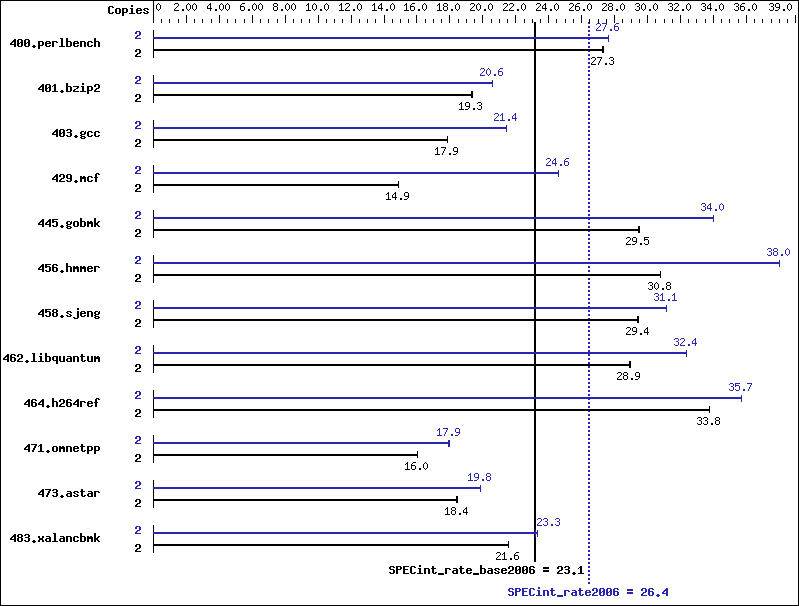

Benchmark results graph
Hardware
CPU Name: AMD Opteron 256
CPU Characteristics:
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 2 cores, 2 chips, 1 core/chip
CPU(s) orderable: 1-2 chips
Primary Cache: 64 KB I + 64 KB D on chip per chip
Secondary Cache: 1 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 16 GB (8x2 GB, PC3200 CL3 DDR ECC Reg)
Disk Subsystem: SAS,36GB,10K RPM
Other Hardware: None
Software
Operating System: Solaris 10 1/06
Compiler: Sun Studio 11 with patch 120759-06
Auto Parallel: No
File System: ufs
System State: Default
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 2 715 27.3 716 27.3 716 27.3 2 707 27.6 707 27.7 707 27.6
401.bzip2 2 996 19.4 998 19.3 999 19.3 2 938 20.6 938 20.6 938 20.6
403.gcc 2 901 17.9 902 17.9 901 17.9 2 751 21.4 751 21.4 751 21.4
429.mcf 2 1228 14.9 1227 14.9 1227 14.9 2 742 24.6 742 24.6 742 24.6
445.gobmk 2 712 29.5 712 29.5 712 29.5 2 617 34.0 617 34.0 617 34.0
456.hmmer 2 606 30.8 606 30.8 607 30.8 2 491 38.0 491 38.0 491 38.0
458.sjeng 2 823 29.4 822 29.4 822 29.5 2 777 31.1 776 31.2 777 31.1
462.libquantum 2 1432 28.9 1433 28.9 1433 28.9 2 1280 32.4 1281 32.3 1281 32.4
464.h264ref 2 1310 33.8 1310 33.8 1310 33.8 2 1239 35.7 1240 35.7 1240 35.7
471.omnetpp 2 780 16.0 780 16.0 780 16.0 2 696 17.9 698 17.9 697 17.9
473.astar 2 760 18.5 761 18.4 762 18.4 2 708 19.8 707 19.9 708 19.8
483.xalancbmk 2 640 21.6 640 21.6 640 21.6 2 593 23.3 596 23.2 592 23.3

Operating System Notes


 Processes were bound to cores using "submit" and "pbind".


 ulimit -s 131072  (shell): increases stack


 /etc/system parameters
    tune_t_fsflushr=1
       Controls how many seconds elapse between runs of the
       page flush daemon, fsflush.
    autoup=900
       Causes pages older than the listed number of seconds to
       be written by fsflush.

Platform Notes


 Default BIOS settings were used.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_SOLARIS_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64   -DSPEC_CPU_SOLARIS
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_SOLARIS
464.h264ref:  -DSPEC_CPU_LP64
471.omnetpp:  -DSPEC_CPU_LP64
473.astar:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LP64   -DSPEC_CPU_SOLARIS

Base Optimization Flags

C benchmarks:

 -fast   -xipo=2   -xarch=amd64a

C++ benchmarks:

 -fast   -xipo=2   -xarch=amd64a   -library=stlport4

Base Other Flags

C benchmarks:

 -V

C++ benchmarks:

 -verbose=version

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_SOLARIS_X64
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Peak Optimization Flags

C benchmarks:

400.perlbench:  -fast   -xarch=amd64a
401.bzip2:  ONESTEP   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=2m   -xcrossfile   -xarch=sse2a   -M /usr/lib/ld/map.bssalign
403.gcc:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xbuiltin=%none
429.mcf:  -fast   -xpagesize=2m   -M /usr/lib/ld/map.bssalign
445.gobmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xarch=amd64a   -xrestrict   -xalias_level=strong   -xdepend
456.hmmer:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xarch=amd64a
458.sjeng:  -fast   -xarch=amd64a   -xipo=2   -xprefetch=auto   -xprefetch_level=3   -xpagesize=2m
462.libquantum:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xarch=amd64a   -xipo=2   -xunroll=8
464.h264ref:  -fast   -xarch=amd64a   -xipo=2   -xvector   -xunroll=8   -xalias_level=strong   -xrestrict

C++ benchmarks:

471.omnetpp:  -fast   -xarch=amd64a   -xipo=2   -xprefetch_level=3   -xpagesize=2m   -Qoption ube -fsimple=3   -library=stlport4
473.astar:  -fast   -xarch=amd64a   -xipo=2   -xprefetch_level=3   -xpagesize=2m   -library=stlport4
483.xalancbmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xarch=sse2a   -library=stlport4

Peak Other Flags

C benchmarks:

 -V

C++ benchmarks:

 -verbose=version

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio-Opteron.20090715.02.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio-Opteron.20090715.02.xml.

SPEC and SPECint are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v91.
Report generated on Tue Jul 22 09:56:47 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 24 August 2006.
