| CPU2006 license: | 6 | Test date: | Mar-2006 |
|---|---|---|---|
| Test sponsor: | Sun Microsystems | Hardware Availability: | Nov-2001 |
| Tested by: | Sun Microsystems | Software Availability: | May-2006 |
| Hardware | |
|---|---|
| CPU Name: | UltraSPARC III Cu |
| CPU Characteristics: | |
| CPU MHz: | 900 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 2 chips, 1 core/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 64 KB D on chip per chip |
| Secondary Cache: | 8 MB I+D off chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 2 GB (4-way interleaved) |
| Disk Subsystem: | 1x18GB 10K RPM for system 1x36GB 10K RPM for SPEC |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Solaris 10 1/06 |
| Compiler: | Sun Studio 11 with patch 120760-03 |
| Auto Parallel: | No |
| File System: | ufs |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | Not Applicable |
| Other Software: | None |

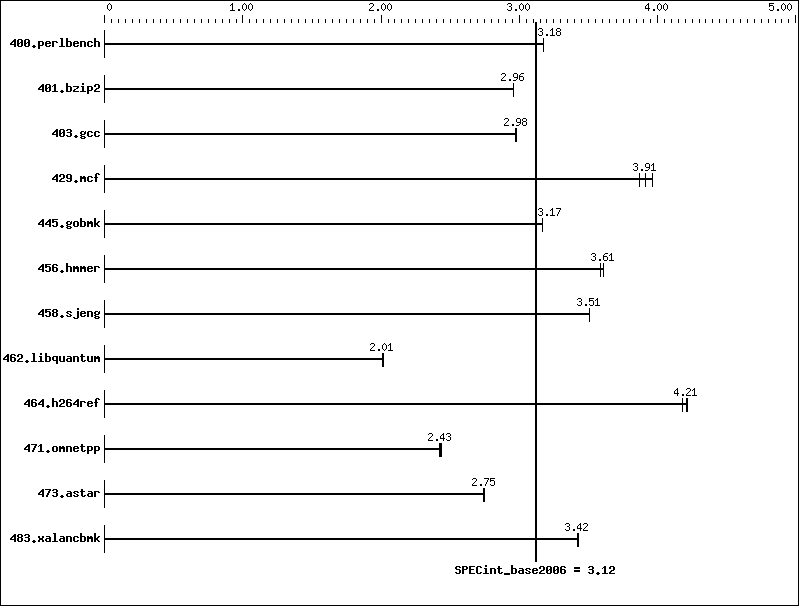

| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 3077 | 3.18 | 3076 | 3.18 | 3080 | 3.17 | ||||||
| 401.bzip2 | 3260 | 2.96 | 3263 | 2.96 | 3260 | 2.96 | ||||||
| 403.gcc | 2711 | 2.97 | 2701 | 2.98 | 2702 | 2.98 | ||||||
| 429.mcf | 2356 | 3.87 | 2331 | 3.91 | 2301 | 3.96 | ||||||
| 445.gobmk | 3310 | 3.17 | 3310 | 3.17 | 3308 | 3.17 | ||||||
| 456.hmmer | 2586 | 3.61 | 2587 | 3.61 | 2601 | 3.59 | ||||||
| 458.sjeng | 3452 | 3.50 | 3449 | 3.51 | 3449 | 3.51 | ||||||
| 462.libquantum | 10318 | 2.01 | 10319 | 2.01 | 10273 | 2.02 | ||||||
| 464.h264ref | 5246 | 4.22 | 5290 | 4.18 | 5259 | 4.21 | ||||||
| 471.omnetpp | 2565 | 2.44 | 2572 | 2.43 | 2582 | 2.42 | ||||||
| 473.astar | 2552 | 2.75 | 2554 | 2.75 | 2565 | 2.74 | ||||||
| 483.xalancbmk | 2014 | 3.43 | 2018 | 3.42 | 2018 | 3.42 | ||||||
Although two CPUs were enabled during testing, the SPEC CPU2006 benchmarks used only one CPU
| 400.perlbench: | -DSPEC_CPU_SOLARIS_SPARC |
| 403.gcc: | -DSPEC_CPU_SOLARIS |
| 462.libquantum: | -DSPEC_CPU_SOLARIS |
| 483.xalancbmk: | -DSPEC_CPU_SOLARIS |
