| CPU2006 license: | 3 | Test date: | Apr-2006 |
|---|---|---|---|
| Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Sep-2005 |
| Tested by: | Hewlett-Packard Company | Software Availability: | May-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon |
| CPU Characteristics: | 3.8GHz, 2MB L2, 800MHz bus |
| CPU MHz: | 3800 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 2 chips, 1 core/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 12 K micro-ops I + 16 KB D on chip per chip |
| Secondary Cache: | 2 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (4x2 GB PC2-3200) |
| Disk Subsystem: | 146GB 10k U320 SCSI |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Ent, SP1 |
| Compiler: | Intel C++ Compiler 9.1 for 32-bit apps, Build 20060323Z Package ID: W_CC_P_9.1.020 Intel Visual Fortran Compiler 9.1 for 32-bit apps, Build 20060323Z Package ID: W_FC_P_9.1.020 Microsoft Visual Studio .NET 2003 (for libraries) MicroQuill SmartHeap Library 7.4 |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | Not Applicable |
| Other Software: | None |

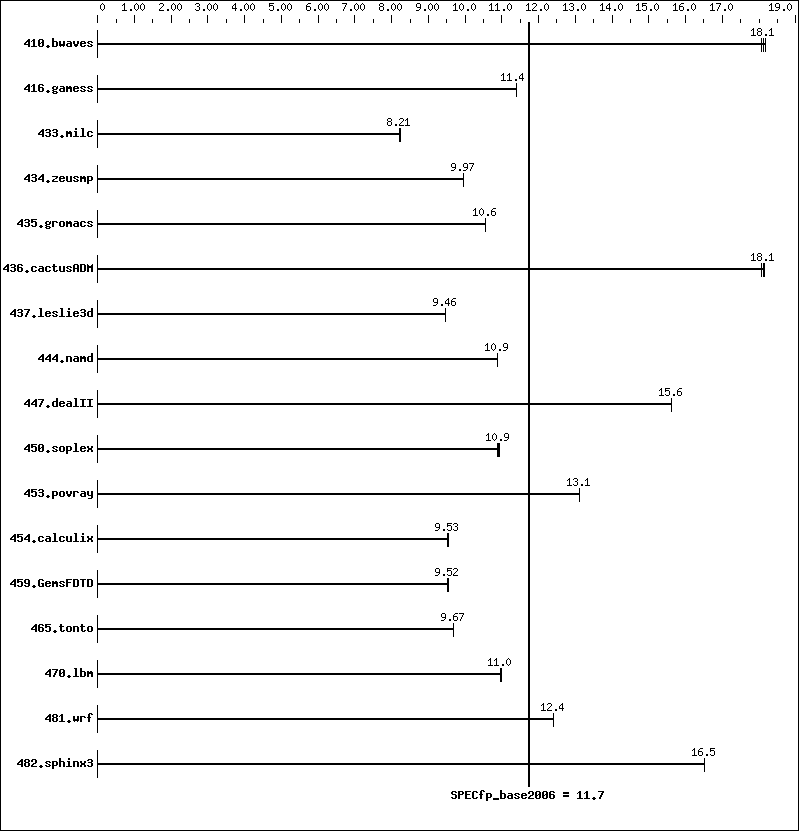

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 748 | 18.2 | 752 | 18.1 | 750 | 18.1 | ||||||
| 416.gamess | 1716 | 11.4 | 1716 | 11.4 | 1716 | 11.4 | ||||||
| 433.milc | 1116 | 8.23 | 1118 | 8.21 | 1118 | 8.21 | ||||||
| 434.zeusmp | 913 | 9.97 | 914 | 9.96 | 913 | 9.97 | ||||||
| 435.gromacs | 677 | 10.6 | 676 | 10.6 | 677 | 10.6 | ||||||
| 436.cactusADM | 659 | 18.1 | 661 | 18.1 | 659 | 18.1 | ||||||
| 437.leslie3d | 993 | 9.46 | 994 | 9.46 | 994 | 9.45 | ||||||
| 444.namd | 737 | 10.9 | 737 | 10.9 | 737 | 10.9 | ||||||
| 447.dealII | 732 | 15.6 | 733 | 15.6 | 733 | 15.6 | ||||||
| 450.soplex | 764 | 10.9 | 764 | 10.9 | 766 | 10.9 | ||||||
| 453.povray | 406 | 13.1 | 406 | 13.1 | 406 | 13.1 | ||||||
| 454.calculix | 865 | 9.53 | 866 | 9.53 | 865 | 9.54 | ||||||
| 459.GemsFDTD | 1113 | 9.54 | 1114 | 9.52 | 1114 | 9.52 | ||||||
| 465.tonto | 1017 | 9.68 | 1017 | 9.67 | 1018 | 9.67 | ||||||
| 470.lbm | 1252 | 11.0 | 1252 | 11.0 | 1252 | 11.0 | ||||||
| 481.wrf | 900 | 12.4 | 901 | 12.4 | 900 | 12.4 | ||||||
| 482.sphinx3 | 1180 | 16.5 | 1179 | 16.5 | 1180 | 16.5 | ||||||
Base Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Base Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Base Optimization Flags
C benchmarks:
| -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -fast /F950000000 -link /FORCE:MULTIPLE |
