| CPU2006 license: | 55 | Test date: | Apr-2006 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | Jun-2005 |
| Tested by: | Dell Inc. | Software Availability: | May-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Pentium 4 670 |
| CPU Characteristics: | |
| CPU MHz: | 3800 |
| FPU: | Integrated |
| CPU(s) enabled: | 1 core, 1 chip, 1 core/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 12 K micro-ops I + 16 KB D on chip per chip |
| Secondary Cache: | 2 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 2 GB (4x512 MB 533MHz CL4 DDR2 SDRAM) |
| Disk Subsystem: | 1 x 80GB SATA 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows XP Professional x64 Edition |
| Compiler: | Intel C++ Compiler 9.1 for IA32 (20060323Z) Intel FORTRAN Compiler 9.1 for IA32 (20060323Z) Microsoft Visual Studio .NET 2003 MicroQuill SmartHeap Library 7.4 |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | Not Applicable |
| Other Software: | None |

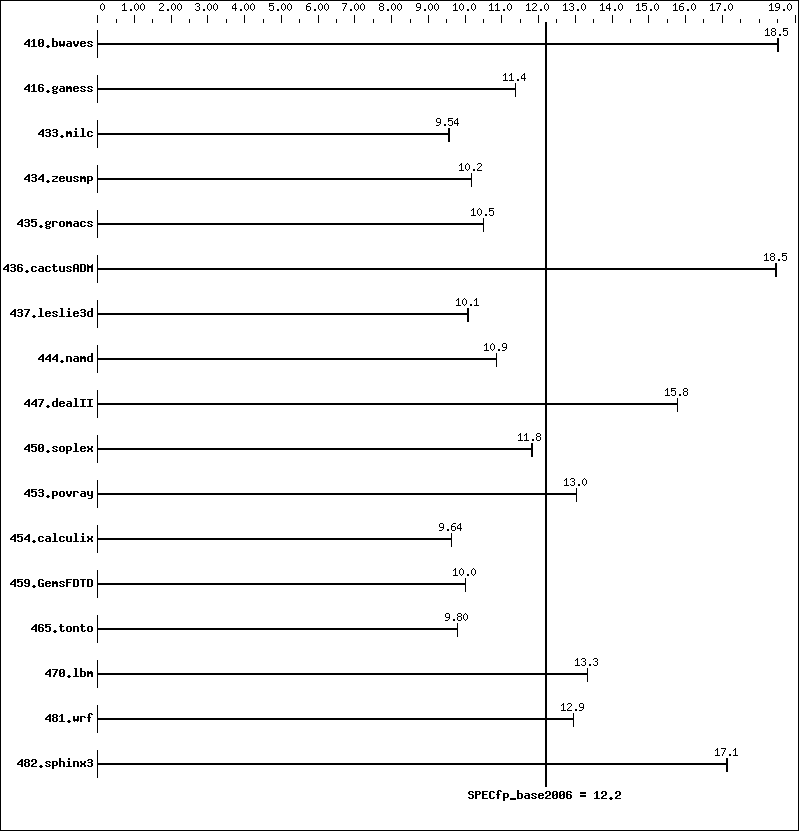

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 734 | 18.5 | 734 | 18.5 | 734 | 18.5 | ||||||
| 416.gamess | 1724 | 11.4 | 1723 | 11.4 | 1724 | 11.4 | ||||||
| 433.milc | 962 | 9.54 | 958 | 9.58 | 962 | 9.54 | ||||||
| 434.zeusmp | 894 | 10.2 | 894 | 10.2 | 894 | 10.2 | ||||||
| 435.gromacs | 679 | 10.5 | 679 | 10.5 | 679 | 10.5 | ||||||
| 436.cactusADM | 647 | 18.5 | 647 | 18.5 | 647 | 18.5 | ||||||
| 437.leslie3d | 932 | 10.1 | 933 | 10.1 | 933 | 10.1 | ||||||
| 444.namd | 739 | 10.9 | 739 | 10.9 | 739 | 10.8 | ||||||
| 447.dealII | 725 | 15.8 | 724 | 15.8 | 725 | 15.8 | ||||||
| 450.soplex | 705 | 11.8 | 706 | 11.8 | 706 | 11.8 | ||||||
| 453.povray | 409 | 13.0 | 409 | 13.0 | 409 | 13.0 | ||||||
| 454.calculix | 856 | 9.64 | 856 | 9.64 | 856 | 9.64 | ||||||
| 459.GemsFDTD | 1059 | 10.0 | 1060 | 10.0 | 1060 | 10.0 | ||||||
| 465.tonto | 1004 | 9.80 | 1004 | 9.80 | 1005 | 9.80 | ||||||
| 470.lbm | 1031 | 13.3 | 1031 | 13.3 | 1031 | 13.3 | ||||||
| 481.wrf | 863 | 12.9 | 863 | 12.9 | 863 | 12.9 | ||||||
| 482.sphinx3 | 1137 | 17.1 | 1139 | 17.1 | 1137 | 17.1 | ||||||
Base Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Base Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Base Optimization Flags
C benchmarks:
| -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -fast /F950000000 -link /FORCE:MULTIPLE |
