SPEC® ACCEL™ OMP Result

Copyright 2015-2024 Standard Performance Evaluation Corporation

Supermicro

Intel Xeon Platinum 8592+

GPU SuperServer SYS-741GE-TNRT

SPECaccel_omp_base = 19.1

SPECaccel_omp_peak = 21.2

ACCEL license: 6569 Test date: Jan-2024
Test sponsor: Supermicro Hardware Availability: Dec-2023
Tested by: Supermicro Software Availability: Oct-2023

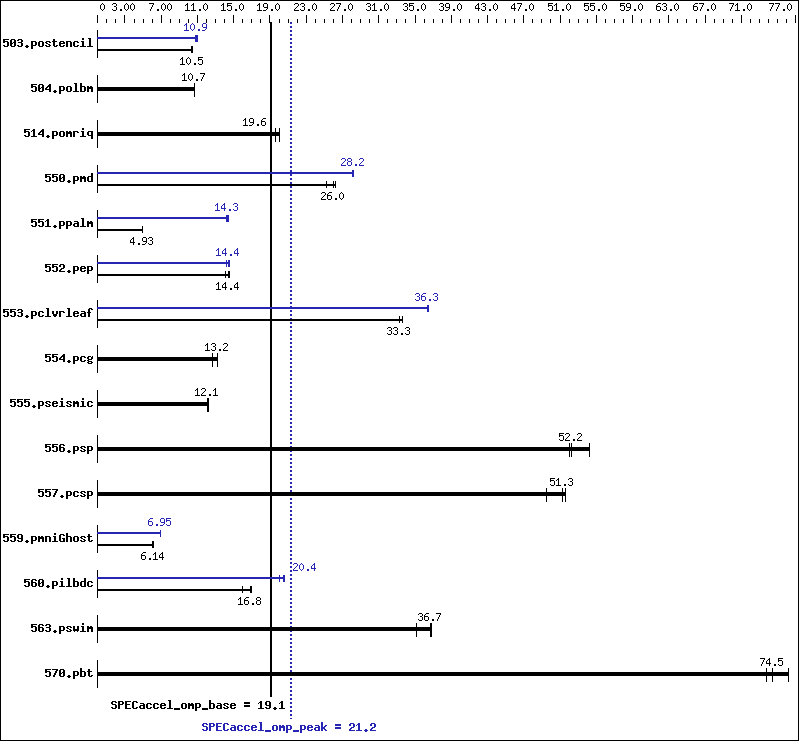

Benchmark results graph
Hardware
CPU Name: Intel Xeon Platinum 8592+
CPU Characteristics: Intel Turbo Boost Technology up to 3.90 GHz
CPU MHz: 1900
CPU MHz Maximum: 3900
FPU: Integrated
CPU(s) enabled: 128 cores, 2 chips, 64 cores/chip, 2 threads/core
CPU(s) orderable: 2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
L3 Cache: 320 MB I+D on chip per chip
Other Cache: None
Memory: 1 TB (16 x 64 GB 2Rx4 PC5-5600B-R)
Disk Subsystem: 1 x 512 GB NVMe SSD
Other Hardware: None
Accelerator
Accel Model Name: Intel Xeon Platinum 8592+
Accel Vendor: Intel
Accel Name: Intel Xeon Platinum 8592+
Type of Accel: CPU
Accel Connection: N/A
Does Accel Use ECC: Yes
Accel Description: 2 x Intel Xeon Platinum 8592+
Accel Driver: N/A
Software
Operating System: SUSE Linux Enterprise Server 15 SP5
Kernel 5.14.21-150500.53-default
Compiler: C/C++/Fortran: Version 2024.0.0.20231017 of Intel
oneAPI DPC++/C++
File System: xfs
System State: Run-level 3 (multi-user)
Other Software: None

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
503.postencil 10.4   10.5   10.5   10.3   10.4   10.5   9.95  11.0   10.0   10.9   10.1   10.8
504.polbm 11.4   10.7   11.4   10.7   11.5   10.7   11.4   10.7   11.4   10.7   11.5   10.7
514.pomriq 31.7   19.6   31.7   19.6   31.0   20.0   31.7   19.6   31.7   19.6   31.0   20.0
550.pmd 9.19  26.2   9.28  26.0   9.55  25.2   8.53  28.2   8.53  28.3   8.59  28.1
551.ppalm 110     4.93  110     4.92  110     4.95  38.2   14.2   38.1   14.3   37.7   14.4
552.pep 15.9   14.5   16.1   14.4   16.4   14.1   16.0   14.4   15.8   14.6   16.3   14.2
553.pclvrleaf 34.3   33.3   34.0   33.6   34.3   33.3   31.5   36.3   31.4   36.5   31.5   36.3
554.pcg 26.3   12.7   25.3   13.2   25.3   13.2   26.3   12.7   25.3   13.2   25.3   13.2
555.pseismic 23.2   12.1   23.2   12.1   23.1   12.2   23.2   12.1   23.2   12.1   23.1   12.2
556.psp 15.7   52.2   15.1   54.3   15.7   52.1   15.7   52.2   15.1   54.3   15.7   52.1
557.pcsp 16.7   51.3   17.3   49.6   16.6   51.7   16.7   51.3   17.3   49.6   16.6   51.7
559.pmniGhost 64.7   6.14  64.1   6.20  66.2   6.00  57.1   6.95  57.1   6.95  57.0   6.96
560.pilbdc 38.8   16.8   40.8   16.0   38.4   17.0   31.9   20.4   31.7   20.6   32.6   20.0
563.pswim 4.33  36.7   4.31  36.9   4.53  35.1   4.33  36.7   4.31  36.9   4.53  35.1
570.pbt 10.6   73.8   10.5   74.5   10.2   76.2   10.6   73.8   10.5   74.5   10.2   76.2

Platform Notes

 Sysinfo program /home/accel/Docs/sysinfo
 $Rev: 6965 $ $Date:: 2015-04-21 #$ c05a7f14b1b1765e3fe1df68447e8a35
 running on 135-172-248 Mon Jan  8 18:52:07 2024

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/accel/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : INTEL(R) XEON(R) PLATINUM 8592+
       2 "physical id"s (chips)
       256 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 64
       siblings  : 128
       physical 0: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
       22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46
       47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63
       physical 1: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
       22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46
       47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63
    cache size : 327680 KB

 From /proc/meminfo
    MemTotal:       1056415796 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    os-release:
       NAME="SLES"
       VERSION="15-SP5"
       VERSION_ID="15.5"
       PRETTY_NAME="SUSE Linux Enterprise Server 15 SP5"
       ID="sles"
       ID_LIKE="suse"
       ANSI_COLOR="0;32"
       CPE_NAME="cpe:/o:suse:sles:15:sp5"

 uname -a:
    Linux 135-172-248 5.14.21-150500.53-default #1 SMP PREEMPT_DYNAMIC Wed May 10
    07:56:26 UTC 2023 (b630043) x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Jan 4 16:13

 SPEC is set to: /home/accel
    Filesystem     Type  Size  Used Avail Use% Mounted on
    /dev/nvme0n1p2 xfs   475G   71G  404G  15% /
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.

   BIOS American Megatrends International, LLC. 2.1 12/12/2023
   Memory:
    14x SK Hynix HMCG94AGBRA181N 64 GB 2 rank 5600 MT/s
    2x SK Hynix HMCG94AGBRA184N 64 GB 2 rank 5600 MT/s

 (End of data from sysinfo program)

General Notes

=========================================================================
BIOS Setting:
  Power Performance Tuning = BIOS Controls EPB
  ENERGY_PERF_BIAS_CFG Mode = Extreme Performance
  SNC (Sub NUMA) = Enable SNC2 (2-clusters)
  KTI Prefetch = Enable
  DCU Streamer Prefetcher = Disable
  LLC Dead Line Alloc = Disable
  Stale AtoS = Disable
=========================================================================
Spectre and Meltdown
  NA: The test sponsor attests, as of date of publication, the CVE-2017-5754 (Meltdown)
  is mitigated in the system as tested and documented.
  Yes: The test sponsor attests, as of date of publication, the CVE-2017-5753 (Spectre variant 1)
  is mitigated in the system as tested and documented.
  Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2)
  is mitigated in the system as tested and documented.
=========================================================================
OS tunning:
  Stack size set to unlimited using "ulimit -s unlimited"
=========================================================================
IPMI setting:
  Fan Mode: Full Speed

Base Compiler Invocation

C benchmarks:

 icx

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icx   ifort

Base Portability Flags

503.postencil:  -DSPEC_USE_INNER_SIMD
504.polbm:  -DSPEC_USE_INNER_SIMD
514.pomriq:  -DSPEC_USE_INNER_SIMD
550.pmd:  -DSPEC_USE_INNER_SIMD
551.ppalm:  -DSPEC_USE_INNER_SIMD
552.pep:  -DSPEC_USE_INNER_SIMD
553.pclvrleaf:  -DSPEC_USE_INNER_SIMD
554.pcg:  -DSPEC_USE_INNER_SIMD
555.pseismic:  -DSPEC_USE_INNER_SIMD
556.psp:  -DSPEC_USE_INNER_SIMD
557.pcsp:  -DSPEC_USE_INNER_SIMD
559.pmniGhost:  -DSPEC_USE_INNER_SIMD   -nofor-main
560.pilbdc:  -DSPEC_USE_INNER_SIMD
563.pswim:  -DSPEC_USE_INNER_SIMD
570.pbt:  -DSPEC_USE_INNER_SIMD

Base Optimization Flags

C benchmarks:

 -qopenmp   -Ofast   -xCORE-AVX512   -qopt-zmm-usage=high   -fimf-precision=low:exp,sin,cos,sincos,log   -qopt-multiple-gather-scatter-by-shuffles

Fortran benchmarks:

 -qopenmp   -Ofast   -xCORE-AVX512   -qopt-zmm-usage=high   -fimf-precision=low:exp,sin,cos,sincos,log   -qopt-multiple-gather-scatter-by-shuffles

Benchmarks using both Fortran and C:

 -qopenmp   -Ofast   -xCORE-AVX512   -qopt-zmm-usage=high   -fimf-precision=low:exp,sin,cos,sincos,log   -qopt-multiple-gather-scatter-by-shuffles

Peak Compiler Invocation

C benchmarks:

 icx

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icx   ifort

Peak Portability Flags

503.postencil:  -DSPEC_USE_INNER_SIMD
504.polbm:  -DSPEC_USE_INNER_SIMD
514.pomriq:  -DSPEC_USE_INNER_SIMD
550.pmd:  -DSPEC_USE_INNER_SIMD
551.ppalm:  -DSPEC_USE_INNER_SIMD   -DSPEC_HOST_FFTW3
552.pep:  -DSPEC_USE_INNER_SIMD
553.pclvrleaf:  -DSPEC_USE_INNER_SIMD
554.pcg:  -DSPEC_USE_INNER_SIMD
555.pseismic:  -DSPEC_USE_INNER_SIMD
556.psp:  -DSPEC_USE_INNER_SIMD
557.pcsp:  -DSPEC_USE_INNER_SIMD
559.pmniGhost:  -DSPEC_USE_INNER_SIMD   -nofor-main
560.pilbdc:  -DSPEC_USE_INNER_SIMD
563.pswim:  -DSPEC_USE_INNER_SIMD
570.pbt:  -DSPEC_USE_INNER_SIMD

Peak Optimization Flags

C benchmarks:

503.postencil:  -qopenmp   -Ofast   -xCORE-AVX512   -qopt-zmm-usage=high   -fimf-precision=low:exp,sin,cos,sincos,log   -qopt-multiple-gather-scatter-by-shuffles
504.polbm:  basepeak = yes
514.pomriq:  basepeak = yes
552.pep:  Same as 503.postencil
554.pcg:  basepeak = yes
557.pcsp:  basepeak = yes
570.pbt:  basepeak = yes

Fortran benchmarks:

550.pmd:  -qopenmp   -Ofast   -xCORE-AVX512   -qopt-zmm-usage=high   -fimf-precision=low:exp,sin,cos,sincos,log   -qopt-multiple-gather-scatter-by-shuffles   -fimf-precision=low   -ip
551.ppalm:  -qopenmp   -Ofast   -xCORE-AVX512   -qopt-zmm-usage=high   -fimf-precision=low:exp,sin,cos,sincos,log   -qopt-multiple-gather-scatter-by-shuffles   -I/opt/fftw-3.3.10/include   -L/opt/fftw-3.3.10/lib
555.pseismic:  basepeak = yes
556.psp:  basepeak = yes
560.pilbdc:  -qopenmp   -Ofast   -xCORE-AVX512   -qopt-zmm-usage=high   -fimf-precision=low:exp,sin,cos,sincos,log   -qopt-multiple-gather-scatter-by-shuffles
563.pswim:  basepeak = yes

Benchmarks using both Fortran and C:

 -qopenmp   -Ofast   -xCORE-AVX512   -qopt-zmm-usage=high   -fimf-precision=low:exp,sin,cos,sincos,log   -qopt-multiple-gather-scatter-by-shuffles

Peak Other Flags

Fortran benchmarks:

551.ppalm:  -lfftw3

The flags files that were used to format this result can be browsed at
https://www.spec.org/accel/flags/Intel-icc2021.2-linux64.20230726.html,
https://www.spec.org/accel/flags/Supermicro-Platform-Settings-V1.2-SPR-revF.html.

You can also download the XML flags sources by saving the following links:
https://www.spec.org/accel/flags/Intel-icc2021.2-linux64.20230726.xml,
https://www.spec.org/accel/flags/Supermicro-Platform-Settings-V1.2-SPR-revF.xml.
