SPEC® ACCEL™ ACC Result

Copyright 2015-2019 Standard Performance Evaluation Corporation

Lenovo Global Technology

NVIDIA Tesla V100-PCIE-16GB

ThinkSystem SR655

SPECaccel_acc_base = 13.2

SPECaccel_acc_peak = Not Run

ACCEL license: 28 Test date: Jul-2019
Test sponsor: Lenovo Global Technology Hardware Availability: Aug-2019
Tested by: Lenovo Global Technology Software Availability: Aug-2019

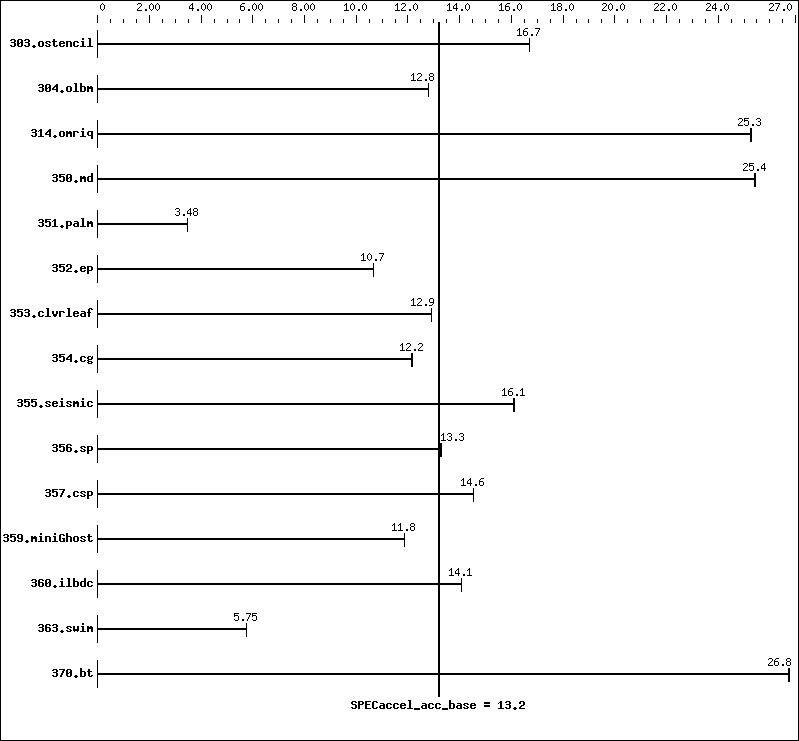

Benchmark results graph
Hardware
CPU Name: AMD EPYC 7742 64-Core
CPU Characteristics: Turbo up to 3.4 GHz
CPU MHz: 2250
CPU MHz Maximum: 3400
FPU: Integrated
CPU(s) enabled: 64 cores, 1 chip, 64 cores/chip, 2 threads/core
CPU(s) orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 256 MB I+D on chip per chip
16 MB shared / 4 cores
Other Cache: None
Memory: 256 GB (8 x 32 GB 2Rx4 PC4-3200AA-R)
Disk Subsystem: 1 x 480 GB SATA 2.5" SSD
Other Hardware: None
Accelerator
Accel Model Name: Tesla V100
Accel Vendor: NVIDIA Corporation
Accel Name: NVIDIA Tesla V100-PCIE-16GB
Type of Accel: GPU
Accel Connection: PCIe 3.0 16x
Does Accel Use ECC: Yes
Accel Description: NVIDIA Tesla V100-PCIE-16GB
Accel Driver: NVIDIA UNIX x86_64 Kernel Module 418.39
Software
Operating System: SUSE Linux Enterprise Server 12 SP4
4.12.14-94.41-default
Compiler: PGI Professional Edition, Release 19.5
File System: xfs
System State: Multi-user, run level 3
Other Software: CUDA 10.1 SDK

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
303.ostencil 8.69  16.7   8.68  16.7   8.69  16.7
304.olbm 35.6   12.8   35.5   12.8   35.5   12.8
314.omriq 37.8   25.3   37.9   25.2   37.8   25.3
350.md 9.91  25.4   9.91  25.4   9.91  25.4
351.palm 106     3.48  107     3.47  106     3.48
352.ep 49.7   10.7   49.7   10.7   49.7   10.7
353.clvrleaf 34.4   12.9   34.4   12.9   34.4   12.9
354.cg 33.5   12.2   33.6   12.1   33.5   12.2
355.seismic 23.0   16.1   23.0   16.1   23.0   16.1
356.sp 20.8   13.3   20.8   13.3   20.8   13.3
357.csp 18.6   14.6   18.6   14.5   18.6   14.6
359.miniGhost 31.1   11.8   31.1   11.8   31.1   11.8
360.ilbdc 26.1   14.1   26.1   14.1   26.1   14.1
363.swim 39.9   5.77  40.1   5.74  40.0   5.75
370.bt 8.33  26.8   8.33  26.8   8.34  26.7

Platform Notes

 Sysinfo program /home/ACCEL1.2/Docs/sysinfo
 $Rev: 6965 $ $Date:: 2015-04-21 #$ c05a7f14b1b1765e3fe1df68447e8a35
 running on bannerrh75 Tue Mar 26 23:45:45 2019

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/accel/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : AMD EPYC 7742 64-Core Processor
       1 "physical id"s (chips)
       64 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 64
       siblings  : 64
       physical 0: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
       22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46
       47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63
    cache size : 512 KB

 From /proc/meminfo
    MemTotal:       264016424 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    SUSE Linux Enterprise Server 12 SP4

 From /etc/*release* /etc/*version*
    SuSE-release:
       SUSE Linux Enterprise Server 12 (x86_64)
       VERSION = 12
       PATCHLEVEL = 4
       # This file is deprecated and will be removed in a future service pack or
       release.
       # Please check /etc/os-release for details about this release.
    os-release:
       NAME="SLES"
       VERSION="12-SP4"
       VERSION_ID="12.4"
       PRETTY_NAME="SUSE Linux Enterprise Server 12 SP4"
       ID="sles"
       ANSI_COLOR="0;32"
       CPE_NAME="cpe:/o:suse:sles:12:sp4"

 uname -a:
    Linux bannerrh75 4.12.14-94.41-default #1 SMP Wed Oct 31 12:25:04 UTC 2018
    (3090901) x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Jul 3 10:26

 SPEC is set to: /home/ACCEL1.2
    Filesystem     Type  Size  Used Avail Use% Mounted on
    /dev/sda4      xfs   245G   72G  174G  30% /home
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.

   BIOS Lenovo CFE101Y 06/22/2019
   Memory:
    8x Samsung M393A4K40DB2-CWE 32 GB 2 rank 3200 MHz
    8x Unknown Unknown

 (End of data from sysinfo program)

General Notes

Yes: The test sponsor attests, as of date of publication,
that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication,
that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication,
that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Base Compiler Invocation

C benchmarks:

 pgcc

Fortran benchmarks:

 pgfortran

Benchmarks using both Fortran and C:

 pgcc   pgfortran

Base Optimization Flags

C benchmarks:

 -fast   -Mfprelaxed   -acc   -ta=tesla:cc70   -ta=tesla:cuda10.1

Fortran benchmarks:

 -fast   -Mfprelaxed   -acc   -ta=tesla:cc70   -ta=tesla:cuda10.1

Benchmarks using both Fortran and C:

353.clvrleaf:  -fast   -Mfprelaxed   -acc   -ta=tesla:cc70   -ta=tesla:cuda10.1
359.miniGhost:  -fast   -Mfprelaxed   -acc   -ta=tesla:cc70   -ta=tesla:cuda10.1   -Mnomain

The flags files that were used to format this result can be browsed at
https://www.spec.org/accel/flags/pgi2017_flags.20190807.html,
https://www.spec.org/accel/flags/Lenovo-SPECACCEL1.2_Platform_Flags.20190807.html.

You can also download the XML flags sources by saving the following links:
https://www.spec.org/accel/flags/pgi2017_flags.20190807.xml,
https://www.spec.org/accel/flags/Lenovo-SPECACCEL1.2_Platform_Flags.20190807.xml.
