SPEC® ACCEL™ OCL Result

Copyright 2015-2019 Standard Performance Evaluation Corporation

Harsper Co.,LTD

NVIDIA GeForce GTX 1080

MG140-G1

SPECaccel_ocl_base = 4.33

SPECaccel_ocl_peak = Not Run

ACCEL license: HPG068A Test date: May-2019
Test sponsor: Harsper Co.,LTD Hardware Availability: Nov 2018
Tested by: Telecommunications Technology Association Software Availability: Nov 2018

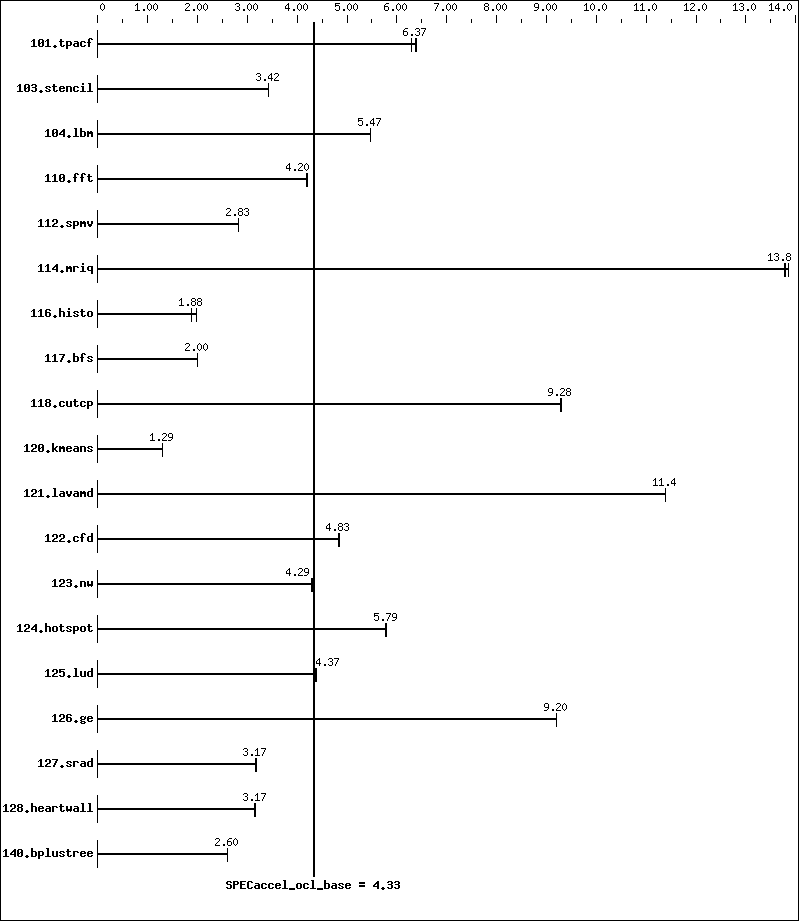

Benchmark results graph
Hardware
CPU Name: Intel Xeon Silver 4110
CPU Characteristics: Intel Turbo Boost Technology off.
Hyper-threading on.
CPU MHz: 2100
CPU MHz Maximum: 2100
FPU: integrated
CPU(s) enabled: 8 cores, 1 chip, 8 cores/chip, 2 threads/core
CPU(s) orderable: 1
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 11 MB I+D on chip per chip
Other Cache: None
Memory: 64 GB (4 x 16 GB 2Rx8 PC4-2666V-R)
Disk Subsystem: 1 x 250GB WDC WDS250G2B0B SATA
2 x 250GB SAMSUNG MZ7WD480HAGM-00003 RAID1
Other Hardware: --
Accelerator
Accel Model Name: GeForce GTX 1080
Accel Vendor: NVIDIA
Accel Name: NVIDIA GeForce GTX 1080
Type of Accel: GPU
Accel Connection: PCIe 3.0 16x
Does Accel Use ECC: No
Accel Description: NVIDIA GeForce GTX 1080, 2560 CUDA cores,
1556 MHz
8.0 GiB GDDR5 RAM
Accel Driver: NVIDIA Driver Version 418.56
Software
Operating System: CentOS Linux release 7.6.1810 (Core)
3.10.0-957.el7.x86_64
Compiler: GCC version 4.8.5 20150623
File System: xfs
System State: Multi-user, run level 3
Other Software: NVIDIA CUDA 10.1

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
101.tpacf 17.0   6.30  16.8   6.37  16.7   6.39
103.stencil 36.5   3.42  36.5   3.42  36.5   3.42
104.lbm 20.5   5.47  20.5   5.47  20.5   5.46
110.fft 26.5   4.19  26.4   4.20  26.4   4.21
112.spmv 52.0   2.83  52.0   2.83  52.0   2.83
114.mriq 7.91  13.8   7.90  13.8   7.87  13.9
116.histo 60.8   1.88  60.8   1.87  57.6   1.98
117.bfs 58.4   2.00  58.5   2.00  58.4   2.00
118.cutcp 10.7   9.27  10.7   9.28  10.6   9.31
120.kmeans 77.5   1.29  77.6   1.29  77.2   1.29
121.lavamd 9.57  11.4   9.58  11.4   9.58  11.4
122.cfd 26.0   4.84  26.1   4.83  26.1   4.83
123.nw 26.8   4.29  26.8   4.29  26.7   4.30
124.hotspot 19.7   5.80  19.8   5.77  19.7   5.79
125.lud 27.2   4.38  27.3   4.37  27.2   4.37
126.ge 16.8   9.20  16.8   9.21  16.9   9.20
127.srad 35.9   3.18  36.0   3.17  35.9   3.17
128.heartwall 33.4   3.17  33.7   3.15  33.5   3.17
140.bplustree 41.4   2.61  41.6   2.60  41.5   2.60

Platform Notes

 Sysinfo program /HPG/accel/Docs/sysinfo
 $Rev: 6965 $ $Date:: 2015-04-21 #$ c05a7f14b1b1765e3fe1df68447e8a35
 running on harsper Mon May 27 14:51:17 2019

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/accel/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) Silver 4110 CPU @ 2.10GHz
       1 "physical id"s (chips)
       16 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 8
       siblings  : 16
       physical 0: cores 0 1 2 3 4 5 6 7
    cache size : 11264 KB

 From /proc/meminfo
    MemTotal:       65398344 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    centos-release: CentOS Linux release 7.6.1810 (Core)
    centos-release-upstream: Derived from Red Hat Enterprise Linux 7.6 (Source)
    os-release:
       NAME="CentOS Linux"
       VERSION="7 (Core)"
       ID="centos"
       ID_LIKE="rhel fedora"
       VERSION_ID="7"
       PRETTY_NAME="CentOS Linux 7 (Core)"
       ANSI_COLOR="0;31"
       CPE_NAME="cpe:/o:centos:centos:7"
    redhat-release: CentOS Linux release 7.6.1810 (Core)
    system-release: CentOS Linux release 7.6.1810 (Core)
    system-release-cpe: cpe:/o:centos:centos:7

 uname -a:
    Linux harsper 3.10.0-957.el7.x86_64 #1 SMP Thu Nov 8 23:39:32 UTC 2018 x86_64
    x86_64 x86_64 GNU/Linux

 run-level 3 May 14 12:57

 SPEC is set to: /HPG/accel
    Filesystem              Type  Size  Used Avail Use% Mounted on
    /dev/mapper/centos-root xfs    50G   24G   27G  47% /
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.

   BIOS American Megatrends Inc. 2.0b 02/26/2018
   Memory:
    2x NO DIMM NO DIMM
    4x Samsung M393A2K43BB1-CTD 16 GB 2 rank 2666 MT/s, configured at 2400 MT/s

 (End of data from sysinfo program)

Base Runtime Environment

C benchmarks:

 OpenCL Platform: NVIDIA CUDA, OpenCL 1.2 CUDA 10.1.133   OpenCL Device #0: GeForce GTX 1080, v 418.56

C++ benchmarks:

 OpenCL Platform: NVIDIA CUDA, OpenCL 1.2 CUDA 10.1.133   OpenCL Device #0: GeForce GTX 1080, v 418.56

Base Compiler Invocation

C benchmarks:

 gcc

C++ benchmarks:

 g++

Base Portability Flags

116.histo:  -DSPEC_LOCAL_MEMORY_HEADROOM=2

Base Optimization Flags

C benchmarks:

 -O2   -I/usr/local/cuda/include   -L/usr/local/cuda/lib64   -lOpenCL

C++ benchmarks:

 -O2   -I/usr/local/cuda/include   -L/usr/local/cuda/lib64   -lOpenCL

The flags file that was used to format this result can be browsed at
https://www.spec.org/accel/flags/gcc_flags.20190605.html.

You can also download the XML flags source by saving the following link:
https://www.spec.org/accel/flags/gcc_flags.20190605.xml.
