SPEC® ACCEL™ OMP Result

Copyright 2015-2019 Standard Performance Evaluation Corporation

Lenovo Global Technology

Intel Xeon Platinum 8280 CPU

ThinkSystem SR650

SPECaccel_omp_base = 6.79

SPECaccel_omp_peak = Not Run

ACCEL license: 16 Test date: Mar-2019
Test sponsor: Lenovo Global Technology Hardware Availability: Apr-2019
Tested by: Lenovo Global Technology Software Availability: Apr-2019

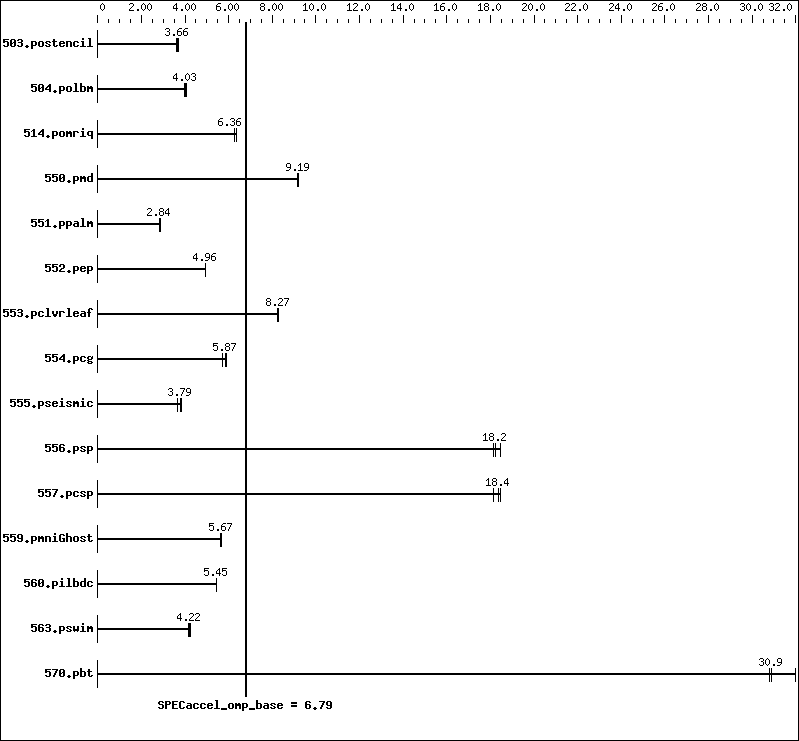

Benchmark results graph
Hardware
CPU Name: (Intel Xeon Platinum 8280 CPU, 2.7 GHz)
CPU Characteristics: Intel Turbo Boost Technology up to 4.0 GHz
CPU MHz: 2700
CPU MHz Maximum: 4000
FPU: Integrated
CPU(s) enabled: 56 cores, 2 chips, 28 cores/chip, 2 threads/core
CPU(s) orderable: 1,2 Chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 38.5 MB I+D on chip per chip
Other Cache: None
Memory: 768 GB (24 x 32 GB 2Rx4 PC4-2933Y-R)
Disk Subsystem: 1 X Lenovo 1 TB SAS 2.5" HDD
Other Hardware: None
Accelerator
Accel Model Name: Intel Xeon Platinum 8280 CPU
Accel Vendor: Intel
Accel Name: Intel Xeon Platinum 8280 CPU
Type of Accel: CPU
Accel Connection: 10.4 GT/s UPI
Does Accel Use ECC: yes
Accel Description: 2 x Intel Xeon Platinum 8280 CPU
Accel Driver: None
Software
Operating System: Red Hat Enterprise Linux Server release 7.6,
kernel 3.10.0.957.el7.x86_64
Compiler: Intel C/C++/Fortran 18.0 Update 3 for Linux
Version 18.0.3 Build 20180210
File System: xfs
System State: Default
Other Software: FFTW 3.3.8

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
503.postencil 29.8  3.66  30.3  3.60  29.4  3.71
504.polbm 30.6  3.99  30.3  4.03  30.1  4.05
514.pomriq 97.3  6.38  98.8  6.29  97.7  6.36
550.pmd 26.2  9.19  26.2  9.21  26.3  9.18
551.ppalm 191    2.84  192    2.83  190    2.86
552.pep 46.6  4.96  46.6  4.96  46.7  4.95
553.pclvrleaf 139    8.25  138    8.27  138    8.27
554.pcg 58.4  5.70  56.6  5.89  56.7  5.87
555.pseismic 74.3  3.79  73.6  3.83  76.8  3.67
556.psp 45.0  18.2   44.3  18.5   44.8  18.2
557.pcsp 46.6  18.4   47.4  18.1   46.7  18.4
559.pmniGhost 70.0  5.67  69.7  5.69  70.5  5.63
560.pilbdc 119    5.46  120    5.43  120    5.45
563.pswim 37.7  4.22  37.6  4.23  38.3  4.16
570.pbt 25.3  30.8   24.4  32.0   25.3  30.9

Submit Notes

The config file option 'submit' was used.

Platform Notes

 Sysinfo program /home/ACCEL1.2/Docs/sysinfo
 $Rev: 6965 $ $Date:: 2015-04-21 #$ c05a7f14b1b1765e3fe1df68447e8a35
 running on slave5 Wed Mar 09 04:13:48 2019

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/accel/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) Platinum 8280 CPU @ 2.70GHz
       2 "physical id"s (chips)
       112 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 28
       siblings  : 56
       physical 0: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24
       25 26 27 28 29 30
       physical 1: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24
       25 26 27 28 29 30
    cache size : 39424 KB

 From /proc/meminfo
    MemTotal:       792031280 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    os-release:
       NAME="Red Hat Enterprise Linux Server"
       VERSION="7.6 (Maipo)"
       ID="rhel"
       ID_LIKE="fedora"
       VARIANT="Server"
       VARIANT_ID="server"
       VERSION_ID="7.6"
       PRETTY_NAME="Red Hat Enterprise Linux Server 7.6 (Maipo)"
    redhat-release: Red Hat Enterprise Linux Server release 7.6 (Maipo)
    system-release: Red Hat Enterprise Linux Server release 7.6 (Maipo)
    system-release-cpe: cpe:/o:redhat:enterprise_linux:7.6:ga:server

 uname -a:
    Linux slave5 3.10.0-957.el7.x86_64 #1 SMP Thu Oct 4 20:48:51 UTC 2018 x86_64
    x86_64 x86_64 GNU/Linux

 run-level 3 Mar 09 16:15

 SPEC is set to: /home/ACCEL1.2
    Filesystem     Type  Size  Used Avail Use% Mounted on
    /dev/sda3      xfs   221G   42G  179G  20% /home
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.

   BIOS Lenovo -[IVE135S-2.10]- 03/08/2019
   Memory:
    24x Samsung M393A4K40CB2-CVF 32 GB 2 rank 2933 MT/s

 (End of data from sysinfo program)

General Notes

Yes: The test sponsor attests, as of date of publication,
that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication,
that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication,
that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Base Compiler Invocation

C benchmarks:

 icc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

503.postencil:  -DSPEC_USE_INNER_SIMD
504.polbm:  -DSPEC_USE_INNER_SIMD
514.pomriq:  -DSPEC_USE_INNER_SIMD
550.pmd:  -DSPEC_USE_INNER_SIMD   -80
551.ppalm:  -DSPEC_USE_INNER_SIMD
552.pep:  -DSPEC_USE_INNER_SIMD
553.pclvrleaf:  -DSPEC_USE_INNER_SIMD
554.pcg:  -DSPEC_USE_INNER_SIMD
555.pseismic:  -DSPEC_USE_INNER_SIMD
556.psp:  -DSPEC_USE_INNER_SIMD
557.pcsp:  -DSPEC_USE_INNER_SIMD
559.pmniGhost:  -DSPEC_USE_INNER_SIMD   -nofor-main
560.pilbdc:  -DSPEC_USE_INNER_SIMD
563.pswim:  -DSPEC_USE_INNER_SIMD
570.pbt:  -DSPEC_USE_INNER_SIMD

Base Optimization Flags

C benchmarks:

 -O3   -xCOMMON-AVX512   -qopenmp   -qopenmp-offload=host

Fortran benchmarks:

 -O3   -xCOMMON-AVX512   -qopenmp   -qopenmp-offload=host

Benchmarks using both Fortran and C:

 -O3   -xCOMMON-AVX512   -qopenmp   -qopenmp-offload=host

The flags files that were used to format this result can be browsed at
https://www.spec.org/accel/flags/Lenovo-SPECACCEL1.2_Platform_Flags.html,
https://www.spec.org/accel/flags/Intel-icc17.0-linux64.20190321.html.

You can also download the XML flags sources by saving the following links:
https://www.spec.org/accel/flags/Lenovo-SPECACCEL1.2_Platform_Flags.xml,
https://www.spec.org/accel/flags/Intel-icc17.0-linux64.20190321.xml.
