Dell (Test Sponsor: Technische Universitaet Dresden) NVIDIA GeForce GTX TITAN Precision T5600 |
SPECaccel_acc_base = 2.38 SPECaccel_acc_energy_base = 2.94 |
|
SPECaccel_acc_peak = Not Run |
| ACCEL license: | 37A | Test date: | Sep-2014 |
|---|---|---|---|
| Test sponsor: | Technische Universitaet Dresden | Hardware Availability: | Feb-2013 |
| Tested by: | Technische Universitaet Dresden | Software Availability: | Aug-2014 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2667 |
| CPU Characteristics: | |
| CPU MHz: | 2900 |
| CPU MHz Maximum: | 3500 |
| FPU: | Integrated |
| CPU(s) enabled: | 6 cores, 1 chip, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 15 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 16 GB (4 x 4 GB 2Rx4 PC3-12800R-9, ECC) |
| Disk Subsystem: | 1 TB SATA disk on Dell PERC H310 PCIe host-based RAID card |
| Other Hardware: | None |
| Accelerator | |
|---|---|
| Accel Model Name: | GeForce GTX TITAN |
| Accel Vendor: | NVIDIA |
| Accel Name: | NVIDIA GeForce GTX TITAN |
| Type of Accel: | GPU |
| Accel Connection: | PCIe 3.0 16x |
| Does Accel Use ECC: | no |
| Accel Description: | NVIDIA GeForce GTX TITAN initial version, 2688 CUDA cores, 837MHz - 876MHz, 6 GB GDDR5 RAM |
| Accel Driver: | NVIDIA UNIX x86_64 Kernel Module 340.32 |
| Software | |
|---|---|
| Operating System: | SLES11 SP3 SUSE Linux Enterprise Server 11 (x86_64) 3.0.101-0.35-default |
| Compiler: | PGI Accelerator Fortran/C/C++ Workstation, Release 14.9 |
| File System: | ext3 |
| System State: | Run level 3 (multi user) |
| Other Software: | -- |
| Power | |
|---|---|
| Power Supply: | 825 W |
| Power Supply Details: | Dell D825EF-00 |
| Max. Power (W): | 360.39 |
| Idle Power (W): | 78.69 |
| Min. Temperature (C): | 23.00 |
| Power Analyzer | |
|---|---|
| Power Analyzer: | Power Analyzer |
| Hardware Vendor: | ZES Zimmer |
| Model: | LMG450 |
| Serial Number: | 07510905 |
| Input Connection: | RS232 via USB-adapter |
| Metrology Institute: | PTB (Physikalisch Technische Bundesanstalt) |
| Calibration By: | ZES Zimmer |
| Calibration Label: | 04300751001 |
| Calibration Date: | 11.05.2013 |
| PTDaemon Version: | 1.6.2 (372e138a; 2013-12-04) |
| Setup Description: | connected to the single power supply that powers the system |
| Current Ranges Used: | 1.2A, 2.5A |
| Voltage Range Used: | 250V |
| Temperature Meter | |
|---|---|
| Temperature Meter: | Temperature Meter |
| Hardware Vendor: | Digi |
| Model: | Watchport/H |
| Serial Number: | W00513713 |
| Input Connection: | USB |
| PTDaemon Version: | 1.6.2 (372e138a; 2013-12-04) |
| Setup Description: | positioned in front of intake fan |

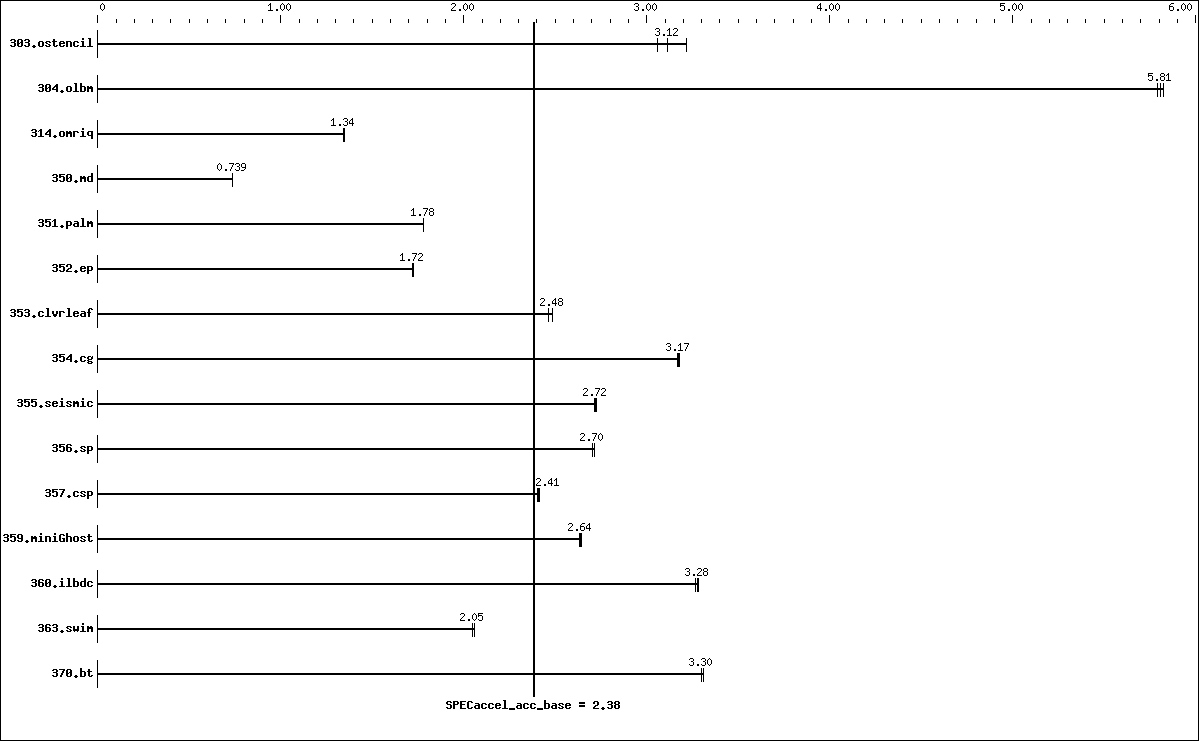

Base Results Table
| Benchmark | Seconds | Ratio | Energy (kJ) |
Maximum Power |
Average Power |
Energy Ratio |
Seconds | Ratio | Energy (kJ) |
Maximum Power |
Average Power |
Energy Ratio |
Seconds | Ratio | Energy (kJ) |
Maximum Power |
Average Power |
Energy Ratio |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||||||
| 303.ostencil | 45.0 | 3.22 | 15.8 | 360 | 351 | 3.35 | 47.4 | 3.06 | 16.0 | 358 | 337 | 3.32 | 46.5 | 3.12 | 15.8 | 358 | 340 | 3.34 |
| 304.olbm | 78.5 | 5.79 | 23.5 | 303 | 299 | 6.65 | 78.3 | 5.81 | 23.4 | 302 | 298 | 6.68 | 78.1 | 5.82 | 23.3 | 302 | 298 | 6.70 |
| 314.omriq | 708 | 1.35 | 216 | 331 | 305 | 1.77 | 712 | 1.34 | 216 | 332 | 303 | 1.77 | 712 | 1.34 | 216 | 333 | 303 | 1.77 |
| 350.md | 341 | 0.739 | 89.2 | 266 | 262 | 1.05 | 341 | 0.739 | 89.2 | 265 | 262 | 1.05 | 341 | 0.739 | 89.2 | 265 | 261 | 1.05 |
| 351.palm | 208 | 1.78 | 43.3 | 219 | 208 | 2.47 | 208 | 1.78 | 43.0 | 218 | 207 | 2.48 | 208 | 1.78 | 43.0 | 218 | 207 | 2.49 |
| 352.ep | 308 | 1.72 | 73.3 | 240 | 238 | 2.24 | 308 | 1.72 | 73.5 | 241 | 239 | 2.24 | 308 | 1.72 | 73.3 | 240 | 238 | 2.24 |
| 353.clvrleaf | 179 | 2.48 | 55.4 | 314 | 309 | 2.85 | 179 | 2.48 | 55.3 | 315 | 309 | 2.85 | 181 | 2.46 | 55.4 | 313 | 307 | 2.84 |
| 354.cg | 129 | 3.17 | 35.5 | 324 | 276 | 3.94 | 129 | 3.17 | 35.6 | 325 | 277 | 3.93 | 128 | 3.18 | 35.6 | 327 | 277 | 3.93 |
| 355.seismic | 136 | 2.72 | 41.0 | 321 | 302 | 3.15 | 136 | 2.72 | 40.9 | 322 | 301 | 3.15 | 136 | 2.71 | 40.9 | 322 | 300 | 3.16 |
| 356.sp | 102 | 2.71 | 28.4 | 285 | 279 | 3.27 | 102 | 2.70 | 28.5 | 285 | 279 | 3.26 | 102 | 2.70 | 28.4 | 284 | 278 | 3.26 |
| 357.csp | 112 | 2.41 | 28.9 | 266 | 258 | 3.05 | 112 | 2.40 | 29.1 | 267 | 259 | 3.02 | 112 | 2.41 | 29.0 | 265 | 259 | 3.04 |
| 359.miniGhost | 140 | 2.63 | 38.0 | 315 | 271 | 3.12 | 140 | 2.64 | 38.1 | 315 | 273 | 3.12 | 140 | 2.64 | 38.1 | 313 | 273 | 3.12 |
| 360.ilbdc | 112 | 3.28 | 35.6 | 332 | 319 | 3.65 | 112 | 3.27 | 35.5 | 334 | 316 | 3.66 | 112 | 3.28 | 35.3 | 330 | 316 | 3.68 |
| 363.swim | 112 | 2.05 | 27.4 | 252 | 244 | 2.77 | 112 | 2.05 | 27.5 | 253 | 245 | 2.76 | 112 | 2.06 | 27.4 | 253 | 245 | 2.77 |
| 370.bt | 67.3 | 3.31 | 18.8 | 284 | 279 | 4.02 | 67.6 | 3.30 | 18.7 | 284 | 277 | 4.04 | 67.6 | 3.30 | 18.7 | 283 | 276 | 4.04 |
Operating System Notes
continuously upgraded via SLES update manager
Platform Notes
Sysinfo program /home/alex/accel-1.0/Docs/sysinfo $Rev: 6874 $ $Date:: 2013-11-20 #$ 0953404ef7e75a5f9bbb534c6de3f831 running on playground Mon Sep 15 12:07:51 2014 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/accel/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2667 0 @ 2.90GHz 1 "physical id"s (chips) 12 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 6 siblings : 12 physical 0: cores 0 1 2 3 4 5 cache size : 15360 KB From /proc/meminfo MemTotal: 16256140 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d SUSE Linux Enterprise Server 11 (x86_64) From /etc/*release* /etc/*version* SuSE-release: SUSE Linux Enterprise Server 11 (x86_64) VERSION = 11 PATCHLEVEL = 3 uname -a: Linux playground 3.0.101-0.35-default #1 SMP Wed Jul 9 11:43:04 UTC 2014 (c36987d) x86_64 x86_64 x86_64 GNU/Linux run-level 3 Sep 15 10:37 last=S SPEC is set to: /home/alex/accel-1.0 Filesystem Type Size Used Avail Use% Mounted on /dev/sda3 ext3 866G 82G 740G 10% /home Cannot run dmidecode; consider saying 'chmod +s /usr/sbin/dmidecode' (End of data from sysinfo program)
Base Compiler Invocation
C benchmarks:
| pgcc |
Fortran benchmarks:
| pgfortran |
Benchmarks using both Fortran and C:
| pgcc pgfortran |
Base Optimization Flags
C benchmarks:
| -acc -fast -ta=tesla |
Fortran benchmarks:
| -acc -fast -ta=tesla |
Benchmarks using both Fortran and C:
| 353.clvrleaf: | -acc -fast -ta=tesla |
| 359.miniGhost: | -acc -fast -ta=tesla -Mnomain |
