Dell (Test Sponsor: Technische Universitaet Dresden) NVIDIA Tesla K20c Precision T5600 |
SPECaccel_acc_base = 1.68 SPECaccel_acc_energy_base = 2.84 |
|
SPECaccel_acc_peak = Not Run |
| ACCEL license: | 37A | Test date: | Sep-2014 |
|---|---|---|---|
| Test sponsor: | Technische Universitaet Dresden | Hardware Availability: | Apr-2013 |
| Tested by: | Technische Universitaet Dresden | Software Availability: | Aug-2014 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2667 |
| CPU Characteristics: | |
| CPU MHz: | 2900 |
| CPU MHz Maximum: | 3500 |
| FPU: | Integrated |
| CPU(s) enabled: | 6 cores, 1 chip, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 15 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 16 GB (4 x 4 GB 2Rx4 PC3-12800R-9, ECC) |
| Disk Subsystem: | 1 TB SATA disk on Dell PERC H310 PCIe host-based RAID card |
| Other Hardware: | None |
| Accelerator | |
|---|---|
| Accel Model Name: | Tesla K20c |
| Accel Vendor: | NVIDIA |
| Accel Name: | NVIDIA Tesla K20c |
| Type of Accel: | GPU |
| Accel Connection: | PCIe 2.0 16x |
| Does Accel Use ECC: | yes |
| Accel Description: | NVIDIA Tesla K20c GPU, 2496 CUDA cores, 706MHz, 5 GB GDDR5 RAM |
| Accel Driver: | NVIDIA UNIX x86_64 Kernel Module 340.32 |
| Software | |
|---|---|
| Operating System: | SLES11 SP3 SUSE Linux Enterprise Server 11 (x86_64) 3.0.101-0.35-default |
| Compiler: | PGI Accelerator Fortran/C/C++ Workstation, Release 13.9 |
| File System: | ext3 |
| System State: | Run level 3 (multi user) |
| Other Software: | NVIDIA CUDA 6.0.9, driver 340.32 |
| Power | |
|---|---|
| Power Supply: | 825 W |
| Power Supply Details: | Dell D825EF-00 |
| Max. Power (W): | 246.79 |
| Idle Power (W): | 78.68 |
| Min. Temperature (C): | 23.06 |
| Power Analyzer | |
|---|---|
| Power Analyzer: | Power Analyzer |
| Hardware Vendor: | ZES Zimmer |
| Model: | LMG450 |
| Serial Number: | 07510905 |
| Input Connection: | RS232 via USB-adapter |
| Metrology Institute: | PTB (Physikalisch Technische Bundesanstalt) |
| Calibration By: | ZES Zimmer |
| Calibration Label: | 04300751001 |
| Calibration Date: | 11.05.2013 |
| PTDaemon Version: | 1.6.2 (372e138a; 2013-12-04) |
| Setup Description: | connected to the single power supply that powers the system |
| Current Ranges Used: | 1.2A, 2.5A |
| Voltage Range Used: | 250V |
| Temperature Meter | |
|---|---|
| Temperature Meter: | Temperature Meter |
| Hardware Vendor: | Digi |
| Model: | Watchport/H |
| Serial Number: | W00513713 |
| Input Connection: | USB |
| PTDaemon Version: | 1.6.2 (372e138a; 2013-12-04) |
| Setup Description: | positioned in front of intake fan |

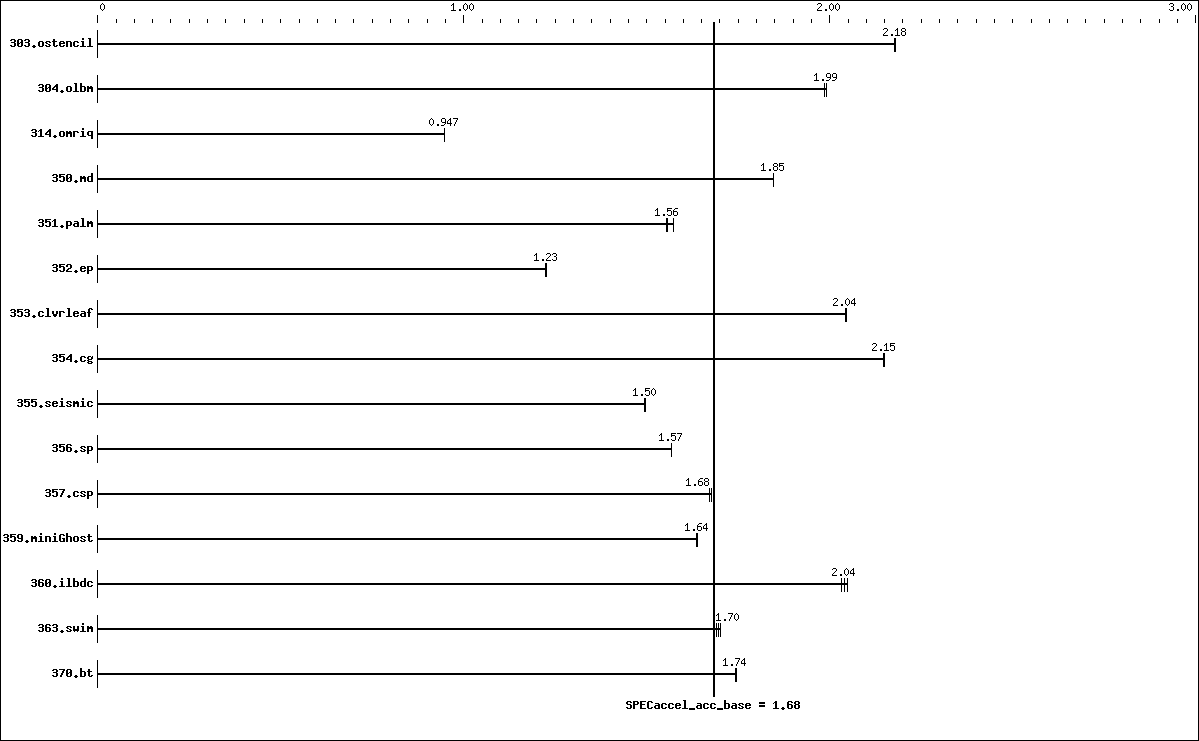

Base Results Table
| Benchmark | Seconds | Ratio | Energy (kJ) |
Maximum Power |
Average Power |
Energy Ratio |
Seconds | Ratio | Energy (kJ) |
Maximum Power |
Average Power |
Energy Ratio |
Seconds | Ratio | Energy (kJ) |
Maximum Power |
Average Power |
Energy Ratio |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||||||
| 303.ostencil | 66.6 | 2.18 | 16.0 | 244 | 240 | 3.31 | 66.5 | 2.18 | 16.2 | 246 | 244 | 3.26 | 66.5 | 2.18 | 16.2 | 247 | 243 | 3.27 |
| 304.olbm | 229 | 1.99 | 46.3 | 206 | 202 | 3.37 | 229 | 1.99 | 46.5 | 207 | 203 | 3.36 | 229 | 1.99 | 46.5 | 207 | 204 | 3.36 |
| 314.omriq | 1009 | 0.947 | 223 | 223 | 221 | 1.71 | 1010 | 0.947 | 225 | 223 | 222 | 1.70 | 1009 | 0.947 | 224 | 223 | 222 | 1.71 |
| 350.md | 137 | 1.85 | 31.1 | 229 | 228 | 3.02 | 137 | 1.85 | 31.3 | 231 | 229 | 3.00 | 137 | 1.85 | 31.2 | 230 | 229 | 3.01 |
| 351.palm | 238 | 1.56 | 40.8 | 179 | 172 | 2.62 | 238 | 1.56 | 41.1 | 180 | 173 | 2.60 | 235 | 1.57 | 40.4 | 179 | 172 | 2.65 |
| 352.ep | 433 | 1.23 | 75.1 | 176 | 174 | 2.19 | 433 | 1.22 | 75.9 | 178 | 175 | 2.17 | 433 | 1.23 | 75.6 | 178 | 175 | 2.17 |
| 353.clvrleaf | 218 | 2.04 | 48.5 | 227 | 223 | 3.25 | 217 | 2.05 | 48.7 | 229 | 224 | 3.24 | 218 | 2.04 | 48.7 | 228 | 223 | 3.24 |
| 354.cg | 190 | 2.15 | 38.6 | 219 | 203 | 3.63 | 190 | 2.15 | 38.8 | 220 | 204 | 3.61 | 190 | 2.15 | 38.8 | 220 | 204 | 3.60 |
| 355.seismic | 247 | 1.50 | 47.3 | 199 | 191 | 2.73 | 248 | 1.49 | 47.6 | 199 | 192 | 2.71 | 247 | 1.50 | 47.6 | 199 | 193 | 2.71 |
| 356.sp | 176 | 1.57 | 34.8 | 200 | 198 | 2.66 | 176 | 1.57 | 35.1 | 201 | 199 | 2.64 | 176 | 1.57 | 35.0 | 201 | 199 | 2.65 |
| 357.csp | 161 | 1.67 | 30.7 | 195 | 190 | 2.86 | 161 | 1.68 | 30.9 | 195 | 192 | 2.85 | 161 | 1.68 | 30.9 | 196 | 192 | 2.85 |
| 359.miniGhost | 225 | 1.64 | 43.7 | 211 | 194 | 2.72 | 225 | 1.64 | 43.9 | 212 | 195 | 2.71 | 225 | 1.64 | 43.9 | 211 | 195 | 2.71 |
| 360.ilbdc | 179 | 2.05 | 38.2 | 220 | 213 | 3.40 | 181 | 2.03 | 38.5 | 220 | 213 | 3.37 | 180 | 2.04 | 38.4 | 220 | 214 | 3.38 |
| 363.swim | 136 | 1.69 | 26.2 | 195 | 193 | 2.89 | 136 | 1.70 | 26.2 | 196 | 193 | 2.90 | 135 | 1.70 | 26.1 | 195 | 193 | 2.91 |
| 370.bt | 128 | 1.74 | 24.6 | 194 | 192 | 3.08 | 128 | 1.74 | 24.6 | 194 | 192 | 3.07 | 128 | 1.74 | 24.5 | 194 | 192 | 3.08 |
Operating System Notes
continuously upgraded via SLES update manager
Platform Notes
Sysinfo program /home/alex/accel-1.0/Docs/sysinfo $Rev: 6874 $ $Date:: 2013-11-20 #$ 0953404ef7e75a5f9bbb534c6de3f831 running on playground Fri Sep 12 10:01:55 2014 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/accel/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2667 0 @ 2.90GHz 1 "physical id"s (chips) 12 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 6 siblings : 12 physical 0: cores 0 1 2 3 4 5 cache size : 15360 KB From /proc/meminfo MemTotal: 16256140 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d SUSE Linux Enterprise Server 11 (x86_64) From /etc/*release* /etc/*version* SuSE-release: SUSE Linux Enterprise Server 11 (x86_64) VERSION = 11 PATCHLEVEL = 3 uname -a: Linux playground 3.0.101-0.35-default #1 SMP Wed Jul 9 11:43:04 UTC 2014 (c36987d) x86_64 x86_64 x86_64 GNU/Linux run-level 3 Sep 8 11:37 last=S SPEC is set to: /home/alex/accel-1.0 Filesystem Type Size Used Avail Use% Mounted on /dev/sda3 ext3 866G 82G 740G 10% /home Cannot run dmidecode; consider saying 'chmod +s /usr/sbin/dmidecode' (End of data from sysinfo program)
